Buick Encore: Buick Wheel Alignment Specifications
Buick Encore 2012-2019 Service Manual / Suspension & Steering / Buick Wheel Alignment Specifications
WHEEL ALIGNMENT SPECIFICATIONS
ENCLAVE

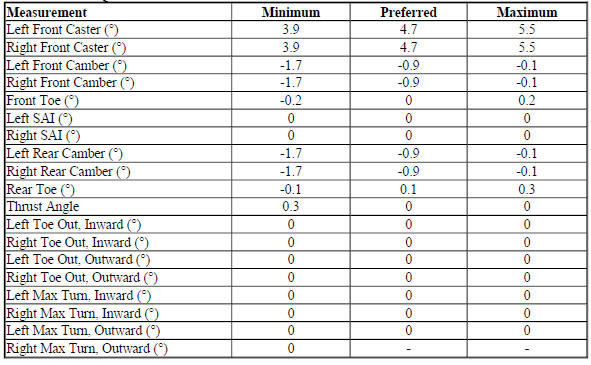

ENCLAVE w/o QPR
.jpg)

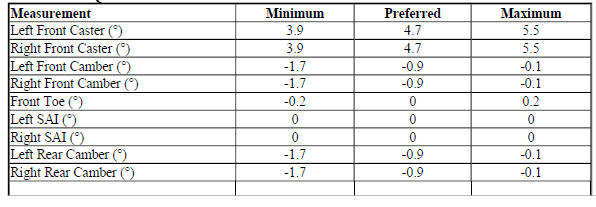

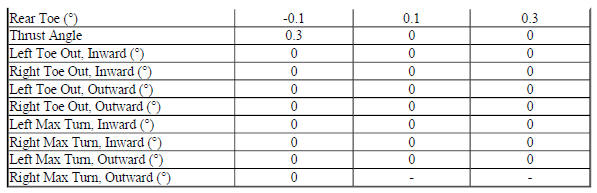

ENCLAVE w/QPR
.jpg)
.jpg)
ENCORE

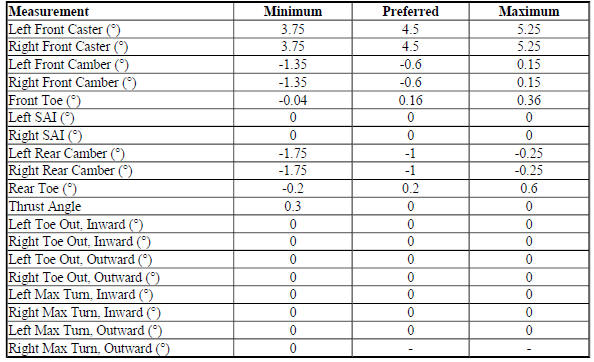

ENCORE All Models
.jpg)
LACROSSE

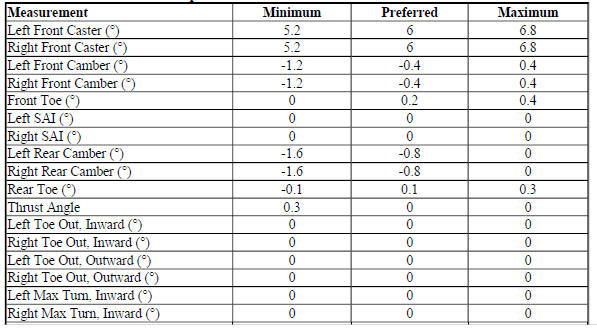

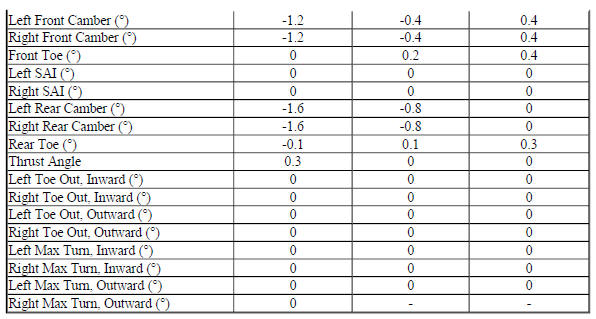

LaCROSSE GNA Base Suspension
.jpg)
.jpg)
LaCROSSE GNB Performance Suspension
.jpg)
REGAL

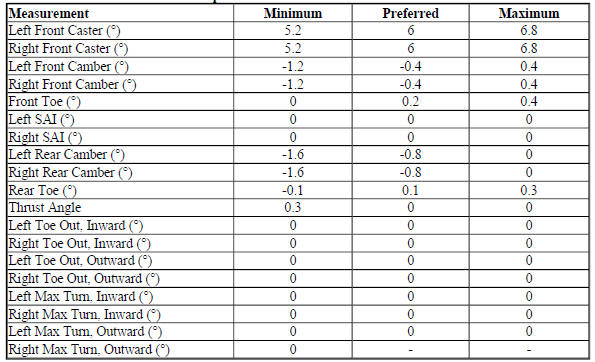

REGAL GNA Base Suspension
.jpg)
REGAL GNB Performance Suspension
.jpg)
.jpg)
VERANO

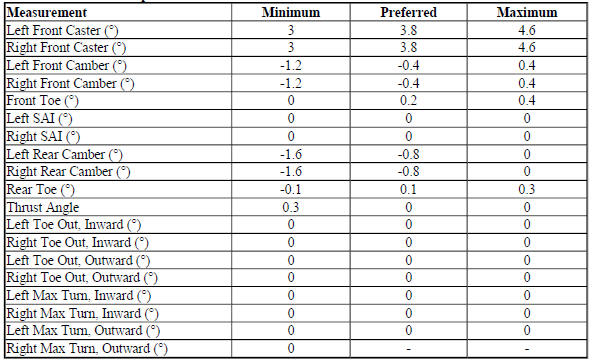

VERANO All Models
.jpg)
