HORN REPLACEMENT

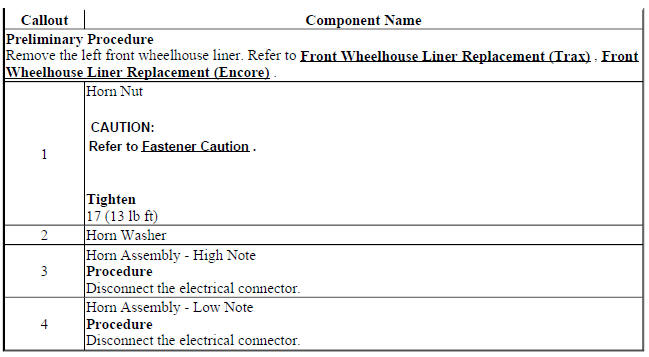

Fig. 3: Horn
Horn Replacement

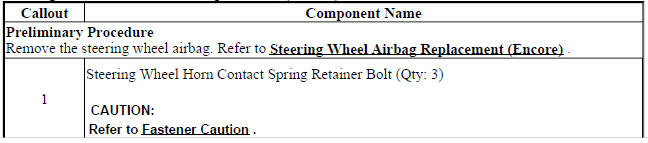

STEERING WHEEL HORN CONTACT REPLACEMENT (ENCORE)
Fig. 4: Steering Wheel Horn Contact (Encore)
Steering Wheel Horn Contact Replacement (Encore)

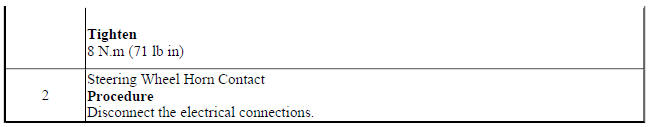

STEERING WHEEL HORN CONTACT REPLACEMENT (Encore)

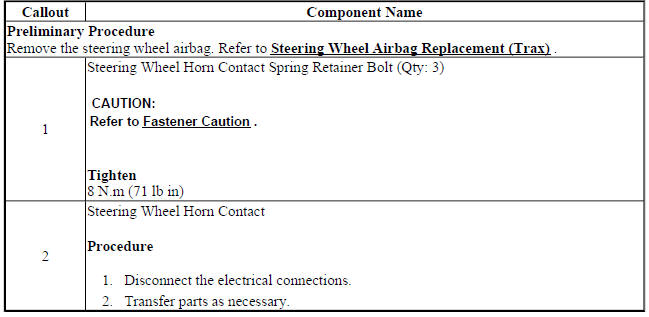

Fig. 5: Steering Wheel Horn Contact
Steering Wheel Horn Contact Replacement (Encore)
READ NEXT:
Horns - Description and operation
HORNS SYSTEM DESCRIPTION AND OPERATION
System Description
The horn system consists of the following components:
HORN fuse
Underhood fuse block (contains PCB horn relay)
Horn switch
Horn-low note
Immobilizer
Schematic wiring diagrams
IMMOBILIZER WIRING SCHEMATICS (ENCORE)
Immobilzer System
Fig. 1: Immobilzer System
IMMOBILIZER WIRING SCHEMATICS (Encore)
Immobilzer System
Fig. 2: Immobilzer System
Immobilizer - Diagnostic information and procedures
DTC B2955: Security sensor data circuit
DIAGNOSTIC CODE INDEX
DTC B2955: SECURITY SENSOR DATA CIRCUIT
Diagnostic Instructions
Perform the Diagnostic System Check - Vehicle prior to using this
