Buick Encore: Interior Lighting

Instrument Panel Illumination Control

Instrument Panel Illumination Control

The brightness of the instrument cluster display, infotainment display and controls, steering wheel controls, and all other illuminated controls, as well as feature status indicators can be adjusted.

The knob for this feature is on the instrument panel beside the steering column.

Push the knob in all the way until it extends out and then turn the knob clockwise or counterclockwise to brighten or dim the lights.

Courtesy Lamps

The courtesy lamps come on automatically when any door is opened and the dome lamp is in the door position

Dome Lamps

Front and Rear Dome Lamps

Front and Rear Dome Lamps

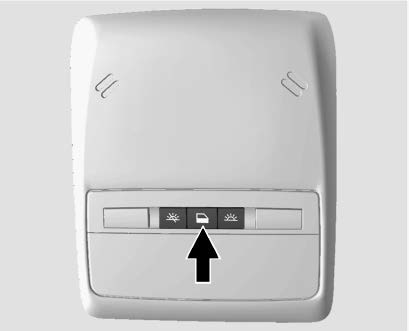

The front dome lamp controls are in the overhead console.

: Press to turn the lamps off, even when a door is open.

: When the button is returned to the middle position, the lamps turn on automatically when a door is opened.

: Press to turn on the dome lamps.

Front and Rear Dome Lamps

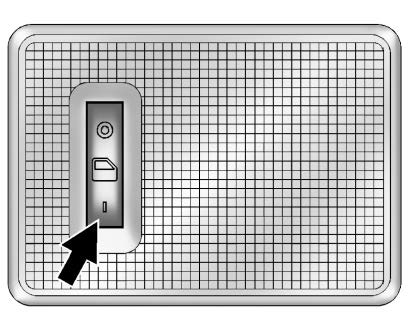

The rear dome lamp controls are in the headliner above the rear seats.

  : Press to turn the lamps off, even when a door is open.

: When the button is returned to the middle position, the lamps turn on automatically when a door is opened.

  : Press to turn on the dome lamps.

Reading Lamps

Reading Lamps

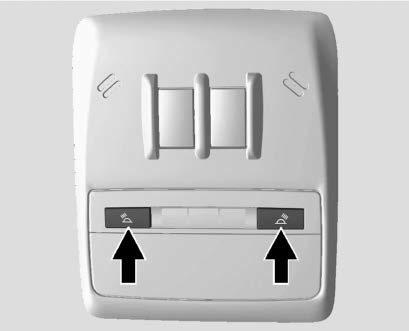

The front reading lamps are in the overhead console.

or : Press to turn each lamp on or off.
