Buick Encore: Interior Trim and Paneling - Repair instructions

Buick Encore 2012-2019 Service Manual / Accessories & Equipment / Interior Trim and Paneling / Interior Trim and Paneling - Repair instructions

SPECIFICATIONS

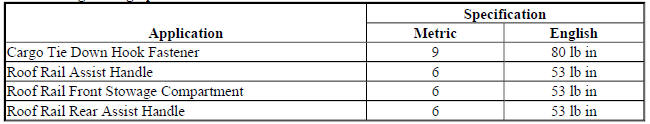

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

Fastener Tightening Specifications

REPAIR INSTRUCTIONS

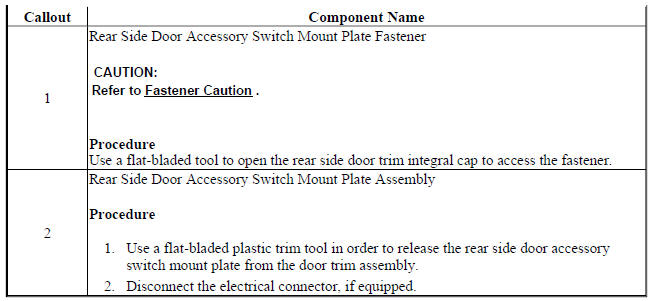

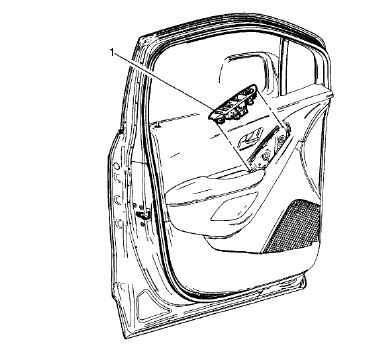

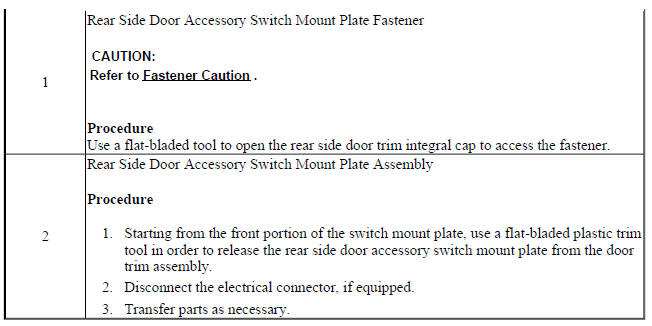

REAR SIDE DOOR ACCESSORY SWITCH MOUNT PLATE REPLACEMENT (ENCORE)

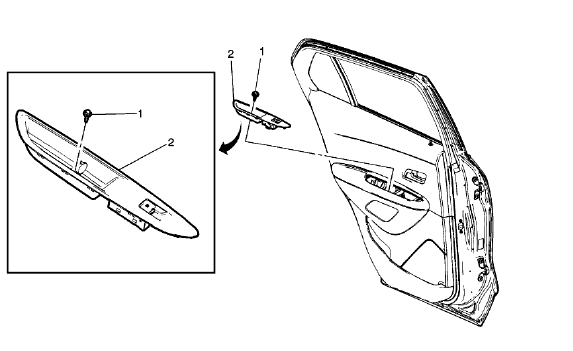

Fig. 1: Rear Side Door Accessory Switch Mount Plate
Fig. 1: Rear Side Door Accessory Switch Mount Plate

Rear Side Door Accessory Switch Mount Plate Replacement (Encore)

Rear Side Door Accessory Switch Mount Plate Replacement (Encore)

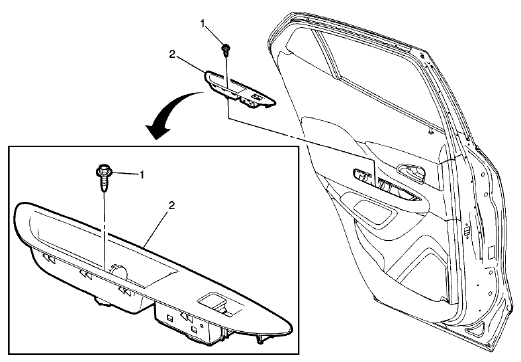

REAR SIDE DOOR ACCESSORY SWITCH MOUNT PLATE REPLACEMENT (Encore)

Fig. 2: Rear Side Door Accessory Switch Mount Plate
Fig. 2: Rear Side Door Accessory Switch Mount Plate

Rear Side Door Accessory Switch Mount Plate Replacement (Encore)

Rear Side Door Accessory Switch Mount Plate Replacement (Encore)

Rear Side Door Accessory Switch Mount Plate Replacement (Encore)

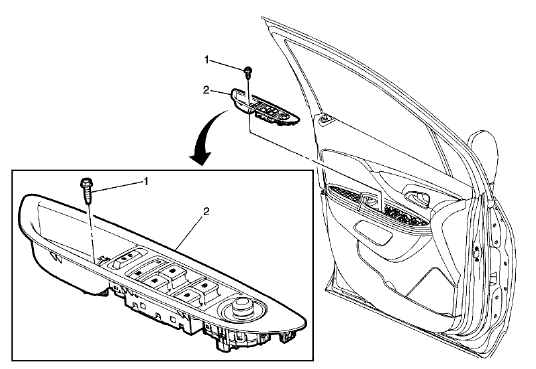

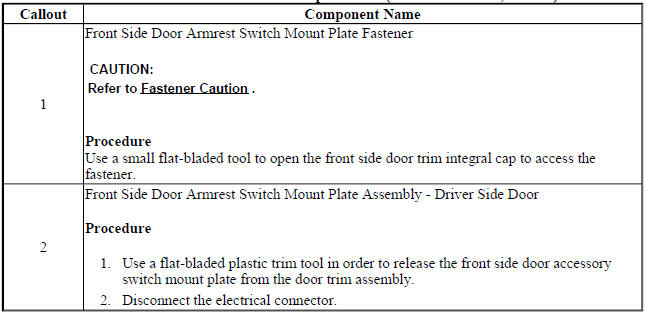

Front side door armrest switch mount plate replacement (driver side door, encore)

Fig. 3: Front Side Door Armrest Switch Mount Plate - Driver Side Door
Fig. 3: Front Side Door Armrest Switch Mount Plate - Driver Side Door

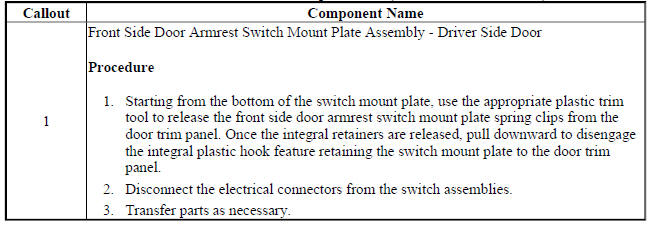

Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Encore)

Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Encore)

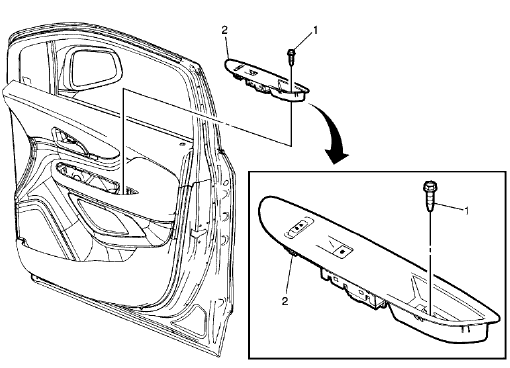

FRONT SIDE DOOR ARMREST SWITCH MOUNT PLATE REPLACEMENT (PASSENGER SIDE DOOR, ENCORE)

Fig. 4: Front Side Door Armrest Switch Mount Plate - Passenger Side Door
Fig. 4: Front Side Door Armrest Switch Mount Plate - Passenger Side Door

Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side Door, Encore)

Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side Door, Encore)

FRONT SIDE DOOR ARMREST SWITCH MOUNT PLATE REPLACEMENT (DRIVER SIDE DOOR, Encore)

Fig. 5: Front Side Door Armrest Switch Mount Plate - Driver Side Door
Fig. 5: Front Side Door Armrest Switch Mount Plate - Driver Side Door

Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Encore)

Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Encore)

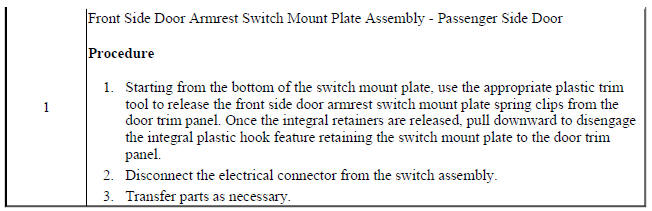

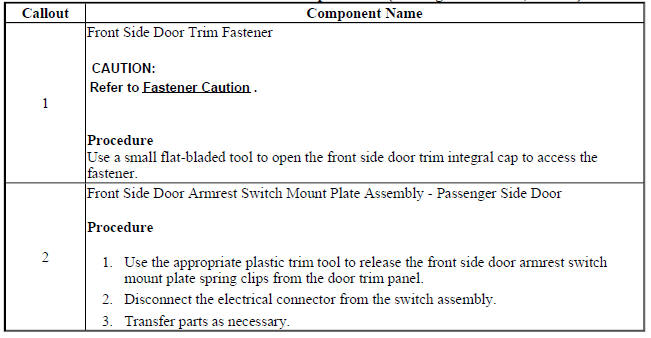

FRONT SIDE DOOR ARMREST SWITCH MOUNT PLATE REPLACEMENT (PASSENGER SIDE DOOR, Encore)

Fig. 6: Front Side Door Armrest Switch Mount Plate - Passenger Side Door
Fig. 6: Front Side Door Armrest Switch Mount Plate - Passenger Side Door

Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side Door, Encore)

Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side Door, Encore)

Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side Door, Encore)

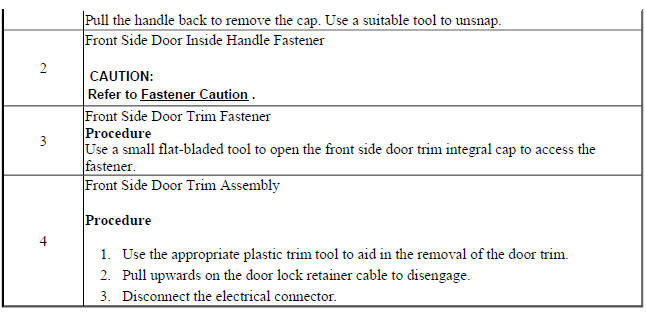

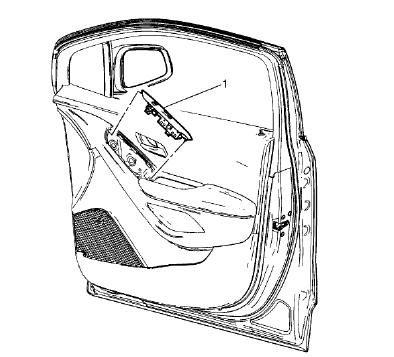

FRONT SIDE DOOR TRIM REPLACEMENT (ENCORE)

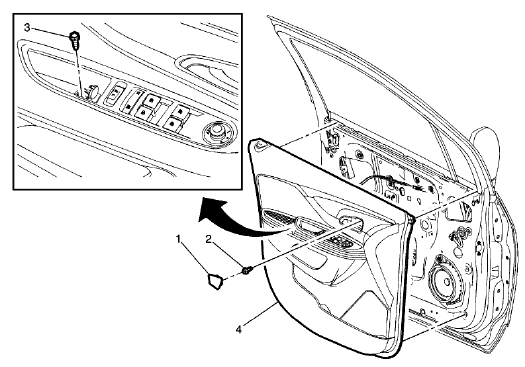

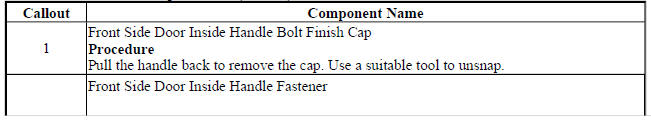

Fig. 7: Front Side Door Trim
Fig. 7: Front Side Door Trim

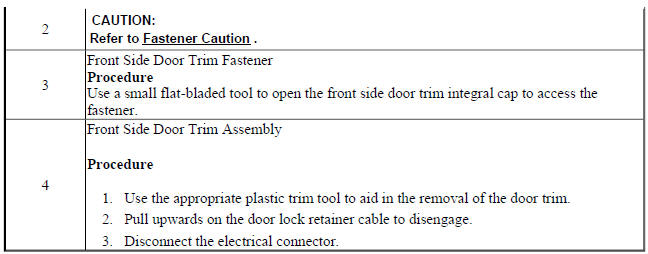

Front Side Door Trim Replacement (Encore)

Front Side Door Trim Replacement (Encore)

Front Side Door Trim Replacement (Encore)

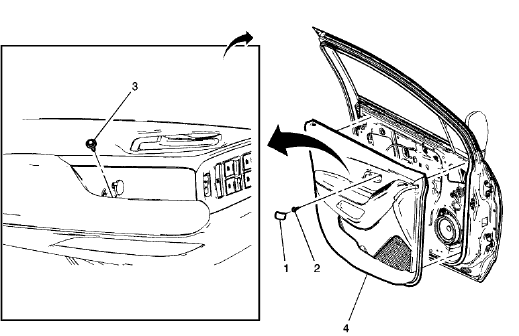

FRONT SIDE DOOR TRIM REPLACEMENT (Encore)

Fig. 8: Front Side Door Trim
Fig. 8: Front Side Door Trim

Front Side Door Trim Replacement (Encore)

Front Side Door Trim Replacement (Encore)

Front Side Door Trim Replacement (Encore)

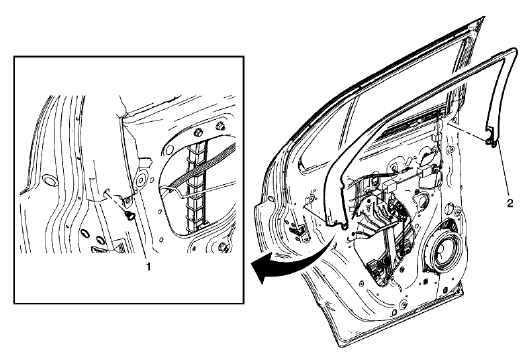

Rear side door window garnish molding replacement (encore)

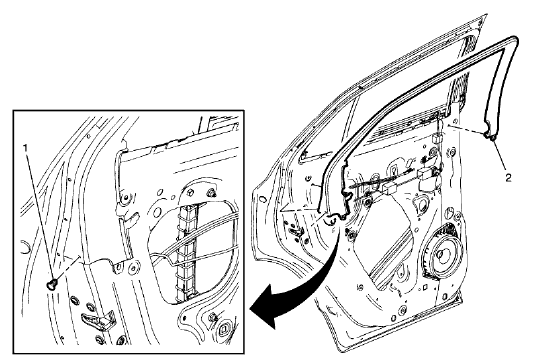

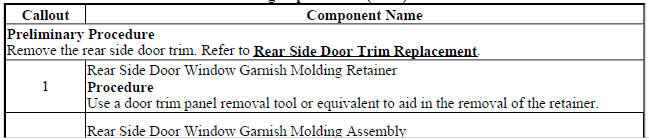

Fig. 9: Rear Side Door Window Garnish Molding
Fig. 9: Rear Side Door Window Garnish Molding

Rear Side Door Window Garnish Molding Replacement (Encore)

Rear Side Door Window Garnish Molding Replacement (Encore)

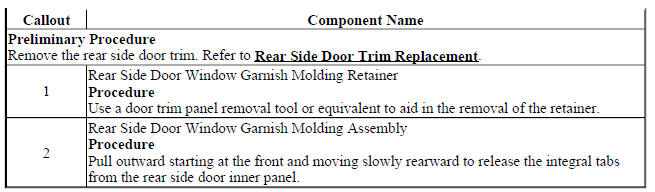

REAR SIDE DOOR WINDOW GARNISH MOLDING REPLACEMENT (Encore)

Fig. 10: Rear Side Door Window Garnish Molding
Fig. 10: Rear Side Door Window Garnish Molding

Rear Side Door Window Garnish Molding Replacement (Encore)

Rear Side Door Window Garnish Molding Replacement (Encore)

Rear Side Door Window Garnish Molding Replacement (Encore)

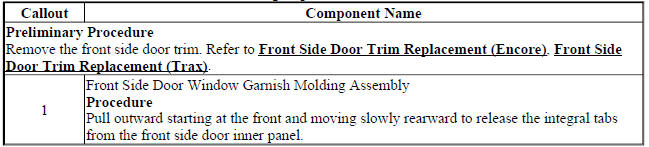

FRONT SIDE DOOR WINDOW GARNISH MOLDING REPLACEMENT

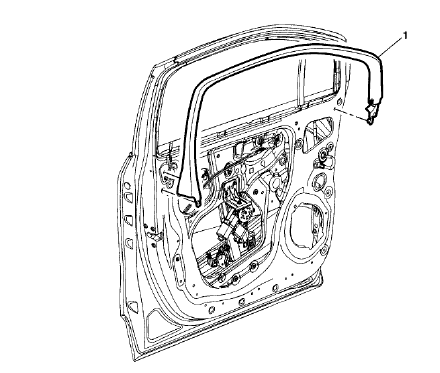

Fig. 11: Front Side Door Window Garnish Molding
Fig. 11: Front Side Door Window Garnish Molding

Front Side Door Window Garnish Molding Replacement

Front Side Door Window Garnish Molding Replacement

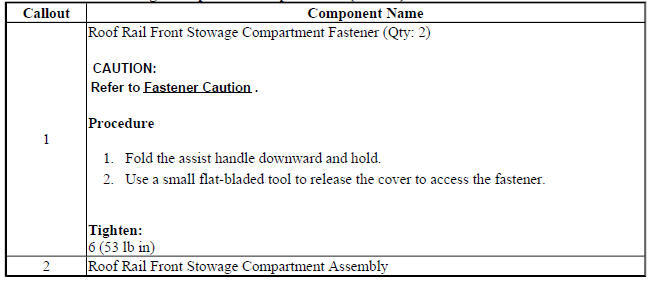

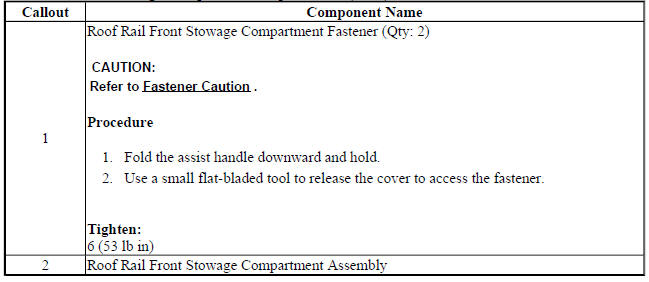

Roof rail front stowage compartment replacement (encore)

Fig. 12: Roof Rail Front Stowage Compartment
Fig. 12: Roof Rail Front Stowage Compartment

Roof Rail Front Stowage Compartment Replacement (Encore)

Roof Rail Front Stowage Compartment Replacement (Encore)

ROOF RAIL FRONT STOWAGE COMPARTMENT REPLACEMENT (Encore)

Fig. 13: Roof Rail Front Stowage Compartment
Fig. 13: Roof Rail Front Stowage Compartment

Roof Rail Front Stowage Compartment Replacement (Encore)

Roof Rail Front Stowage Compartment Replacement (Encore)

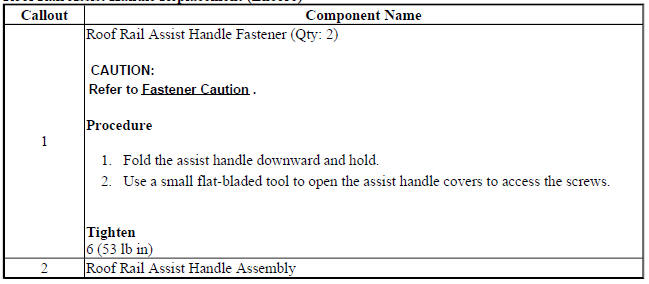

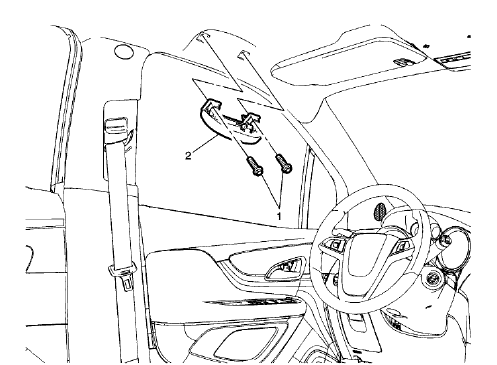

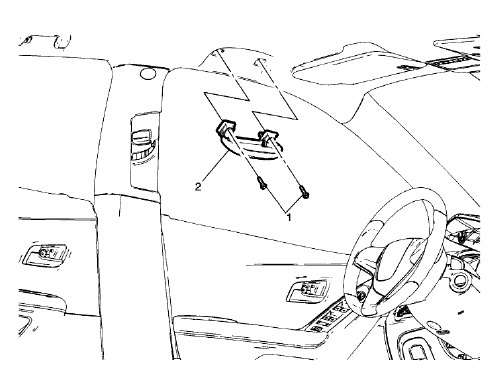

ROOF RAIL ASSIST HANDLE REPLACEMENT (ENCORE)

Fig. 14: Roof Rail Assist Handle Assembly
Fig. 14: Roof Rail Assist Handle Assembly

Roof Rail Assist Handle Replacement (Encore)

Roof Rail Assist Handle Replacement (Encore)

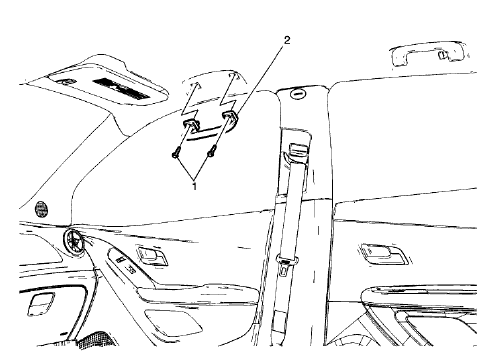

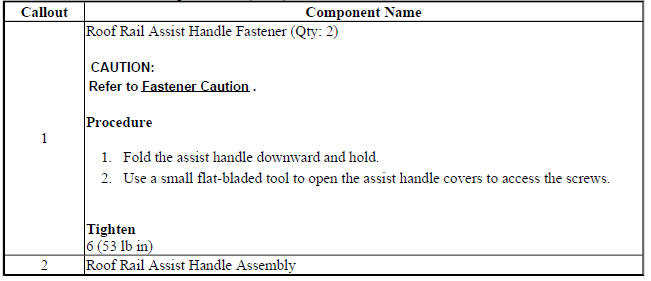

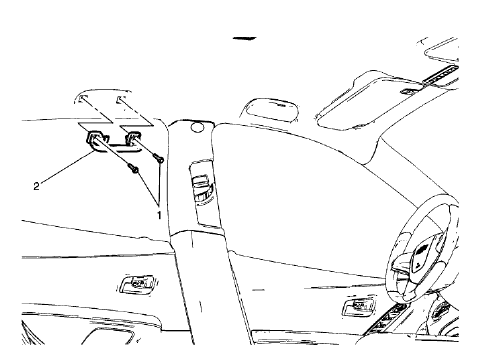

ROOF RAIL ASSIST HANDLE REPLACEMENT (Encore)

Fig. 15: Roof Rail Assist Handle Assembly
Fig. 15: Roof Rail Assist Handle Assembly

Roof Rail Assist Handle Replacement (Encore)

Roof Rail Assist Handle Replacement (Encore)

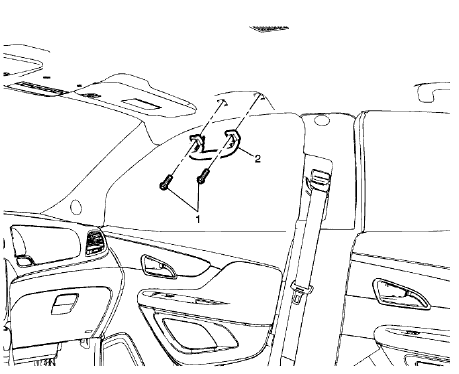

ROOF RAIL REAR ASSIST HANDLE REPLACEMENT (ENCORE)

Fig. 16: Roof Rail Rear Assist Handle Assembly
Fig. 16: Roof Rail Rear Assist Handle Assembly

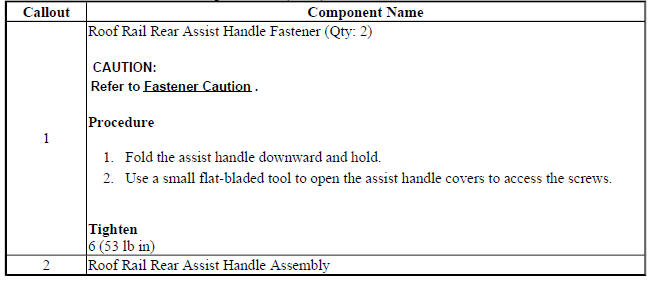

Roof Rail Rear Assist Handle Replacement (Encore)

Roof Rail Rear Assist Handle Replacement (Encore)

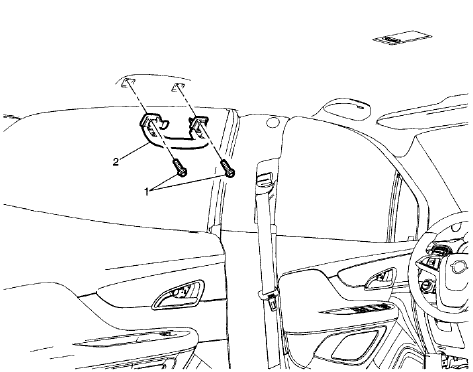

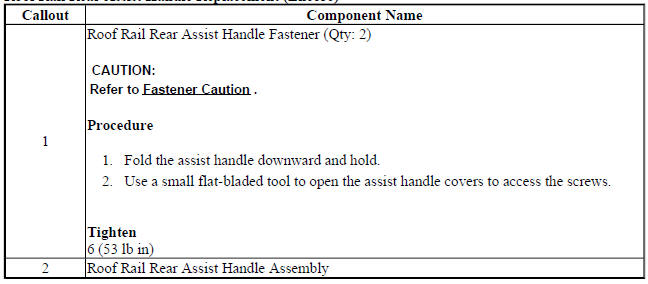

ROOF RAIL REAR ASSIST HANDLE REPLACEMENT (Encore)

Fig. 17: Roof Rail Rear Assist Handle Assembly
Fig. 17: Roof Rail Rear Assist Handle Assembly

Roof Rail Rear Assist Handle Replacement (Encore)

Roof Rail Rear Assist Handle Replacement (Encore)
