Buick Encore: Sunshade replacement (encore)
![Fig. 18: Sunshade Assembly](images/books/3712/index769.gif)

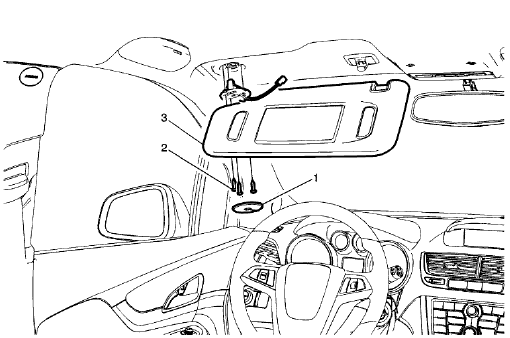

Fig. 18: Sunshade Assembly

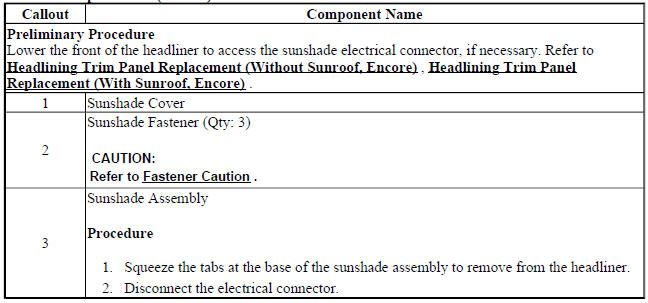

Sunshade Replacement (Encore)
![Sunshade Replacement (Encore)](images/books/3712/index770.jpg)
SUNSHADE REPLACEMENT (Encore)
![Fig. 19: Sunshade Assembly](images/books/3712/index771.gif)

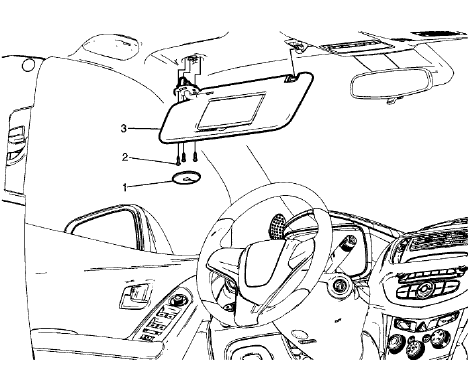

Fig. 19: Sunshade Assembly

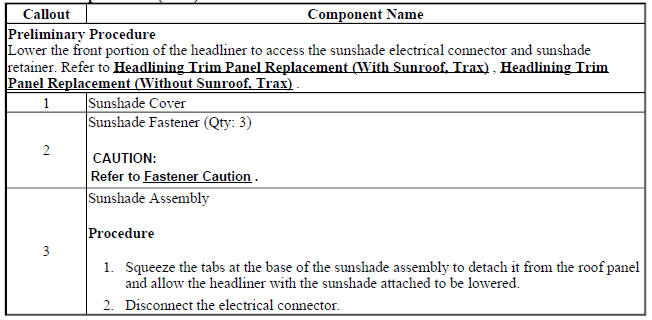

Sunshade Replacement (Encore)
![Sunshade Replacement (Encore)](images/books/3712/index772.jpg)
SUNSHADE SUPPORT REPLACEMENT (ENCORE)
![Fig. 20: Sunshade Support Assembly](images/books/3712/index773.gif)

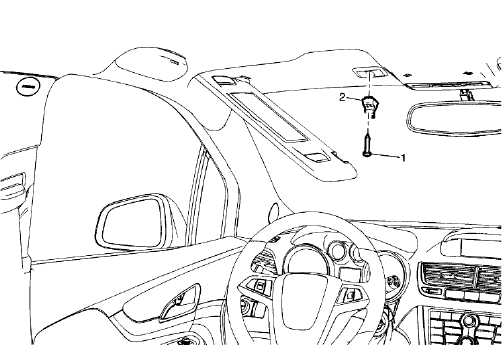

Fig. 20: Sunshade Support Assembly

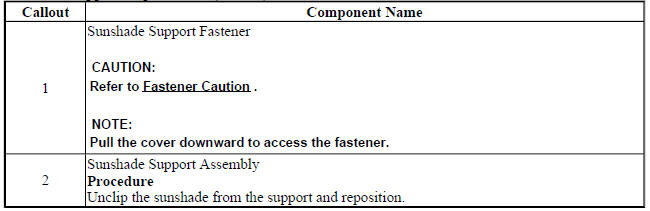

Sunshade Support Replacement (Encore)
![Sunshade Support Replacement (Encore)](images/books/3712/index774.jpg)
SUNSHADE SUPPORT REPLACEMENT (Encore)
![Fig. 21: Sunshade Support Assembly](images/books/3712/index775.gif)

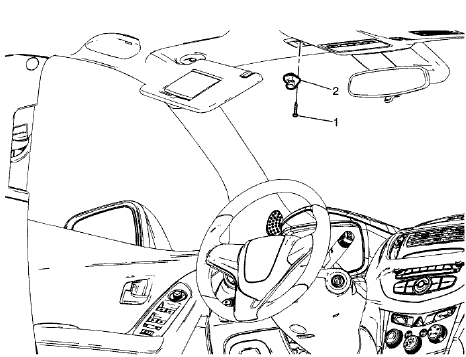

Fig. 21: Sunshade Support Assembly

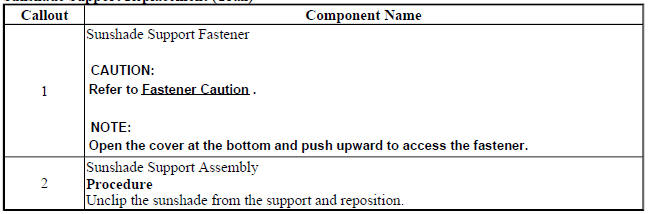

Sunshade Support Replacement (Encore)
![Sunshade Support Replacement (Encore)](images/books/3712/index776.jpg)
