Buick Encore: Repair instructions

CLUTCH PEDAL REPLACEMENT

NOTE: The clutch pedal is part of the brake, accelerator, and clutch pedal assembly and cannot be serviced separately.

To replace the brake, accelerator and clutch pedal assembly, refer to Brake, Accelerator, and Clutch Pedal Replacement .

CLUTCH MASTER CYLINDER RESERVOIR HOSE REPLACEMENT

Removal Procedure

  1. Remove the battery tray. Refer to Battery Tray Replacement .

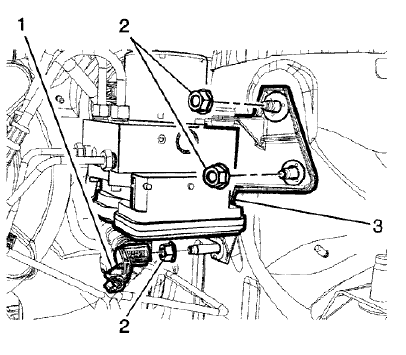

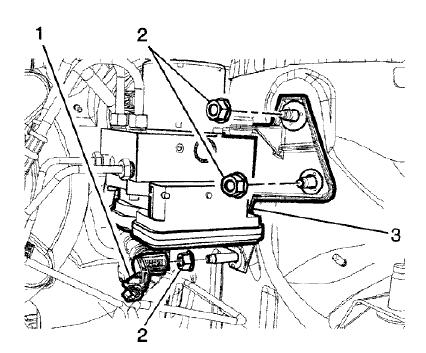

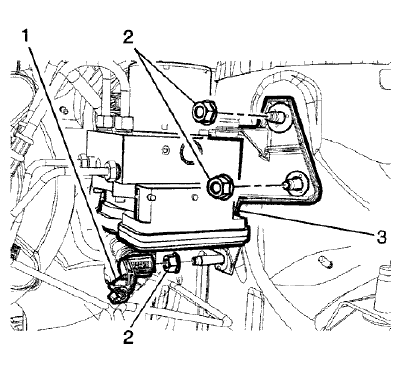

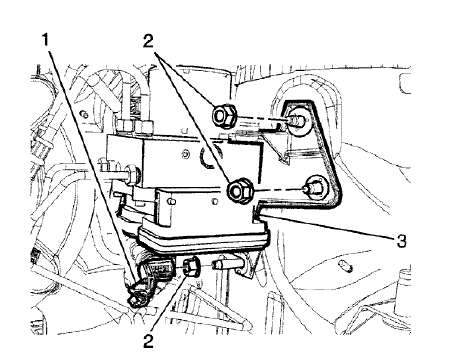

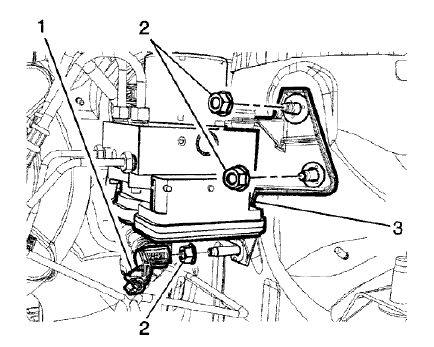

Fig. 1: BPMV Bracket Assembly
Fig. 1: BPMV Bracket Assembly

  1. Remove the clutch actuator cylinder pipe retainer (1).
  2. Remove the 3 BPMV bracket assembly nuts (2) and loosen the BPMV bracket assembly (3) from the vehicle.

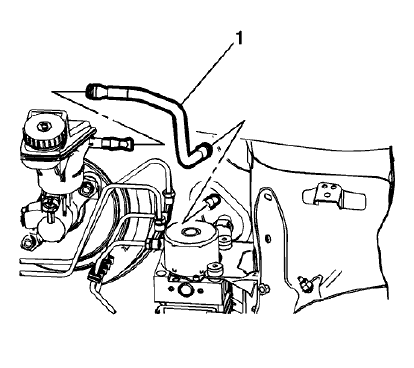

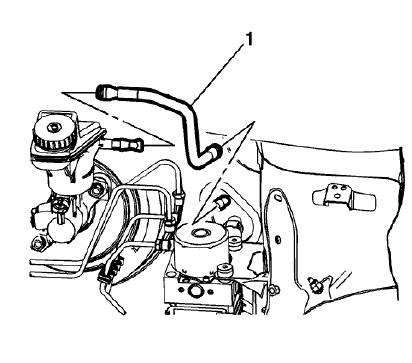

Fig. 2: Clutch Master Cylinder Reservoir Hose
Fig. 2: Clutch Master Cylinder Reservoir Hose

NOTE: Before disconnecting the reservoir tank hose, remove the clutch/brake fluid from the reservoir tank.

  1. Remove the clutch master cylinder reservoir hose (1) from the reservoir tank.
  2. Remove the clutch master cylinder reservoir hose from the clutch master cylinder.

Installation Procedure

Fig. 3: Clutch Master Cylinder Reservoir Hose
Fig. 3: Clutch Master Cylinder Reservoir Hose

  1. Install the clutch master cylinder reservoir hose (1) to the reservoir tank and the master cylinder.

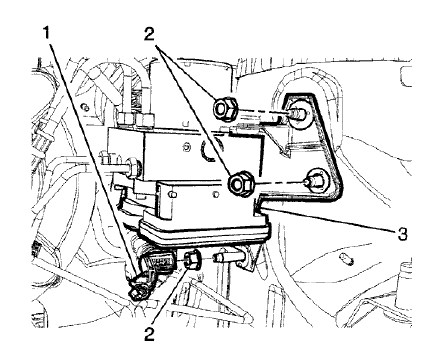

Fig. 4: BPMV Bracket Assembly
Fig. 4: BPMV Bracket Assembly

CAUTION: Refer to Fastener Caution .

  1. Install the 3 BPMV bracket assembly nuts (2) to the vehicle and tighten to 17 (12 lb ft).
  2. Install the clutch actuator cylinder pipe retainer (1).
  3. Bleed the hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding.
  4. Install the battery tray. Refer to Battery Tray Replacement .
  5. Fill the reservoir with GM approved brake fluid from a clean, sealed brake fluid container up to the MAX level.

Clutch master cylinder replacement

Removal Procedure

  1. Remove the battery tray. Refer to Battery Tray Replacement

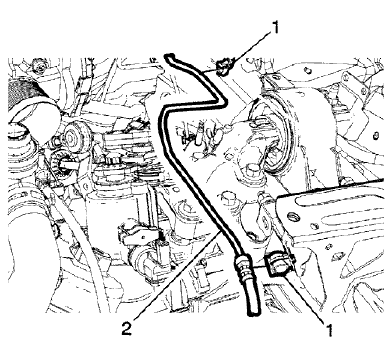

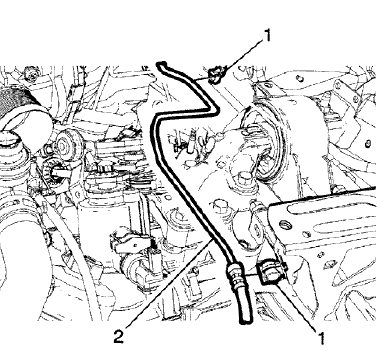

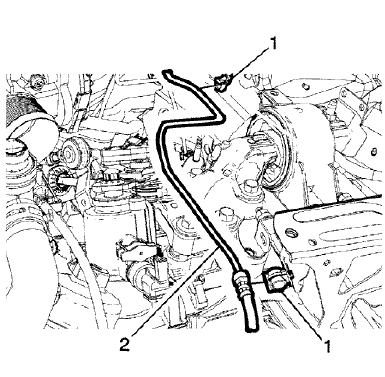

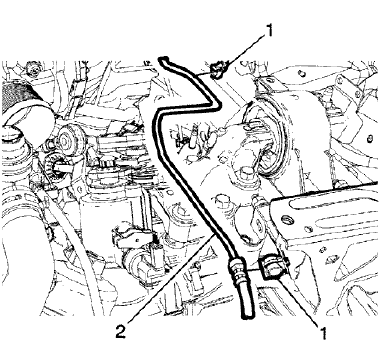

Fig. 5: Clutch Actuator Cylinder Front Pipe
Fig. 5: Clutch Actuator Cylinder Front Pipe

  1. Unclip the clutch actuator cylinder front pipe from the 2 retainers (1).

Fig. 6: BPMV Bracket Assembly
Fig. 6: BPMV Bracket Assembly

  1. Remove the clutch actuator cylinder pipe retainer (1).
  2. Remove the 3 BPMV bracket assembly nuts (2) and loosen the BPMV bracket assembly (3) from the vehicle.

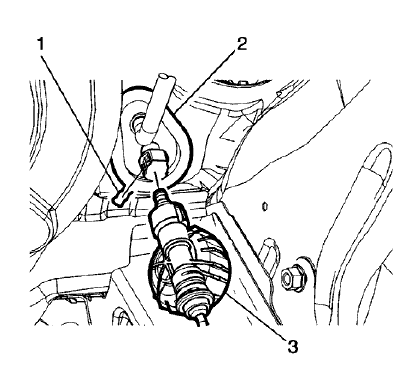

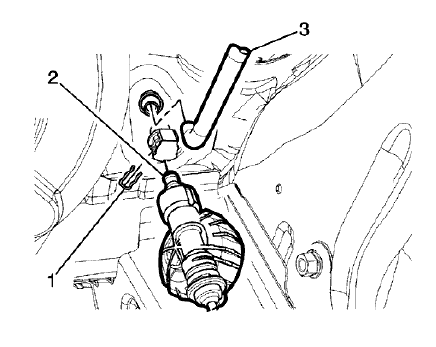

Fig. 7: Clutch Actuator Cylinder Front Pipe
Fig. 7: Clutch Actuator Cylinder Front Pipe

NOTE: Before disconnecting the clutch actuator cylinder front pipe, remove the clutch/brake fluid from the reservoir tank.

  1. Remove the retaining clip (1).
  2. Disconnect the clutch actuator cylinder front pipe (2) from the clutch master cylinder.
  3. Remove the clutch master cylinder reservoir hose (3) from the master cylinder. Refer to Clutch Master Cylinder Reservoir Hose Replacement.
  4. Remove the brake pedal assembly. Refer to Brake, Accelerator, and Clutch Pedal Replacement .

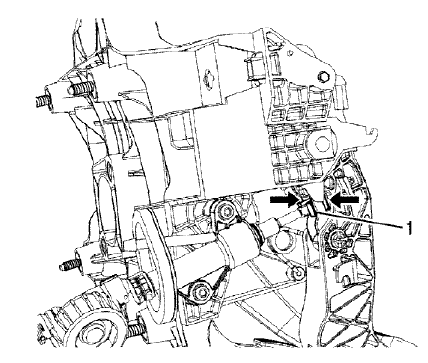

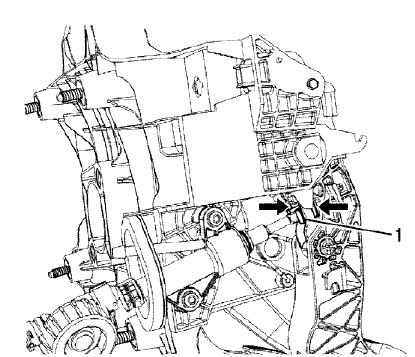

Fig. 8: Clutch Pedal Push Rod Retainer
Fig. 8: Clutch Pedal Push Rod Retainer

NOTE: Press the 2 latches (arrows) together.

  1. Disconnect the push rod retainer (1) from the clutch pedal.

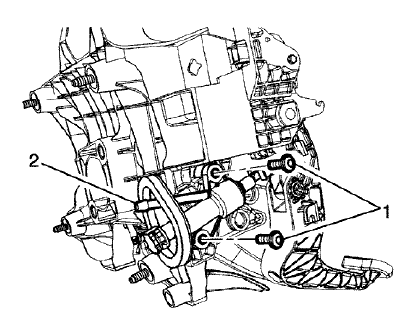

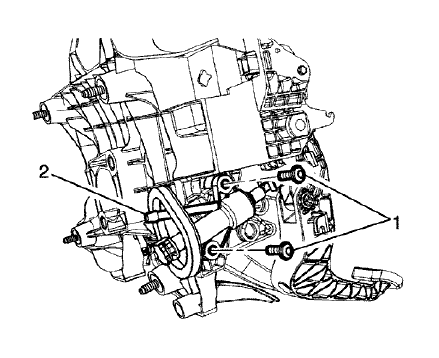

Fig. 9: Clutch Master Cylinder And Mount
Fig. 9: Clutch Master Cylinder And Mount

  1. Remove the 2 clutch master cylinder mount fasteners (1).
  2. Remove the clutch master cylinder (2) from the brake pedal assembly

Installation Procedure

Fig. 10: Clutch Master Cylinder And Mount
Fig. 10: Clutch Master Cylinder And Mount

  1. Install the clutch master cylinder (2) into the brake pedal assembly.

CAUTION: Refer to Fastener Caution .

  1. Install the 2 clutch master cylinder mount fasteners (1) and tighten to 4.5 (40 lb in).

Fig. 11: Clutch Pedal Push Rod Retainer
Fig. 11: Clutch Pedal Push Rod Retainer

NOTE: An audible click will be heard when the clip is correctly seated.

  1. Connect the push rod retainer (1) to the clutch pedal.
  2. Install the brake pedal assembly. Refer to Brake, Accelerator, and Clutch Pedal Replacement .

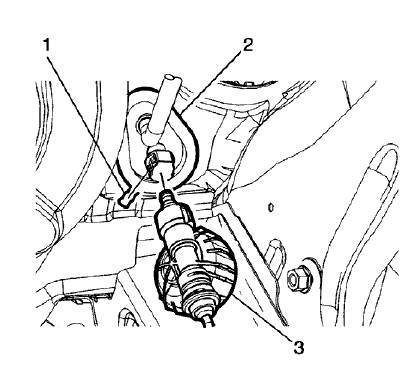

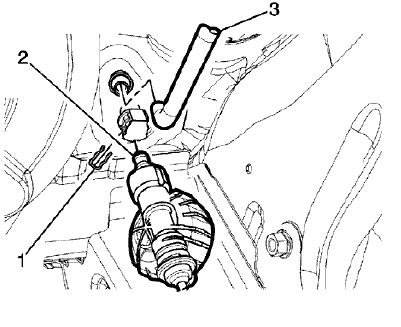

Fig. 12: Clutch Actuator Cylinder Front Pipe
Fig. 12: Clutch Actuator Cylinder Front Pipe

  1. Connect the clutch actuator cylinder front pipe (2) to the clutch master cylinder.
  2. Install the retaining clip (1).
  3. Install the clutch master cylinder reservoir hose (3) to the master cylinder. Refer to Clutch Master Cylinder Reservoir Hose Replacement.

Fig. 13: BPMV Bracket Assembly
Fig. 13: BPMV Bracket Assembly

  1. Install the 3 BPMV bracket assembly nuts (2) to the vehicle and tighten to 17 (12 lb ft).
  2. Install the clutch actuator cylinder pipe retainer (1).

Fig. 14: Clutch Actuator Cylinder Front Pipe
Fig. 14: Clutch Actuator Cylinder Front Pipe

  1. Clip the clutch actuator cylinder front pipe (2) into the 2 retainers (1).
  2. Bleed the hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding.
  3. Install the battery tray. Refer to Battery Tray Replacement .
  4. Fill the reservoir with GM approved brake fluid from a clean, sealed brake fluid container up to the MAX level.

Clutch actuator cylinder front pipe replacement

Removal Procedure

  1. Remove the battery tray. Refer to Battery Tray Replacement .

Fig. 15: Clutch Actuator Cylinder Front Pipe
Fig. 15: Clutch Actuator Cylinder Front Pipe

  1. Unclip the clutch actuator cylinder front pipe from the 2 retainers (1).

Fig. 16: BPMV Bracket Assembly
Fig. 16: BPMV Bracket Assembly

  1. Remove the clutch actuator cylinder pipe retainer (1).
  2. Remove the 3 BPMV bracket assembly nets (2) and loosen the BPMV bracket assembly (3) from the vehicle.

Fig. 17: Clutch Actuator Cylinder Front Pipe
Fig. 17: Clutch Actuator Cylinder Front Pipe

NOTE: Before disconnecting the clutch actuator cylinder front pipe, remove the clutch/brake fluid from the reservoir tank.

  1. Remove the retaining clip (1).
  2. Disconnect clutch actuator cylinder front pipe (3) from the clutch master cylinder (2).

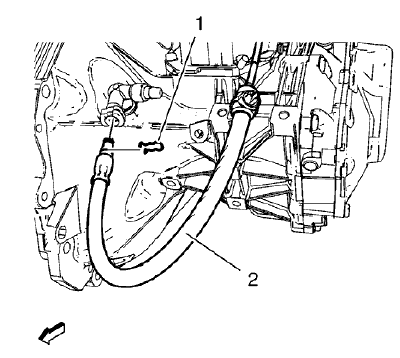

Fig. 18: Clutch Actuator Cylinder Front Pipe Retainer
Fig. 18: Clutch Actuator Cylinder Front Pipe Retainer

  1. Remove the retaining clip (1).
  2. Disconnect the clutch actuator cylinder front pipe (2) from the clutch actuator cylinder pipe elbow.
  3. Remove the clutch actuator cylinder front pipe from the vehicle.

Installation Procedure

  1. Install the clutch actuator cylinder front pipe in the vehicle.

Fig. 19: Clutch Actuator Cylinder Front Pipe Retainer
Fig. 19: Clutch Actuator Cylinder Front Pipe Retainer

  1. Connect the clutch actuator cylinder front pipe (2) to the clutch actuator cylinder pipe elbow.
  2. Install the retaining clip (1).

Fig. 20: Clutch Actuator Cylinder Front Pipe
Fig. 20: Clutch Actuator Cylinder Front Pipe

  1. Connect clutch actuator cylinder front pipe (3) to the clutch master cylinder (2).
  2. Install the retaining clip (1).

Fig. 21: BPMV Bracket Assembly
Fig. 21: BPMV Bracket Assembly

CAUTION: Refer to Fastener Caution .

  1. Install the 3 BPMV bracket assembly nuts (2) to the vehicle and tighten to 17 (12 lb ft).
  2. Install the clutch actuator cylinder pipe retainer (1).

Fig. 22: Clutch Actuator Cylinder Front Pipe
Fig. 22: Clutch Actuator Cylinder Front Pipe

  1. Clip the clutch actuator cylinder front pipe into the 2 retainers (1).
  2. Bleed the hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding.
  3. Install the battery tray. Refer to Battery Tray Replacement .
  4. Fill the reservoir with GM approved brake fluid from a clean, sealed brake fluid container up to the MAX level.

Clutch actuator cylinder pipe replacement (D16)

Removal Procedure

  1. Remove the transmission. Refer to Transmission Replacement .

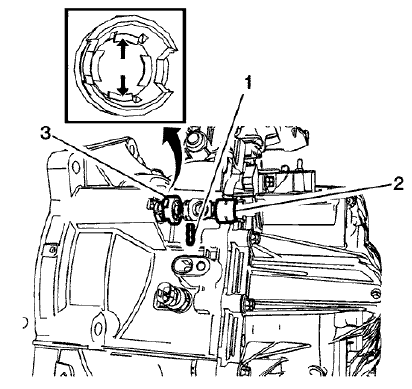

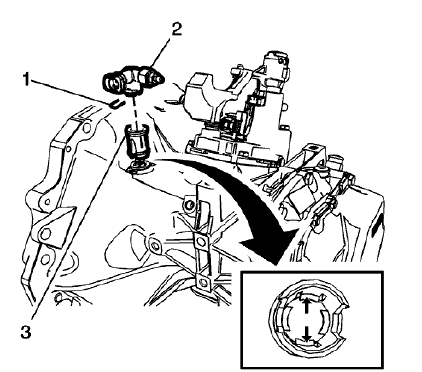

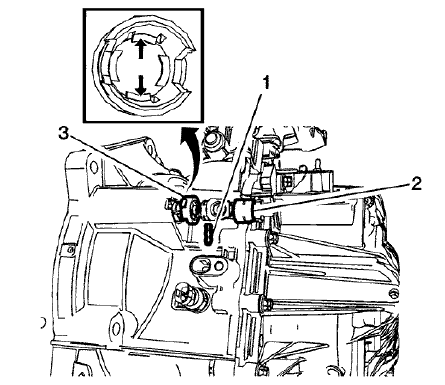

Fig. 23: Actuator Cylinder Pipe Connector Elbow And Clip
Fig. 23: Actuator Cylinder Pipe Connector Elbow And Clip

  1. Remove the clutch actuator cylinder pipe connector elbow clip (1) from the clutch actuator elbow.
  2. Remove the connector elbow (2) from the clutch actuator cylinder pipe end.

NOTE: Release the fastening sleeve key (arrows) using a screwdriver or equivalent to remove the fastening sleeve.

  1. Remove the fastening sleeve (3) from the transmission housing and clutch actuator cylinder pipe.

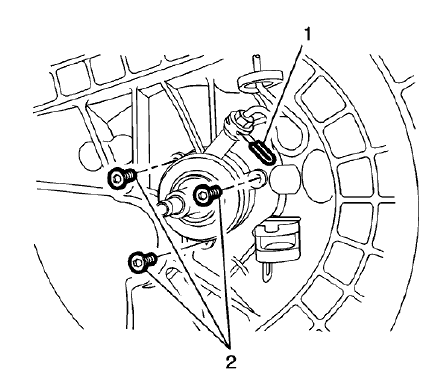

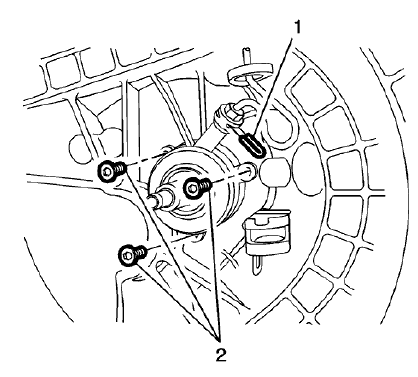

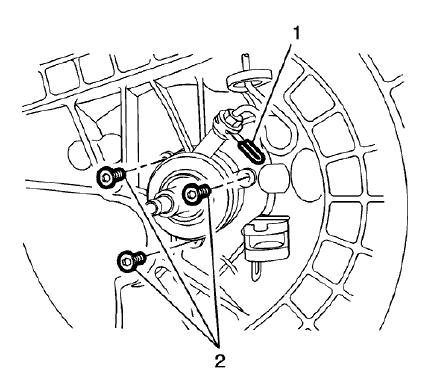

Fig. 24: Clutch Actuator Cylinder And Bolts
Fig. 24: Clutch Actuator Cylinder And Bolts

  1. Remove the clutch actuator cylinder pipe clip (1).
  2. Remove the 3 clutch actuator cylinder bolts (2).

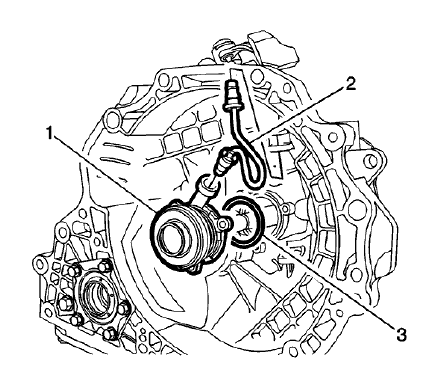

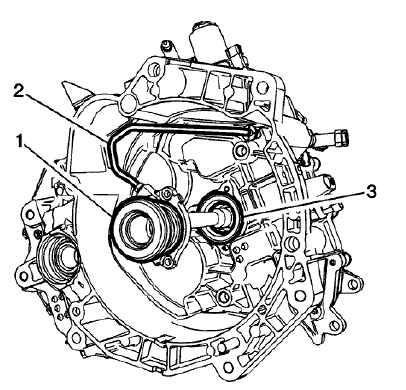

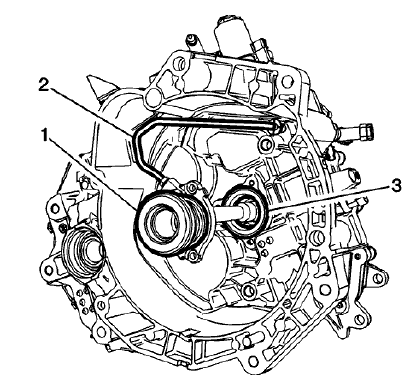

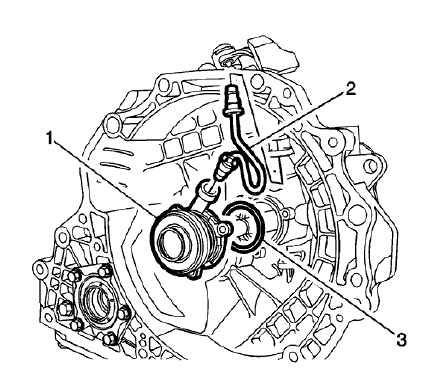

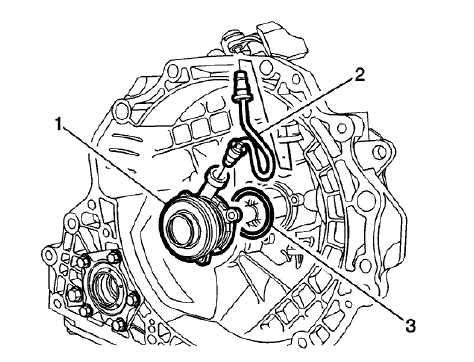

Fig. 25: Clutch Actuator Cylinder And Pipe
Fig. 25: Clutch Actuator Cylinder And Pipe

  1. Remove the clutch actuator cylinder (1) and the clutch actuator cylinder pipe (2) at the same time.

NOTE: Discard the clutch actuator cylinder seal.

  1. Remove the seal (3).

Installation Procedure

  1. Clean the 3 clutch actuator cylinder threaded holes in the transmission housing.

Fig. 26: Clutch Actuator Cylinder And Pipe
Fig. 26: Clutch Actuator Cylinder And Pipe

  1. Install a NEW clutch actuator cylinder seal (3).
  2. Install the clutch actuator cylinder (1) and clutch actuator cylinder pipe (2).

Fig. 27: Clutch Actuator Cylinder And Bolts
Fig. 27: Clutch Actuator Cylinder And Bolts

CAUTION: Refer to Fastener Caution .

  1. Install the 3 clutch actuator cylinder bolts (2) and tighten to 8 (71 lb in).
  2. Install the clutch actuator cylinder pipe clip (1).

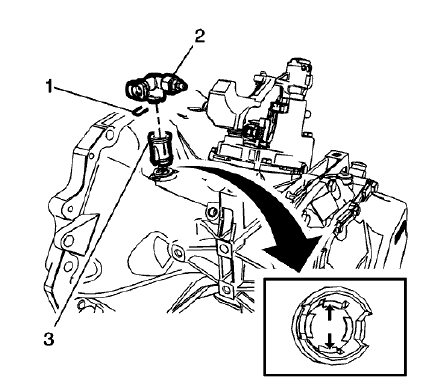

Fig. 28: Actuator Cylinder Pipe Connector Elbow And Clip
Fig. 28: Actuator Cylinder Pipe Connector Elbow And Clip

  1. Install the fastening sleeve (3) to the transmission housing and clutch actuator cylinder pipe.
  2. Install the clutch actuator cylinder pipe connector elbow (2) to the clutch actuator cylinder pipe end.
  3. Install the connector elbow clip (1).
  4. Install the transmission. Refer to Transmission Replacement

CLUTCH ACTUATOR CYLINDER PIPE REPLACEMENT (M20/M32)

Removal Procedure

  1. Remove the transmission. Refer to Transmission Replacement .

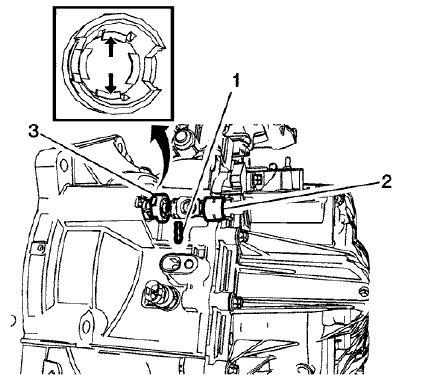

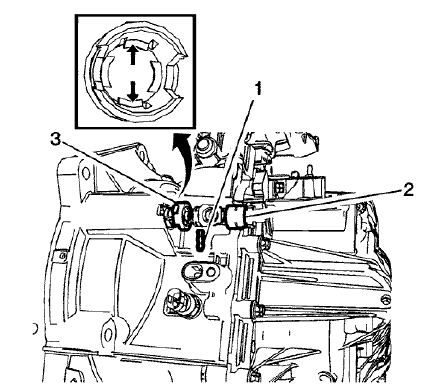

Fig. 29: Clutch Actuator Cylinder Pipe Connector Elbow, Clip And Fastening Sleeve
Fig. 29: Clutch Actuator Cylinder Pipe Connector Elbow, Clip And Fastening Sleeve

  1. Remove the clutch actuator cylinder pipe connector elbow clip (1) from the clutch actuator elbow.
  2. Remove the connector elbow (2) from the clutch actuator cylinder pipe end.

NOTE: Release the fastening sleeve key (arrows) using a screwdriver or equivalent to remove the fastening sleeve.

  1. Remove the fastening sleeve (3) from the transmission housing and clutch actuator cylinder pipe.

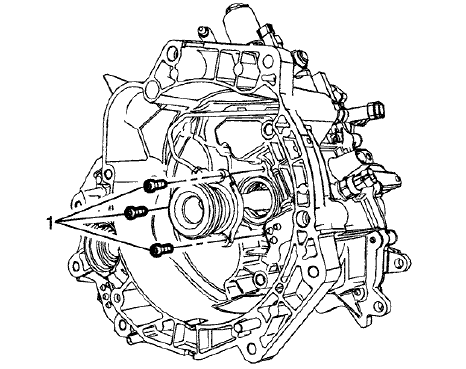

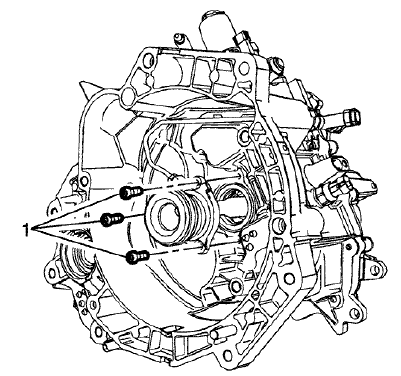

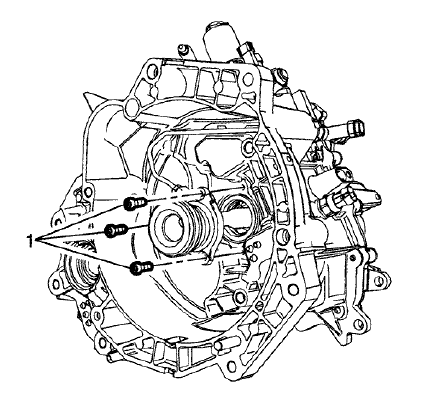

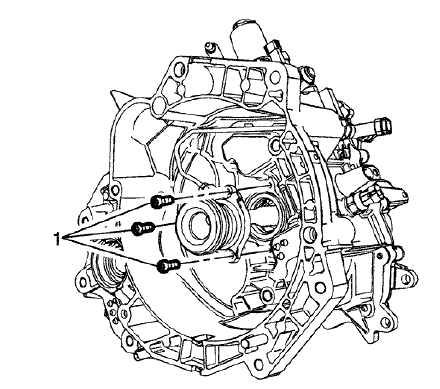

Fig. 30: Clutch Actuator Cylinder Bolts
Fig. 30: Clutch Actuator Cylinder Bolts

  1. Remove the 3 clutch actuator cylinder bolts (1).

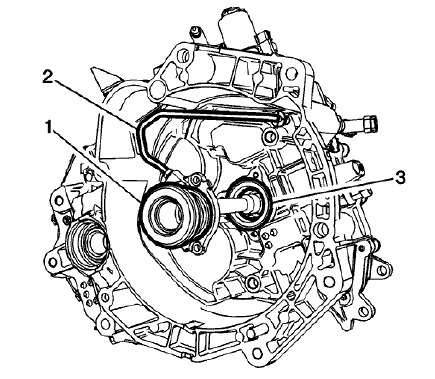

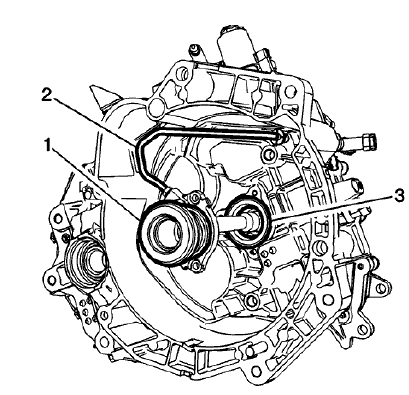

Fig. 31: Clutch Actuator Cylinder, Pipe And Seal
Fig. 31: Clutch Actuator Cylinder, Pipe And Seal

  1. Remove the clutch actuator cylinder (1) and the clutch actuator cylinder pipe (2) at the same time.

NOTE: Discard the clutch actuator cylinder seal.

  1. Remove the seal (3).

Installation Procedure

  1. Clean the 3 clutch actuator cylinder threaded holes in the transmission housing.

Fig. 32: Clutch Actuator Cylinder, Pipe And Seal
Fig. 32: Clutch Actuator Cylinder, Pipe And Seal

  1. Install a NEW clutch actuator cylinder seal (3).
  2. Install the clutch actuator cylinder (1) and clutch actuator cylinder pipe (2).

Fig. 33: Clutch Actuator Cylinder Bolts
Fig. 33: Clutch Actuator Cylinder Bolts

CAUTION: Refer to Fastener Caution .

  1. Install the 3 clutch actuator cylinder bolts (1) and tighten to 6 (53 lb in).

Fig. 34: Clutch Actuator Cylinder Pipe Connector Elbow, Clip And Fastening Sleeve
Fig. 34: Clutch Actuator Cylinder Pipe Connector Elbow, Clip And Fastening Sleeve

  1. Install the fastening sleeve (3) to the transmission housing and clutch actuator cylinder pipe.
  2. Install the clutch actuator cylinder pipe connector elbow (2) to the clutch actuator cylinder pipe end.
  3. Install the connector elbow clip (1).
  4. Install the transmission. Refer to Transmission Replacement .

Hydraulic clutch system bleeding

WARNING: Refer to Brake Fluid Irritant Warning .

CAUTION: Brake fluid must not come in contact with mineral oils and greases. The smallest amount of such could lead to malfunction or breakdown of the clutch.

CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

NOTE: The hydraulic clutch actuation must only be bled from "below", i.e. from the bleeder valve.

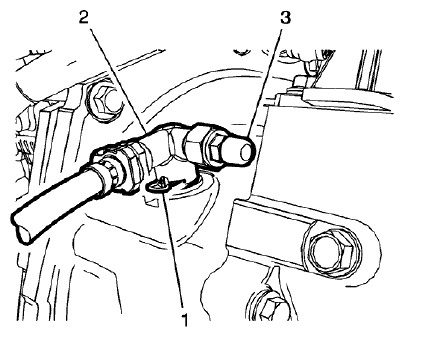

Fig. 35: valve cap
Fig. 35: valve cap

NOTE: The following operational stages must be undertaken to fill the pressure line between the master cylinder and the clutch actuator cylinder. When bleeding, ensure that the brake fluid reservoir is always full and does not run dry.

  1. Bleed pressure line between the clutch master cylinder and the clutch actuator cylinder using the following procedure:

  1. Remove the valve cap (3) from the bleeder valve.
  2. Fill brake fluid reservoir up to "MAX" marking.
  3. Press and hold clutch pedal.
  4. Open bleeder valve until air or air/brake fluid mixture emerges.

NOTE: Do not close the bleeder valve too fast.

  1. Close the bleeder valve.
  2. Release the clutch pedal slowly.
  3. Wait approximately 5 seconds.
  4. Repeat this bleeding process 4 times.
  5. Tighten bleeder valve .
  6. Push valve cap on to bleeder valve to protect the bleeder valve.
  1. Check shifting for ease of movement with vehicle stationary, with engine running and with clutch disengaged.
  2. Ensure that the fluid reservoir is at the correct level.
  3. Road test the vehicle to ensure proper operation.

Undertake road test using varying RPM ranges and frequent gear changes, bring vehicle to operating temperature during this process. Ensure the brake and clutch system is operating correctly.

CLUTCH PEDAL POSITION SENSOR REPLACEMENT

Removal Procedure

  1. Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Encore) , Instrument Panel Knee Bolster Replacement (Encore) .

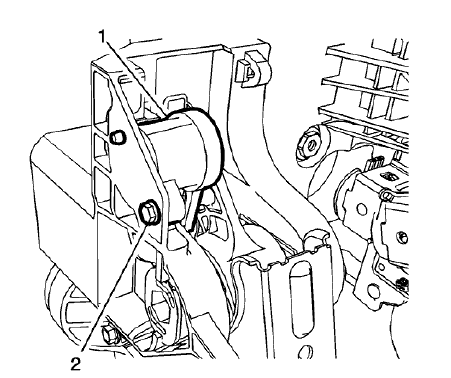

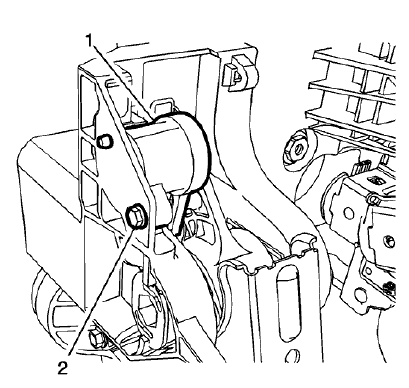

Fig. 36: Clutch Pedal Position Sensor And Bolt
Fig. 36: Clutch Pedal Position Sensor And Bolt

  1. Remove the clutch pedal position sensor bolt (2).
  2. Remove the clutch pedal position sensor (1).
  3. Disconnect the clutch pedal position sensor wiring harness connector.

Installation Procedure

Fig. 37: Clutch Pedal Position Sensor And Bolt
Fig. 37: Clutch Pedal Position Sensor And Bolt

  1. Connect the clutch pedal position sensor wiring harness connector.
  2. Install the clutch pedal position sensor (1).

CAUTION: Refer to Fastener Caution .

  1. Install the clutch pedal position sensor bolt (2) and tighten to 3 (27 lb in).
  2. Install the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Encore) , Instrument Panel Knee Bolster Replacement (Encore) .
  3. Learn clutch pedal position sensor.

CLUTCH PRESSURE AND DRIVEN PLATE REPLACEMENT (1.4L)

Special Tools

  • DT-6263 Remover/Installer Kit
  • DT-6263-28 Clutch Center Guide
  • EN-652 Flywheel Holder

For equivalent regional tools, refer to Special Tools.

Removal Procedure

NOTE:

  • To prevent damage to the spring fangs of pressure plate use DT-6263 remover/installer to remove and install clutch pressure plate.
  • Note the different lengths of the brackets for attaching DT-6263 remover/installer to lower engine block.
  1. Remove the transmission. Refer to Transmission Replacement

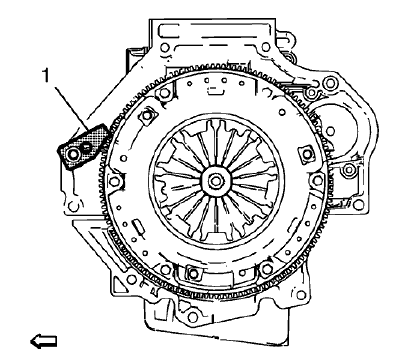

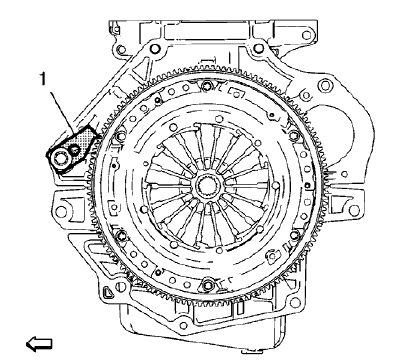

Fig. 38: Flywheel Holder Tool
Fig. 38: Flywheel Holder Tool

  1. Install the EN-652 holder (1) to the engine block.

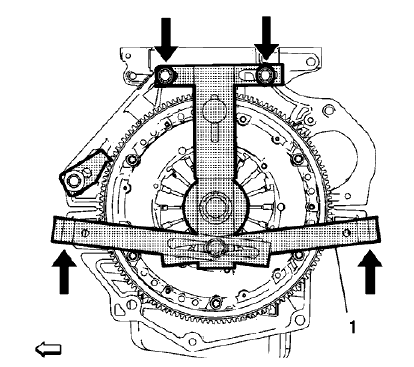

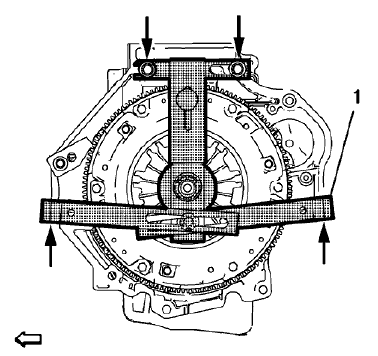

Fig. 39: Special Engine Block Brace Tool
Fig. 39: Special Engine Block Brace Tool

  1. Attach the DT-6263 remover/installer (1) in conjunction with the DT-6263-1 brace to the engine block.
  2. Install the 4 bolts (arrows) to the engine block, but do not tighten yet.

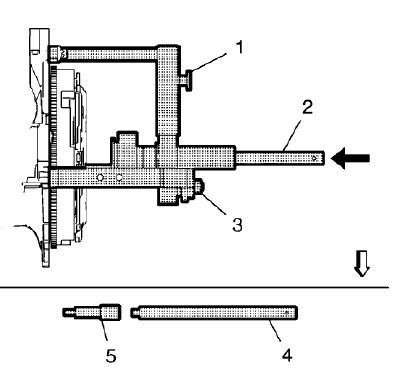

Fig. 40: Special Tools
Fig. 40: Special Tools

  1. Attach the DT-6263-28 guide to the DT-6263-30 drift (4).
  2. Fasten the DT-6263 remover/installer.
  1. Align the DT-6263-30 centering drift (2) in conjunction with the clutch center guide through the DT-6263 remover/installer into the clutch driven plate and crankshaft center (arrow).
  2. Tighten the knurled wheel (1).
  3. Tighten the bolt (3).
  4. Tighten the 4 bolts installing the DT-6263 remover/installer to the engine block.

Fig. 41: Clutch Removal/Installation Tool
Fig. 41: Clutch Removal/Installation Tool

  1. Preload the clutch springs, using the DT-6263 remover/installer.
  1. Turn the threaded rod (1) until it rests against the spring tangs of the clutch pressure plate.
  2. Measure the distance a.

NOTE: Do NOT turn further than necessary to gain free movement of the clutch disc.

  1. Turn the threaded rod clockwise until the distance a is extended by approximate 8 mm (0.31 in).
  2. Check for free movement of the clutch disc.

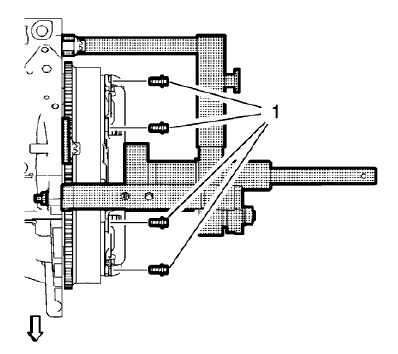

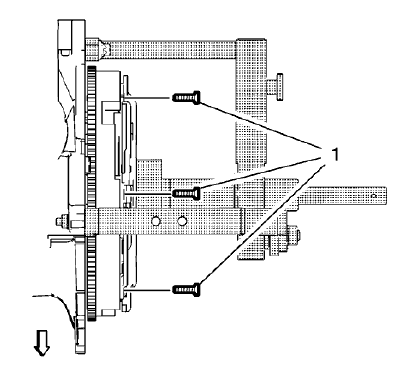

Fig. 42: Clutch Pressure Plate Bolts
Fig. 42: Clutch Pressure Plate Bolts

NOTE: Ascertain if bolt was assembled with thread lock agent.

  1. Remove and DISCARD the 6 clutch pressure plate bolts (1).

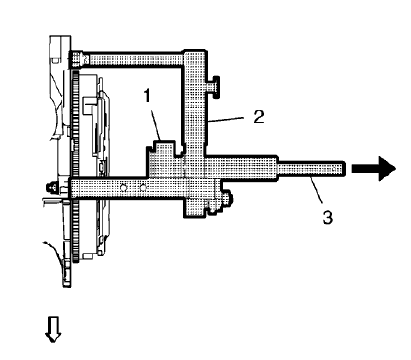

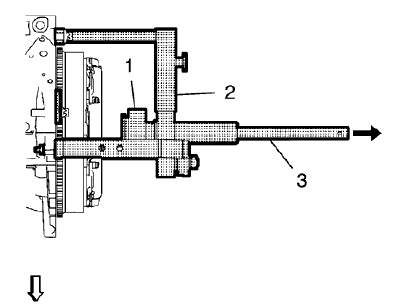

Fig. 43: Special Remover/Installer Tools
Fig. 43: Special Remover/Installer Tools

  1. Release the DT-6263 remover/installer (2).
  1. Turn the threaded rod (1) of the DT-6263 remover/installer counterclockwise to the stop.
  2. Remove the DT-6263-30 centering drift (3) in conjunction with the clutch center guide (arrow).

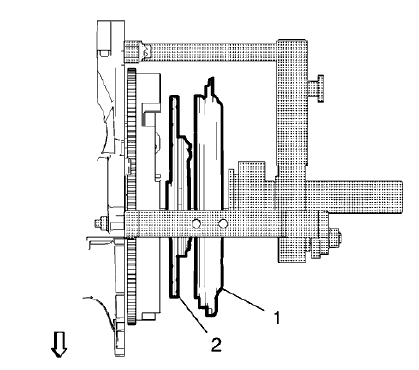

Fig. 44: Clutch Pressure Plate And Driven Plate
Fig. 44: Clutch Pressure Plate And Driven Plate

  1. Remove the clutch pressure plate (1) and the driven plate (2).

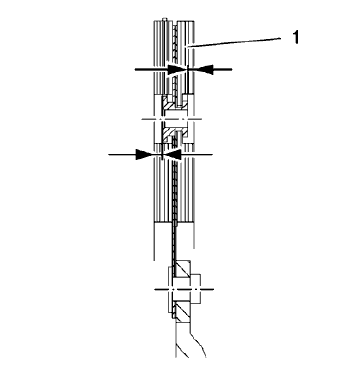

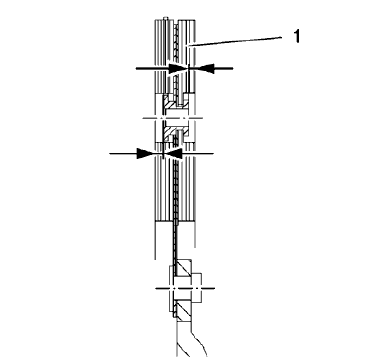

Fig. 45: Clutch Pressure Plate And Driven Plate Inspection Points
Fig. 45: Clutch Pressure Plate And Driven Plate Inspection Points

NOTE: Clutch pressure plate and driven plate contaminated by foreign bodies (oil, cleaning agent etc.) have to be replaced. Check clutch driven plate for damage and friction rust in the hub profile and replace if necessary. Do not clean clutch pressure plate and driven plate with a high pressure cleaner or component washing machine.

  1. Inspect the clutch pressure plate and the driven plate (1) and replace, if necessary.

Inspect for:

  • Excessive wear
  • Burned friction surface
  • Oil on friction surface
  • Damaged spline hub
  • Damaged springs

NOTE: The clutch driven plate has to be replaced if the lining projection is less than 0.5 mm (0.020 in) (arrows).

  1. Inspect the projection of lining at the clutch lining rivets.
  2. Slide the clutch pressure plate onto the transmission input shaft and check for easy movement.

Installation Procedure

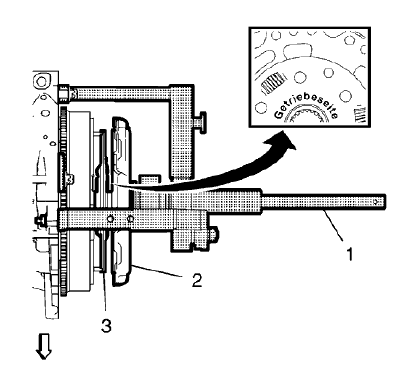

Fig. 46: Clutch Drive Plate
Fig. 46: Clutch Drive Plate

NOTE: The clutch drive plate must be installed so that the German lettering "Getriebe-seite" (means Gearbox-side) on the plate is orientated towards the transmission.

  1. Install the clutch driven plate (3) and the clutch pressure plate (2).

Center the clutch driven plate, using the DT-6263-30 centering drift (1) in conjunction with the clutch center guide.

Fig. 47: Preload The Clutch Springs Using Special Tools
Fig. 47: Preload The Clutch Springs Using Special Tools

NOTE: Do NOT turn further than necessary.

  1. Preload the clutch springs, using the DT-6263 remover/installer (2).

Turn the threaded rod (1) clockwise until the pressure plate contacts the flywheel (arrows).

Fig. 48: Clutch Pressure Plate Bolts
Fig. 48: Clutch Pressure Plate Bolts

CAUTION: Refer to Fastener Caution .

NOTE: In the case that the clutch pressure plate bolts where assembled with thread lock agent: Service may offer bolts that are not microencapsulated.

If this is the case apply thread lock agent to the bolt. If fastener is microencapsulated, install NEW clutch pressure plate bolts. DO NOT reuse the old bolt.

  1. Install the 6 NEW clutch pressure plate bolts (1). For the correct bolts refer to the electronic parts catalog.
  2. Tighten the clutch pressure plate bolts to 28 (21 lb ft).

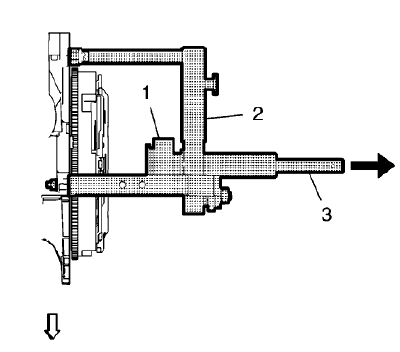

Fig. 49: Special Remover/Installer Tools
Fig. 49: Special Remover/Installer Tools

  1. Remove the DT-6263 remover/installer (2) from the engine block.
  1. Turn the threaded rod (1) of the DT-6263 remover/installer counterclockwise to the stop.
  2. Remove the DT-6263-30 centering drift (3) in conjunction with the clutch center guide (arrow).
  3. Remove the 4 bolts installing the DT-6263 remover/installer to the engine block.

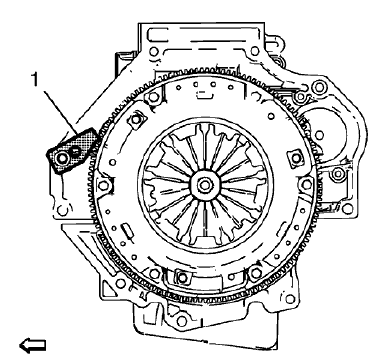

Fig. 50: Flywheel Holder Tool
Fig. 50: Flywheel Holder Tool

  1. Remove the EN-652 holder (1) from the engine block.
  2. Install the transmission. Refer to Transmission Replacement .

Clutch pressure and driven plate replacement (1.6L AND 1.8L)

Special Tools

  • DT-6263 Remover/Installer Kit
  • DT-6263-32 Clutch Center Guide
  • EN-652 Flywheel Holder

For equivalent regional tools, refer to Special Tools.

Removal Procedure

NOTE:

  • To prevent damage to the spring fangs of pressure plate use the DT-6263 remover/installer to remove and install the clutch pressure plate.
  • Note the different lengths of the brackets for attaching the DT-6263 remover/installer to the lower engine block.
  1. Remove the transmission. Refer to Transmission Replacement .

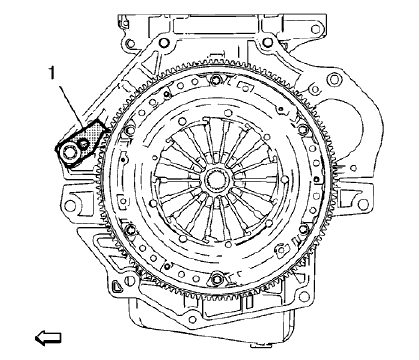

Fig. 51: Flywheel Holding Tool
Fig. 51: Flywheel Holding Tool

  1. Install the EN-652 holder (1) to the engine block.

Fig. 52: Engine Support Brace
Fig. 52: Engine Support Brace

  1. Attach the DT-6263 remover/installer (1) in conjunction with the DT-6263-1 brace to the engine block.
  2. Install the 4 bolts (arrows) to the engine block, but do not tighten yet.

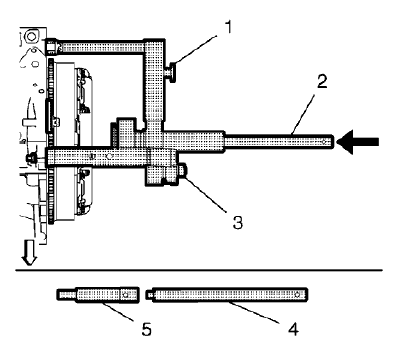

Fig. 53: Center Guide And Drift
Fig. 53: Center Guide And Drift

  1. Attach the DT-6263-32 guide (5) to the DT-6263-30 drift (4).
  2. Fasten the DT-6263 remover/installer.
  1. Align the DT-6263-30 centering drift (2) in conjunction with the clutch center guide through the DT-6263 remover/installer into the clutch pressure plate and the crankshaft center (arrow).
  2. Tighten the knurled wheel (1).
  3. Tighten the bolt (3).
  4. Tighten the 4 bolts installing the DT-6263 remover/installer to the engine block.

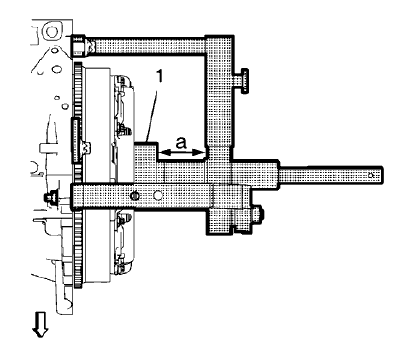

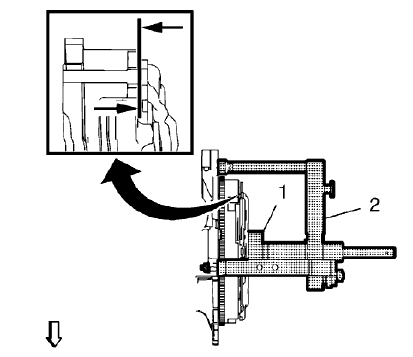

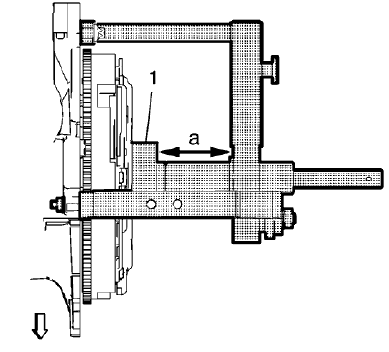

Fig. 54: Measuring Distance "a"
Fig. 54: Measuring Distance "a"

  1. Preload the clutch springs, using the DT-6263 remover/installer.
  1. Turn the threaded rod (1) until it rests against the spring tangs of the clutch pressure plate.
  2. Measure the distance a.

NOTE: DO NOT turn further than necessary to gain free movement of the clutch disc.

  1. Turn the threaded rod clockwise until the distance a is extended by approximate 8 mm (0.31 lb in).
  2. Check for free movement of the clutch disc.

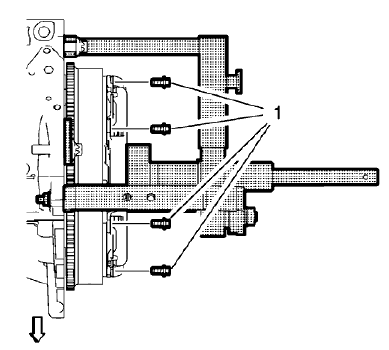

Fig. 55: Clutch Pressure Plate Bolts
Fig. 55: Clutch Pressure Plate Bolts

NOTE: Ascertain if bolt was assembled with thread lock agent.

  1. Remove and DISCARD the 6 clutch pressure plate bolts (1).

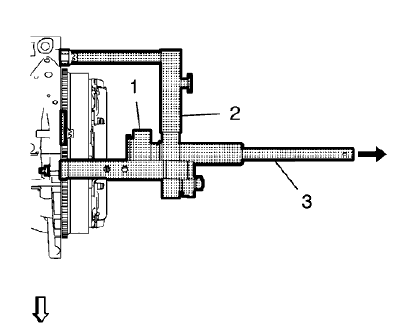

Fig. 56: Centering Drift And Clutch Center Guide
Fig. 56: Centering Drift And Clutch Center Guide

  1. Release the DT-6263 remover/installer (2).
  1. Turn the threaded rod (1) of the DT-6263 remover/installer counterclockwise to the stop.
  2. Remove the DT-6263-30 centering drift (3) in conjunction with the clutch center guide (arrow).

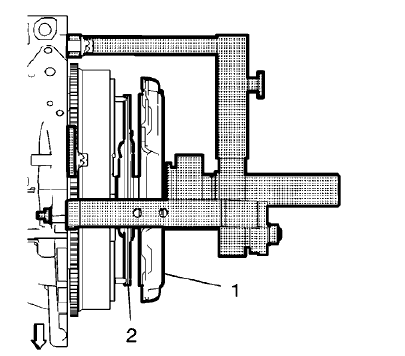

Fig. 57: Clutch Pressure Plate And Driven Plate
Fig. 57: Clutch Pressure Plate And Driven Plate

  1. Remove the clutch pressure plate (1) and the driven plate (2).

Fig. 58: Clutch Pressure Plate And Driven Plate Inspection Points
Fig. 58: Clutch Pressure Plate And Driven Plate Inspection Points

NOTE: Clutch pressure plate and driven plate contaminated by foreign bodies (oil, cleaning agent etc.) have to be replaced. Check the clutch driven plate for damage and friction rust in the hub profile and replace it if necessary. DO NOT clean the clutch pressure plate and the driven plate with a high pressure cleaner or component washing machine.

  1. Inspect the clutch pressure plate and the driven plate (1) and replace it, if necessary.

Inspect for:

  • Excessive wear
  • Burned friction surface
  • Oil on friction surface
  • Damaged spline hub
  • Damaged springs

NOTE: The clutch driven plate has to be replaced if the lining projection is less than 0.5 mm (0.020 in) (arrows).

  1. Inspect the projection of the lining at the clutch lining rivets.
  2. Slide the clutch pressure plate onto the transmission input shaft and check for easy movement.

Installation Procedure

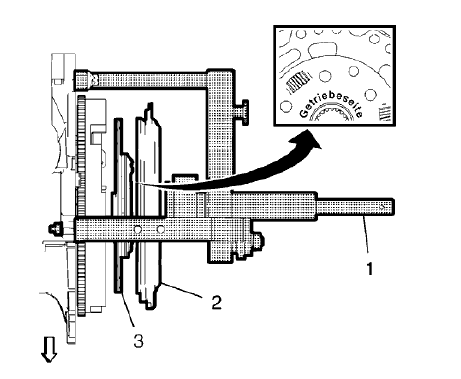

Fig. 59: Installing Bolts To Correct Site
Fig. 59: Installing Bolts To Correct Site

NOTE: The clutch driven plate must be installed so that the German lettering "Getriebe-seite" (means Gearbox-side) on the plate is orientated towards the transmission.

  1. Install the clutch driven plate (3) and the clutch pressure plate (2).

Center the clutch driven plate, using the DT-6263-30 centering drift (1) in conjunction with the clutch center guide.

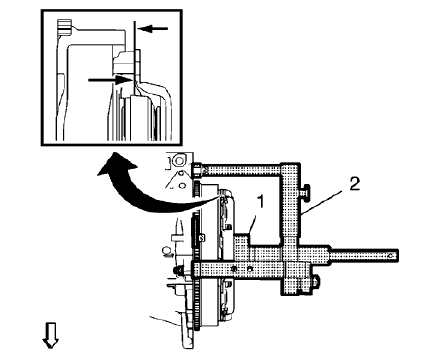

Fig. 60: Preloading Clutch Springs Using Special Tool
Fig. 60: Preloading Clutch Springs Using Special Tool

NOTE: DO NOT turn further than necessary.

  1. Preload the clutch springs, using the DT-6263 remover/installer (2).

Turn the threaded rod (1) clockwise until flywheel and pressure plate align (arrows).

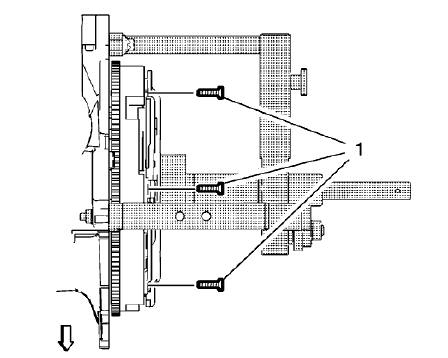

Fig. 61: Clutch Pressure Plate Bolts
Fig. 61: Clutch Pressure Plate Bolts

CAUTION: Refer to Fastener Caution .

NOTE: In the case that the clutch pressure plate bolts where assembled with thread lock agent: Service may offer bolts that are not microencapsulated.

If this is the case apply thread lock agent to the bolt. If the fastener is microencapsulated, install NEW clutch pressure plate bolts. DO NOT reuse the old bolts.

  1. Install the 6 NEW clutch pressure plate bolts (1). For the correct bolts refer to the electronic parts catalog.
  2. Tighten the clutch pressure plate bolts to 15 (11 lb ft).

Fig. 62: Centering Drift And Clutch Center Guide
Fig. 62: Centering Drift And Clutch Center Guide

  1. Remove the DT-6263 remover/installer (2) from the engine block.
  1. Turn the threaded rod (1) of the DT-6263 remover/installer counterclockwise to the stop.
  2. Remove the DT-6263-30 centering drift (3) in conjunction with the clutch center guide (arrow).
  3. Remove the 4 bolts installing the DT-6263 remover/installer to the engine block.

Fig. 63: Flywheel Holding Tool
Fig. 63: Flywheel Holding Tool

  1. Remove the EN-652 holder (1) from the engine block.
  2. Install the transmission. Refer to Transmission Replacement .

Clutch actuator cylinder replacement (D16)

Removal Procedure

  1. Remove the transmission. Refer to Transmission Replacement

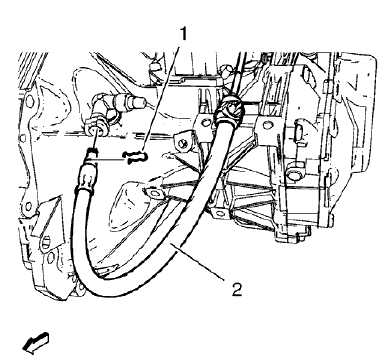

Fig. 64: Actuator Cylinder Pipe Connector Elbow And Clip
Fig. 64: Actuator Cylinder Pipe Connector Elbow And Clip

  1. Remove the clutch actuator cylinder pipe connector elbow clip (1) from the clutch actuator elbow.
  2. Remove the connector elbow (2) from the clutch actuator cylinder pipe end.

NOTE: Release the fastening sleeve key (arrows) using a screwdriver or equivalent to remove the fastening sleeve.

  1. Remove the fastening sleeve (3) from the transmission housing and clutch actuator cylinder pipe.

Fig. 65: Clutch Actuator Cylinder And Bolts
Fig. 65: Clutch Actuator Cylinder And Bolts

  1. Remove the clutch actuator cylinder pipe clip (1).
  2. Remove the 3 clutch actuator cylinder bolts (2).

Fig. 66: Clutch Actuator Cylinder And Pipe
Fig. 66: Clutch Actuator Cylinder And Pipe

  1. Remove the clutch actuator cylinder (1) and the clutch actuator cylinder pipe (2) at the same time.

NOTE: Discard the clutch actuator cylinder seal.

  1. Remove the seal (3).

Installation Procedure

  1. Clean the 3 clutch actuator cylinder threaded holes in the transmission housing.

Fig. 67: Clutch Actuator Cylinder And Pipe
Fig. 67: Clutch Actuator Cylinder And Pipe

  1. Install a NEW clutch actuator cylinder seal (3).
  2. Install the clutch actuator cylinder (1) and clutch actuator cylinder pipe (2).

Fig. 68: Clutch Actuator Cylinder And Bolts
Fig. 68: Clutch Actuator Cylinder And Bolts

CAUTION: Refer to Fastener Caution .

  1. Install the 3 clutch actuator cylinder bolts (2) and tighten to 8 (71 lb in).
  2. Install the clutch actuator cylinder pipe clip (1).

Fig. 69: Actuator Cylinder Pipe Connector Elbow And Clip
Fig. 69: Actuator Cylinder Pipe Connector Elbow And Clip

  1. Install the fastening sleeve (3) to the transmission housing and clutch actuator cylinder pipe.
  2. Install the clutch actuator cylinder pipe connector elbow (2) to the clutch actuator cylinder pipe end.
  3. Install the connector elbow clip (1).
  4. Install the transmission. Refer to Transmission Replacement

Clutch actuator cylinder replacement (M20/M32)

Removal Procedure

  1. Remove the transmission. Refer to Transmission Replacement

Fig. 70: Clutch Actuator Cylinder Pipe Connector Elbow, Clip And Fastening Sleeve
Fig. 70: Clutch Actuator Cylinder Pipe Connector Elbow, Clip And Fastening Sleeve

  1. Remove the clutch actuator cylinder pipe connector elbow clip (1) from the clutch actuator elbow.
  2. Remove the connector elbow (2) from the clutch actuator cylinder pipe end.

NOTE: Release the fastening sleeve key (arrows) using a screwdriver or equivalent to remove the fastening sleeve.

  1. Remove the fastening sleeve (3) from the transmission housing and clutch actuator cylinder pipe.

Fig. 71: Clutch Actuator Cylinder Bolts
Fig. 71: Clutch Actuator Cylinder Bolts

  1. Remove the 3 clutch actuator cylinder bolts (1).

Fig. 72: Clutch Actuator Cylinder, Pipe And Seal
Fig. 72: Clutch Actuator Cylinder, Pipe And Seal

  1. Remove the clutch actuator cylinder (1) and the clutch actuator cylinder pipe (2) at the same time.

NOTE: Discard the clutch actuator cylinder seal.

  1. Remove the seal (3).

Installation Procedure

  1. Clean the 3 clutch actuator cylinder threaded holes in the transmission housing.

Fig. 73: Clutch Actuator Cylinder, Pipe And Seal
Fig. 73: Clutch Actuator Cylinder, Pipe And Seal

  1. Install a NEW clutch actuator cylinder seal (3).
  2. Install the clutch actuator cylinder (1) and clutch actuator cylinder pipe (2).

Fig. 74: Clutch Actuator Cylinder Bolts
Fig. 74: Clutch Actuator Cylinder Bolts

CAUTION: Refer to Fastener Caution .

  1. Install the 3 clutch actuator cylinder bolts (1) and tighten to 6 (53 lb in).

Fig. 75: Clutch Actuator Cylinder Pipe Connector Elbow, Clip And Fastening Sleeve
Fig. 75: Clutch Actuator Cylinder Pipe Connector Elbow, Clip And Fastening Sleeve

  1. Install the fastening sleeve (3) to the transmission housing and clutch actuator cylinder pipe.
  2. Install the clutch actuator cylinder pipe connector elbow (2) to the clutch actuator cylinder pipe end.
  3. Install the connector elbow clip (1).
  4. Install the transmission. Refer to Transmission Replacement .

    READ NEXT:

     Description and operation

    CLUTCH SYSTEM DESCRIPTION AND OPERATION Clutch Spin Down Time Inspect the clutch spin down time as follows: Apply the parking brake and block the vehicle wheels. Shift the manual transmission into

     Shift Lock Control

     Schematic wiring diagrams

    SHIFT LOCK CONTROL WIRING SCHEMATICS (ENCORE) Shift Lock Control System Fig. 1: Shift Lock Control System SHIFT LOCK CONTROL WIRING SCHEMATICS (Encore) Shift Lock Control System Fig. 2: Shift Lock

    SEE MORE:

     Folding Seatback

    The front passenger seatback folds flat. Warning If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag. In a crash, an inflating airbag might force that object toward a person. This could cause severe injury or even death. Secure objects

     Publication Ordering Information

    Service Manuals Service manuals have the diagnosis and repair information on the engine, transmission, axle, suspension, brakes, electrical system, steering system, body, etc. Customer Literature Owner's manuals are written specifically for owners and are intended to provide basic operational inform

    © 2020-2024 Copyright www.bencore2.com
