Buick Encore: Repair instructions - off vehicle

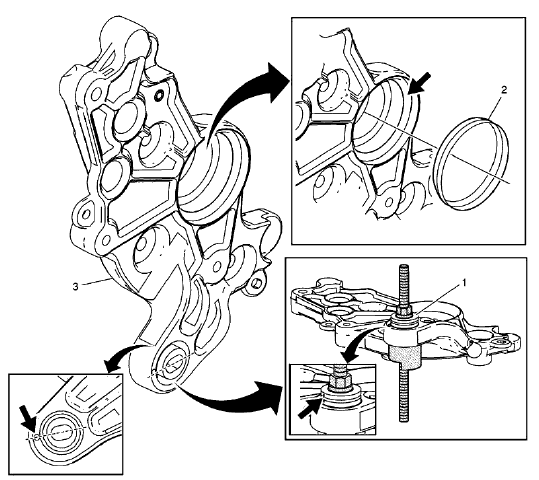

Transfer case adapter disassemble (MHB)

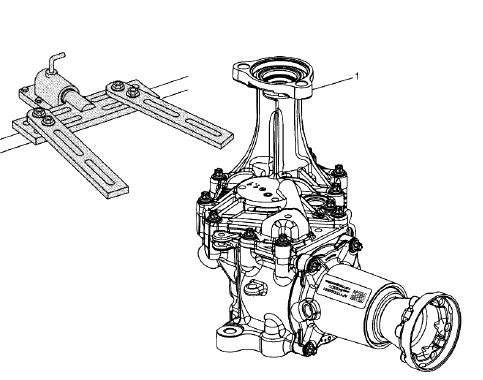

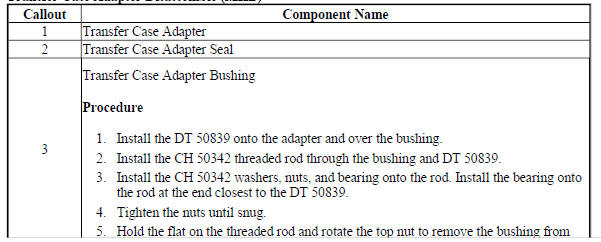

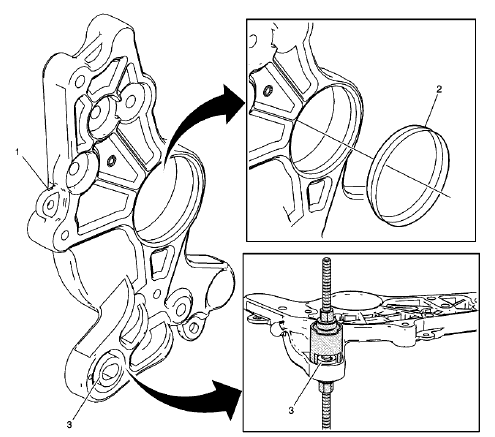

Fig. 40: Transfer Case Adapter (MHB)
Fig. 40: Transfer Case Adapter (MHB)

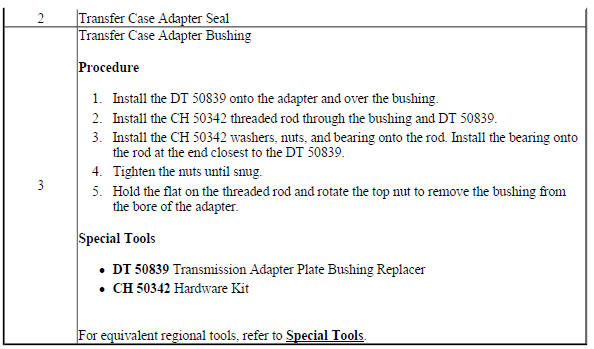

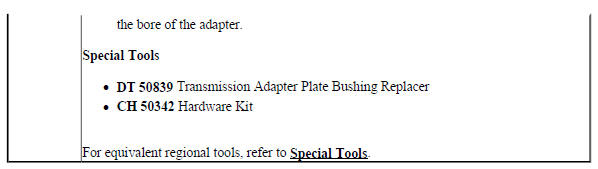

Transfer Case Adapter Disassemble (MHB)

Transfer Case Adapter Disassemble (MHB)

Transfer Case Adapter Disassemble (MHB)

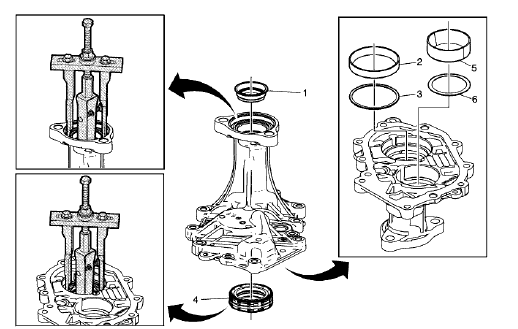

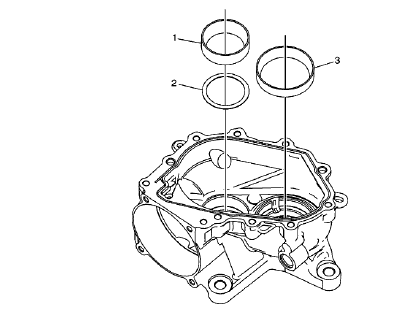

TRANSFER CASE ADAPTER DISASSEMBLE (M7Y, MZ4)

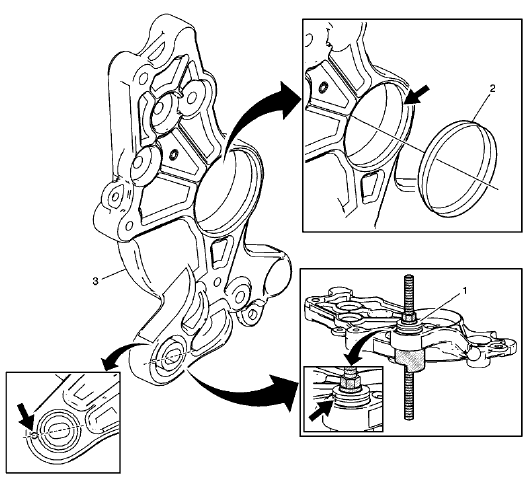

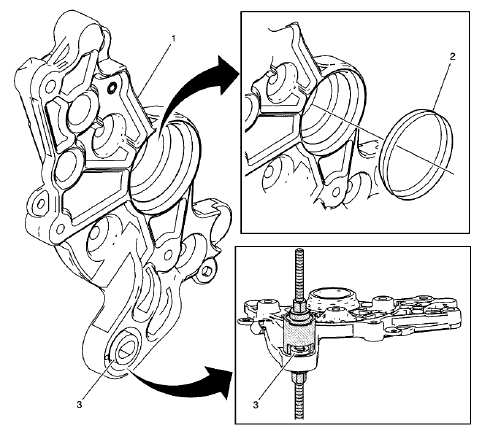

Fig. 41: Transfer Case Adapter (M7Y, MZ4)
Fig. 41: Transfer Case Adapter (M7Y, MZ4)

Transfer Case Adapter Disassemble (M7Y, MZ4)

Transfer Case Adapter Disassemble (M7Y, MZ4)

Transfer Case Adapter Disassemble (M7Y, MZ4)

TRANSFER CASE DISASSEMBLE

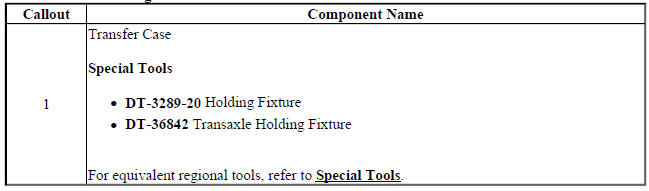

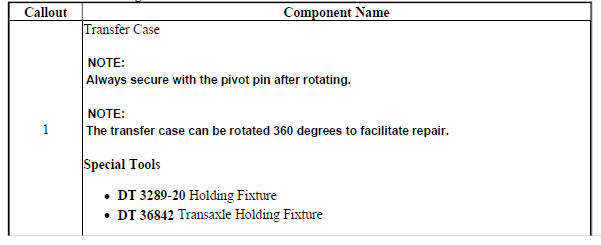

Transfer Case Holding Fixture Installation

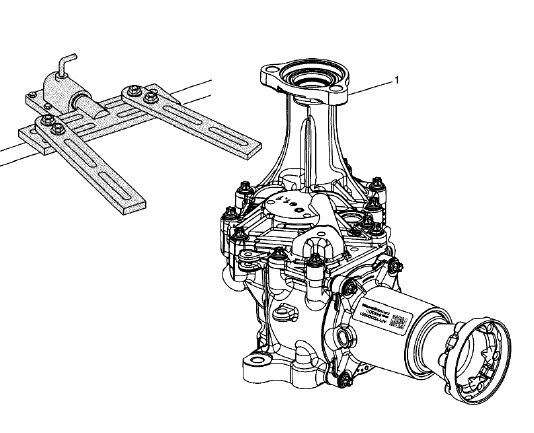

Fig. 42: Transfer Case Holding Fixture
Fig. 42: Transfer Case Holding Fixture

Transfer Case Holding Fixture Installation

Transfer Case Holding Fixture Installation

Transfer Case Holding Fixture Installation

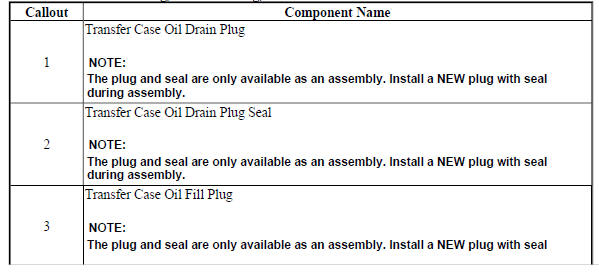

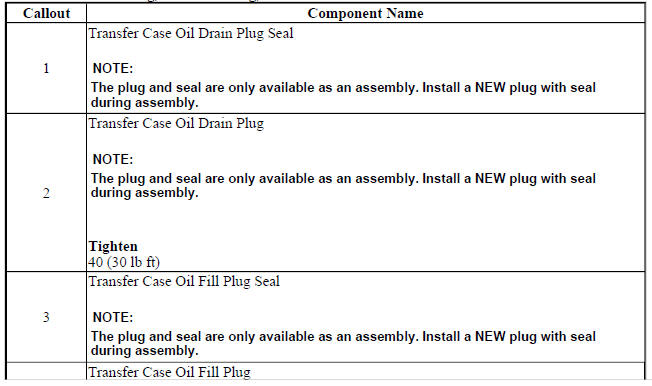

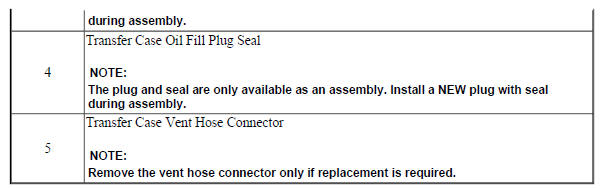

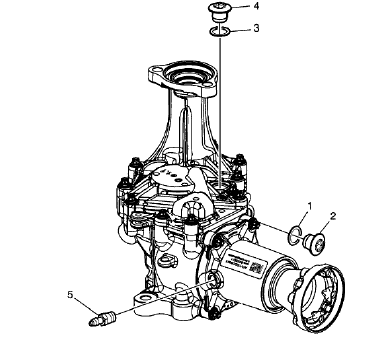

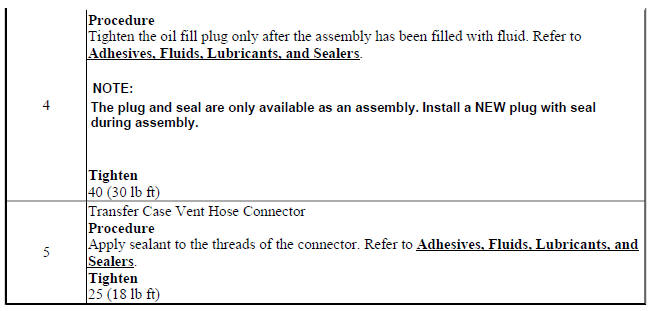

Transfer Case Oil Fill Plug, Oil Drain Plug, and Vent Hose Connector Removal

Fig. 43: Transfer Case Oil Fill Plug, Oil Drain Plug And Vent Hose Connector
Fig. 43: Transfer Case Oil Fill Plug, Oil Drain Plug And Vent Hose Connector

Transfer Case Oil Fill Plug, Oil Drain Plug, and Vent Hose Connector Removal

Transfer Case Oil Fill Plug, Oil Drain Plug, and Vent Hose Connector Removal

Transfer Case Oil Fill Plug, Oil Drain Plug, and Vent Hose Connector Removal

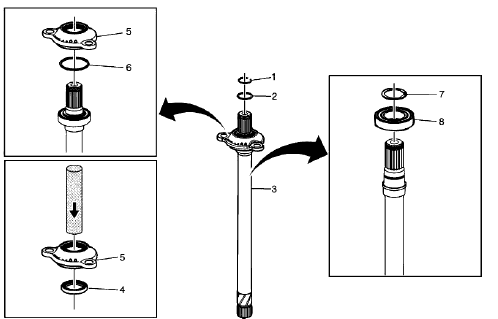

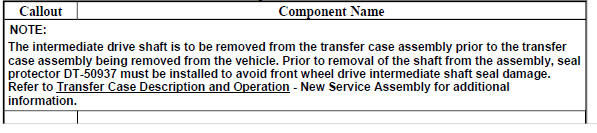

Front Wheel Drive Intermediate Shaft Components Removal

Fig. 44: Front Wheel Drive Intermediate Shaft Components
Fig. 44: Front Wheel Drive Intermediate Shaft Components

Front Wheel Drive Intermediate Shaft Components Removal

Front Wheel Drive Intermediate Shaft Components Removal

Front Wheel Drive Intermediate Shaft Components Removal

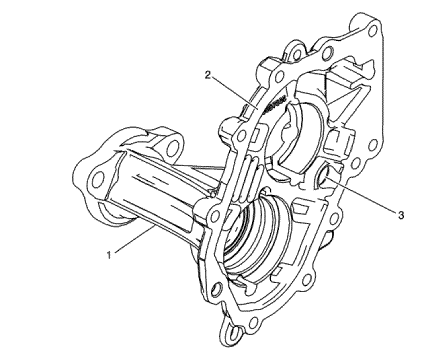

Transfer Case Rear Output Shaft Housing Removal

Fig. 45: Transfer Case Rear Output Shaft Housing
Fig. 45: Transfer Case Rear Output Shaft Housing

Transfer Case Rear Output Shaft Housing Removal

Transfer Case Rear Output Shaft Housing Removal

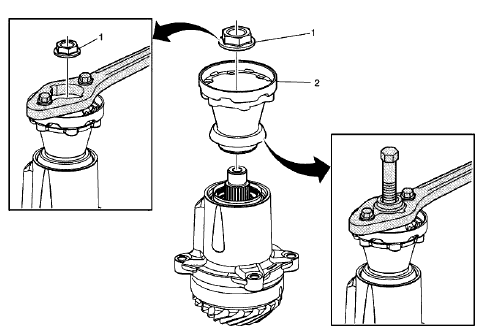

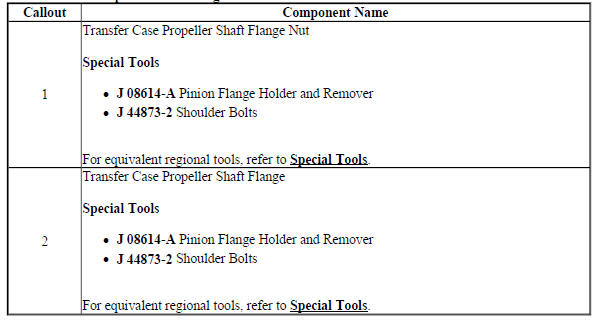

Transfer Case Propeller Shaft Flange Removal

Fig. 46: Transfer Case Propeller Shaft Flange And Special Tools
Fig. 46: Transfer Case Propeller Shaft Flange And Special Tools

Transfer Case Propeller Shaft Flange Removal

Transfer Case Propeller Shaft Flange Removal

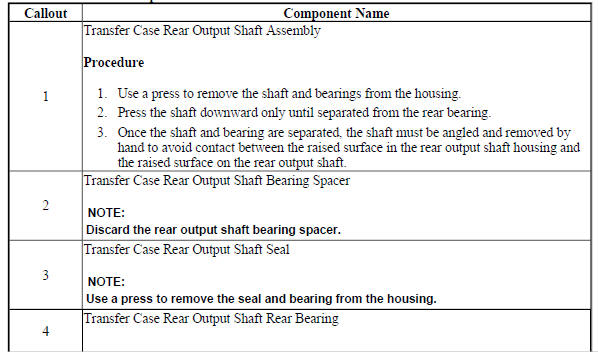

Transfer Case Rear Output Shaft Removal

Fig. 47: Transfer Case Rear Output Shaft And Special Tools
Fig. 47: Transfer Case Rear Output Shaft And Special Tools

Transfer Case Rear Output Shaft Removal

Transfer Case Rear Output Shaft Removal

Transfer Case Rear Output Shaft Removal

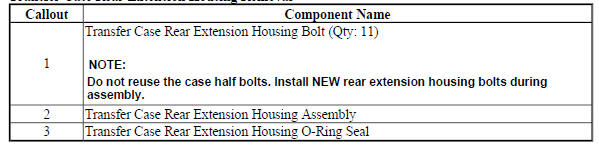

Transfer Case Rear Extension Housing Removal

Fig. 48: Transfer Case Rear Extension Housing
Fig. 48: Transfer Case Rear Extension Housing

Transfer Case Rear Extension Housing Removal

Transfer Case Rear Extension Housing Removal

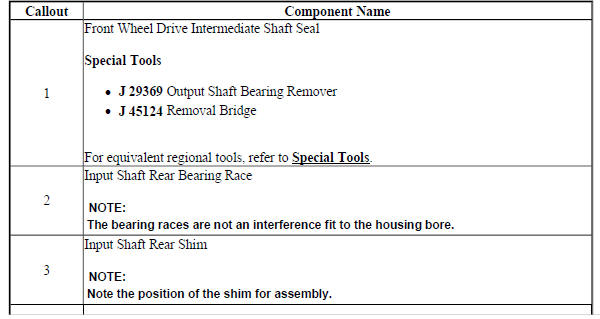

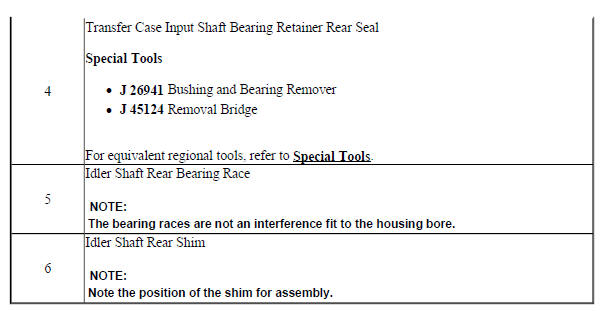

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Removal

Fig. 49: Transfer Case Input Shaft Bearing Retainer Rear Seal And Front Wheel Drive Intermediate Shaft Seal
Fig. 49: Transfer Case Input Shaft Bearing Retainer Rear Seal And Front Wheel Drive Intermediate Shaft Seal

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Removal

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Removal

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Removal

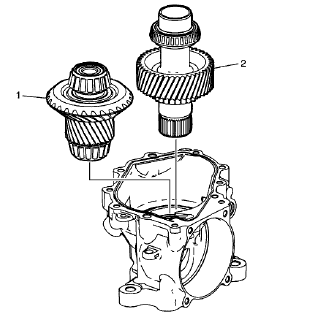

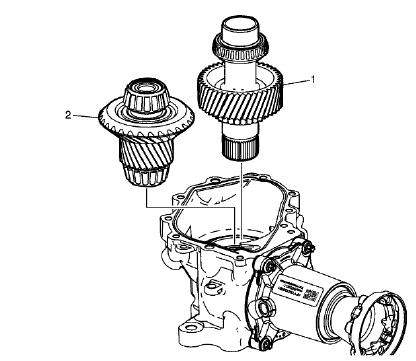

Idler Shaft and Input Shaft Removal

Fig. 50: Idler Shaft and Input Shaft
Fig. 50: Idler Shaft and Input Shaft

Idler Shaft and Input Shaft Removal

Idler Shaft and Input Shaft Removal

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Removal

Fig. 51: Transfer Case Input Shaft Bearing Race And Idler Shaft Bearing Race
Fig. 51: Transfer Case Input Shaft Bearing Race And Idler Shaft Bearing Race

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Removal

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Removal

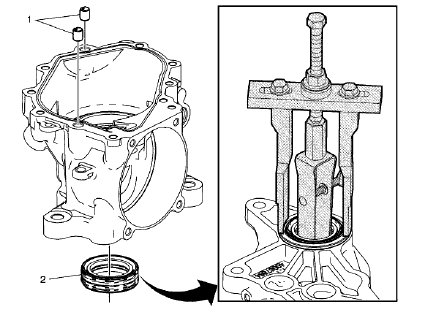

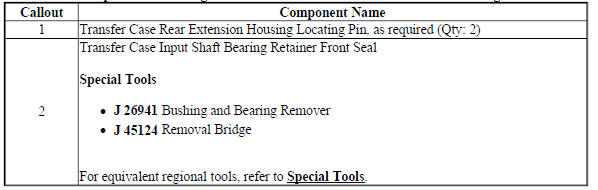

Transfer Case Input Shaft Bearing Retainer Front Seal and Rear Extension Locating Pin Removal

Fig. 52: Input Shaft Bearing Retainer Front Seal, Rear Extension Locating Pin And Remover
Fig. 52: Input Shaft Bearing Retainer Front Seal, Rear Extension Locating Pin And Remover

Transfer Case Input Shaft Bearing Retainer Front Seal and Rear Extension Locating Pin Removal

Transfer Case Input Shaft Bearing Retainer Front Seal and Rear Extension Locating Pin Removal

Transfer case cleaning and inspection

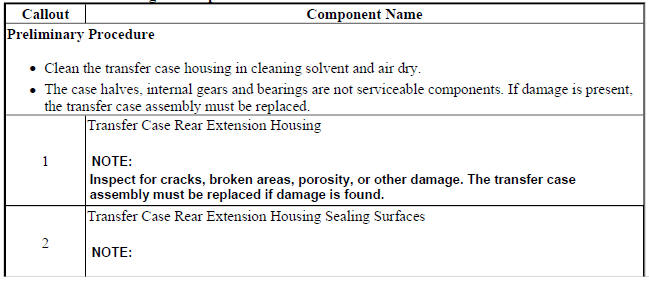

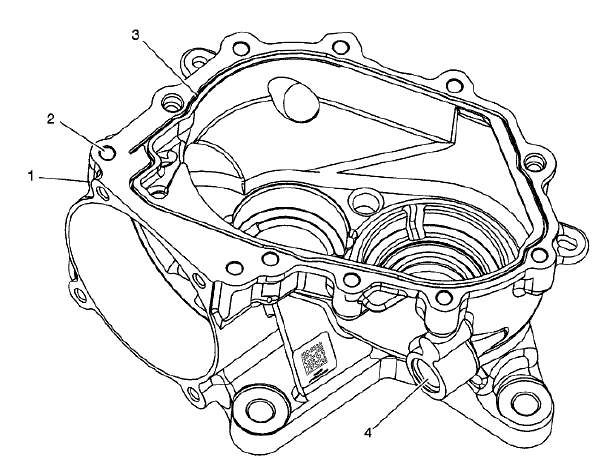

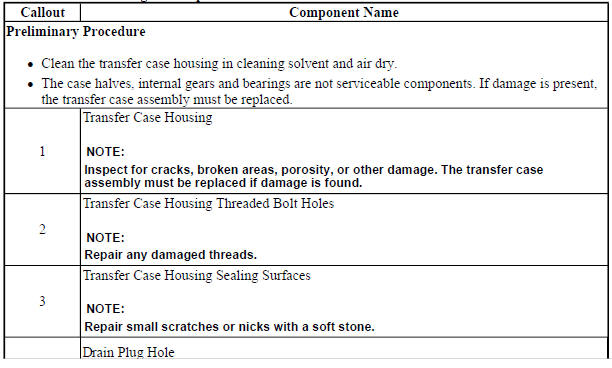

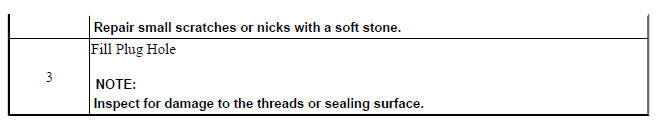

Transfer Case Housing Cleaning and Inspection

Fig. 53: Transfer Case Housing Cleaning And Inspection Points
Fig. 53: Transfer Case Housing Cleaning And Inspection Points

Transfer Case Cleaning and Inspection

Transfer Case Cleaning and Inspection

Transfer Case Cleaning and Inspection

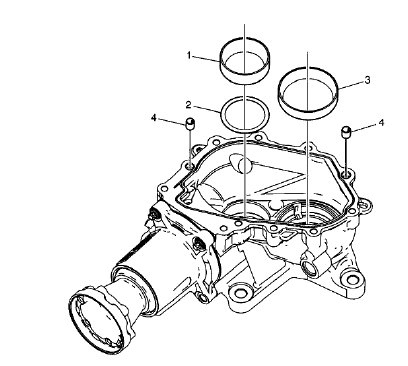

Transfer Case Rear Extension Housing Cleaning and Inspection

Fig. 54: Transfer Case Rear Extension Housing Cleaning And Inspection Areas
Fig. 54: Transfer Case Rear Extension Housing Cleaning And Inspection Areas

Transfer Case Cleaning and Inspection

Transfer Case Cleaning and Inspection

Transfer Case Cleaning and Inspection

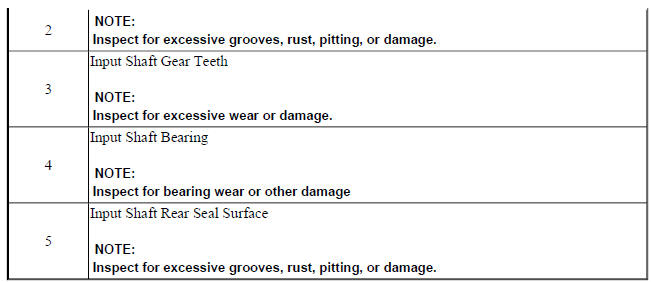

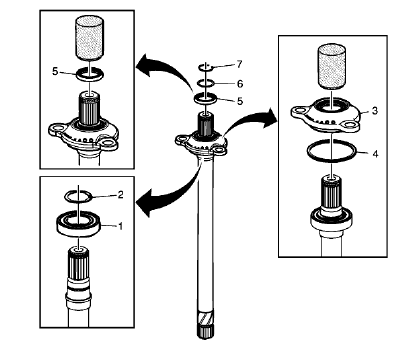

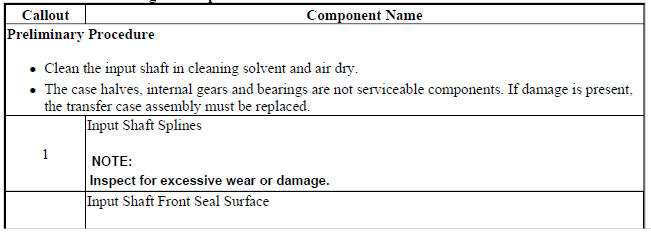

Input Shaft Cleaning and Inspection

Fig. 55: Input Shaft Inspection Points
Fig. 55: Input Shaft Inspection Points

Transfer Case Cleaning and Inspection

Input Shaft Cleaning and Inspection

Input Shaft Cleaning and Inspection

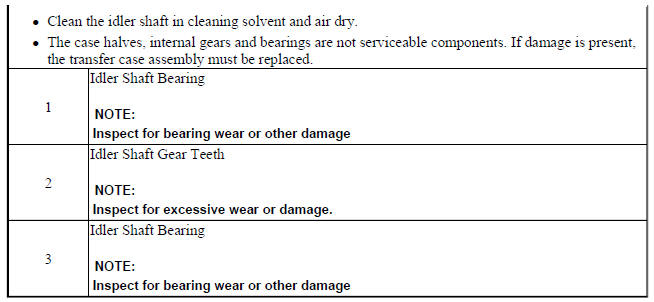

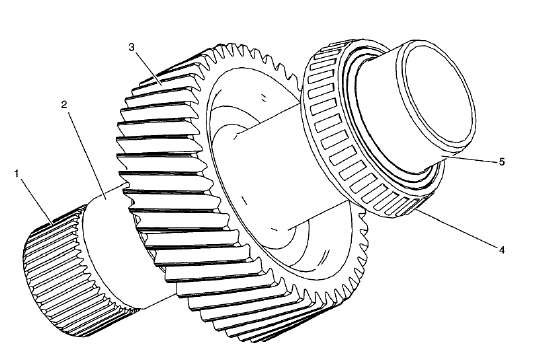

Idler Shaft Cleaning and Inspection

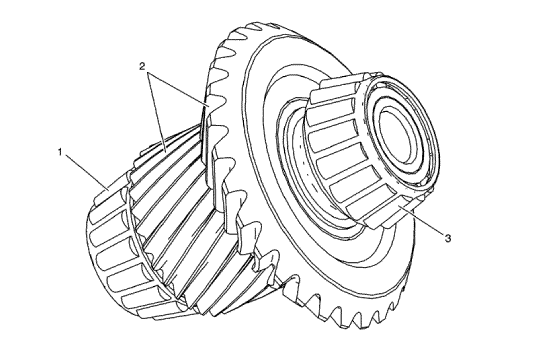

Fig. 56: Idler Shaft Inspection Points
Fig. 56: Idler Shaft Inspection Points

Transfer Case Cleaning and Inspection

Idler Shaft Cleaning and Inspection

Idler Shaft Cleaning and Inspection

TRANSFER CASE ASSEMBLE

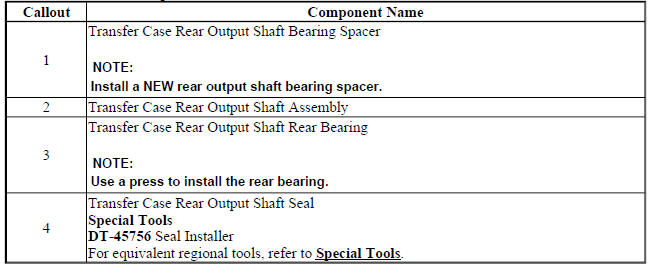

Transfer Case Rear Output Shaft Installation

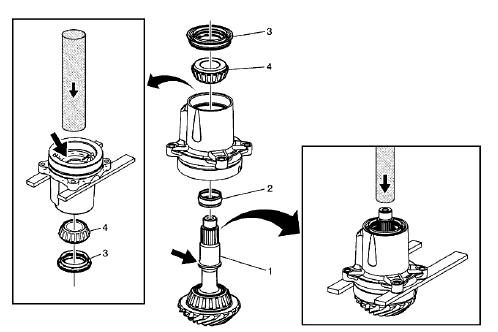

Fig. 57: Transfer Case Rear Output Shaft
Fig. 57: Transfer Case Rear Output Shaft

Transfer Case Rear Output Shaft Installation

Transfer Case Rear Output Shaft Installation

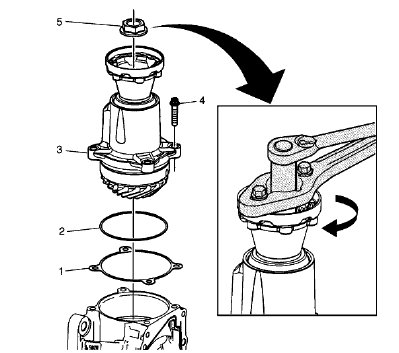

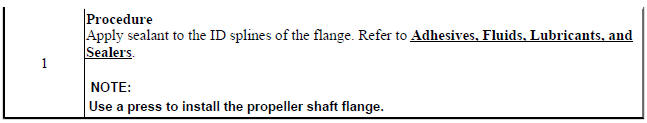

Transfer Case Propeller Shaft Flange Installation

Fig. 58: Transfer Case Propeller Shaft Flange
Fig. 58: Transfer Case Propeller Shaft Flange

Transfer Case Propeller Shaft Flange Installation

Transfer Case Propeller Shaft Flange Installation

Transfer Case Propeller Shaft Flange Installation

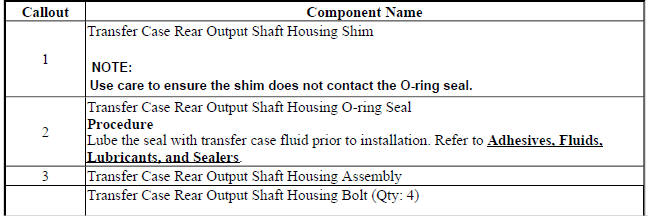

Transfer Case Rear Output Shaft Housing Installation

Fig. 59: Transfer Case Rear Output Shaft Housing
Fig. 59: Transfer Case Rear Output Shaft Housing

Transfer Case Rear Output Shaft Housing Installation

Transfer Case Rear Output Shaft Housing Installation

Transfer Case Rear Output Shaft Housing Installation

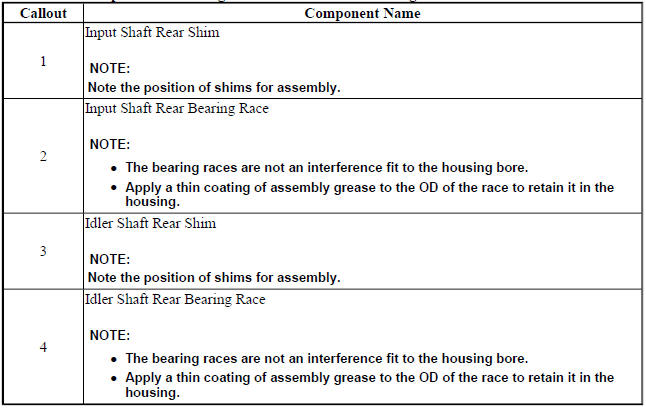

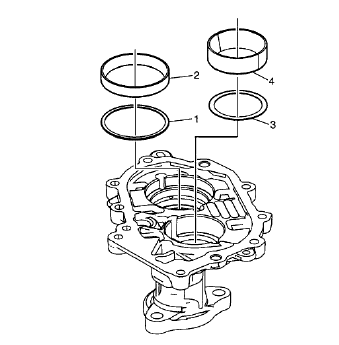

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Fig. 60: Input Shaft Bearing Race And Idler Shaft Bearing Race
Fig. 60: Input Shaft Bearing Race And Idler Shaft Bearing Race

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Idler Shaft and Input Shaft Installation

Fig. 61: Idler Shaft and Input Shaft
Fig. 61: Idler Shaft and Input Shaft

Idler Shaft and Input Shaft Installation

Idler Shaft and Input Shaft Installation

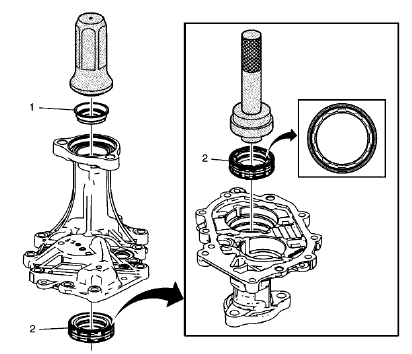

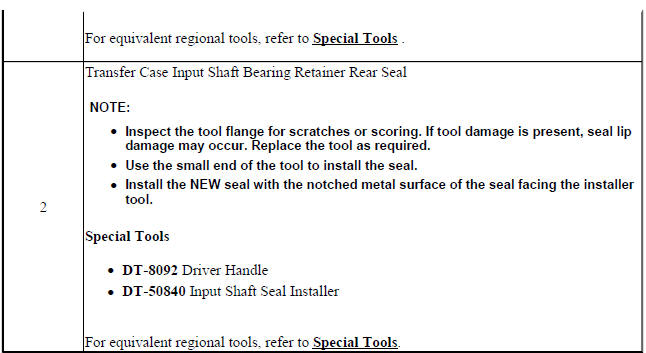

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Installation

Fig. 62: Input Shaft Bearing Retainer Rear Seal And Front Wheel Drive Intermediate Shaft Seal
Fig. 62: Input Shaft Bearing Retainer Rear Seal And Front Wheel Drive Intermediate Shaft Seal

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Installation

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Installation

Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Installation

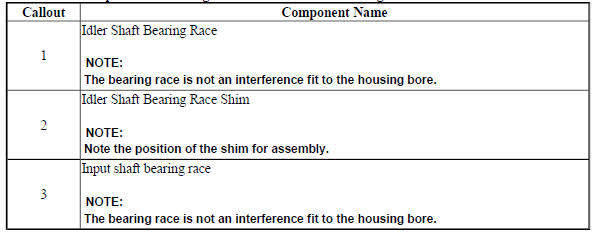

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Fig. 63: Input Shaft Bearing Race and Idler Shaft Bearing Race
Fig. 63: Input Shaft Bearing Race and Idler Shaft Bearing Race

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

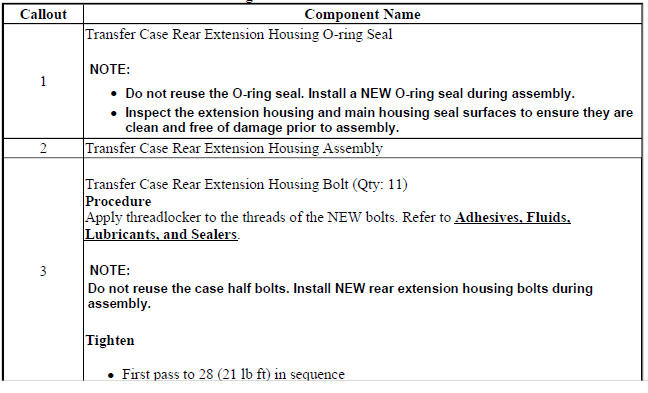

Transfer Case Rear Extension Housing Installation

Fig. 64: Transfer Case Rear Extension Housing
Fig. 64: Transfer Case Rear Extension Housing

Transfer Case Rear Extension Housing Installation

Transfer Case Rear Extension Housing Installation

Transfer Case Rear Extension Housing Installation

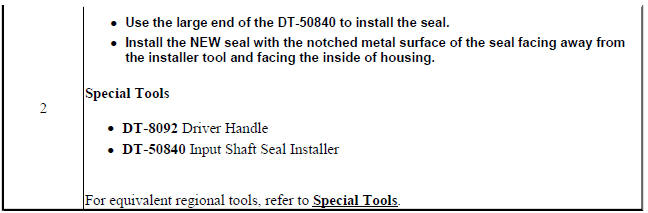

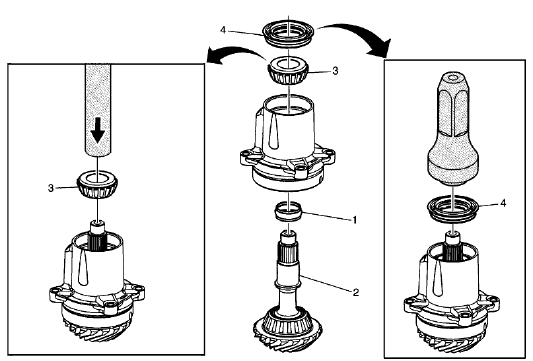

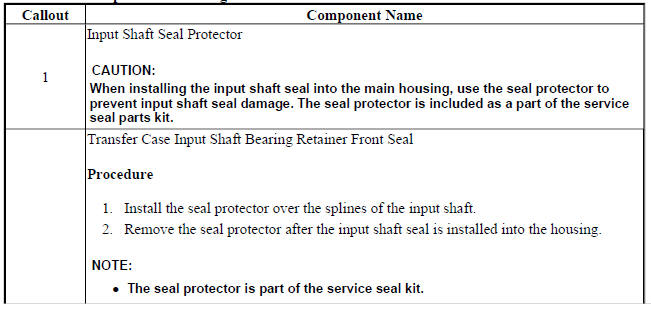

Transfer Case Input Shaft Bearing Retainer Front Seal Installation

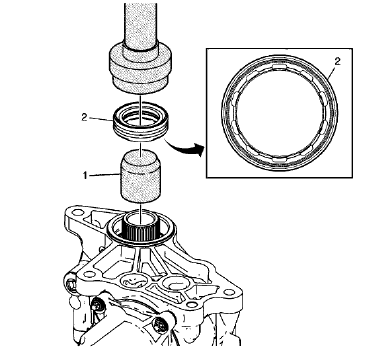

Fig. 65: Input Shaft Bearing Retainer Front Seal And Special Tools
Fig. 65: Input Shaft Bearing Retainer Front Seal And Special Tools

Transfer Case Input Shaft Bearing Retainer Front Seal Installation

Transfer Case Input Shaft Bearing Retainer Front Seal Installation

Transfer Case Input Shaft Bearing Retainer Front Seal Installation

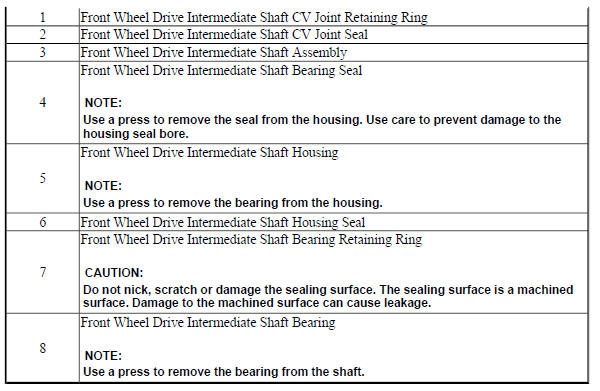

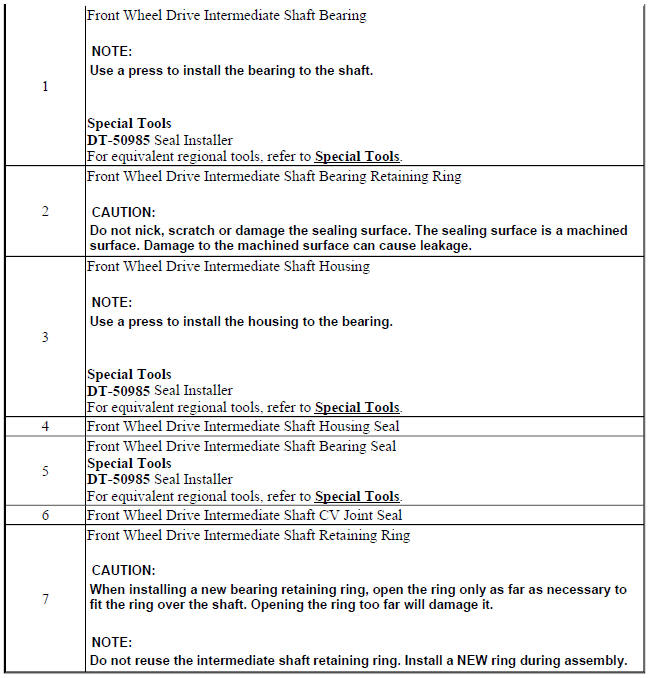

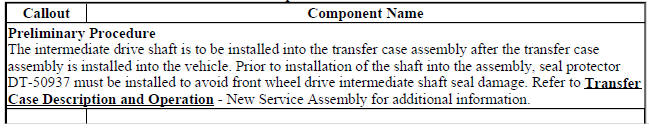

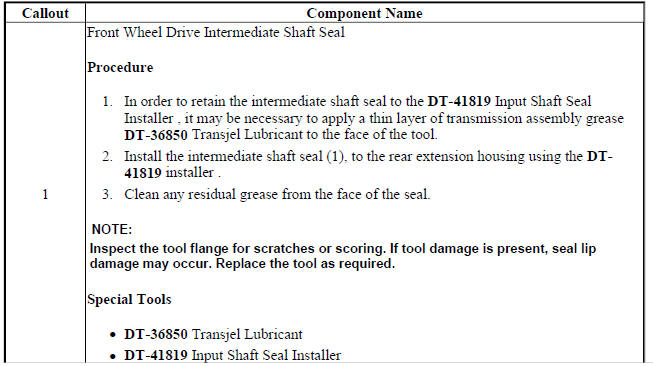

Front Wheel Drive Intermediate Shaft Components Installation

Fig. 66: Front Wheel Drive Intermediate Shaft Components
Fig. 66: Front Wheel Drive Intermediate Shaft Components

Front Wheel Drive Intermediate Shaft Components Installation

Front Wheel Drive Intermediate Shaft Components Installation

Front Wheel Drive Intermediate Shaft Components Installation

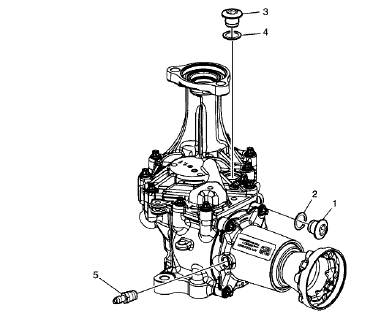

Transfer Case Fill Plug, Oil Drain Plug, and Vent Hose Connector Installation

Fig. 67: Transfer Case Fill Plug, Oil Drain Plug And Vent Hose Connector
Fig. 67: Transfer Case Fill Plug, Oil Drain Plug And Vent Hose Connector

Transfer Case Fill Plug, Oil Drain Plug, and Vent Hose Connector Installation

Transfer Case Fill Plug, Oil Drain Plug, and Vent Hose Connector Installation

Transfer Case Fill Plug, Oil Drain Plug, and Vent Hose Connector Installation

Transfer Case Holding Fixture Removal

Fig. 68: Transfer Case Holding Fixture
Fig. 68: Transfer Case Holding Fixture

Transfer Case Holding Fixture Removal

Transfer Case Holding Fixture Removal

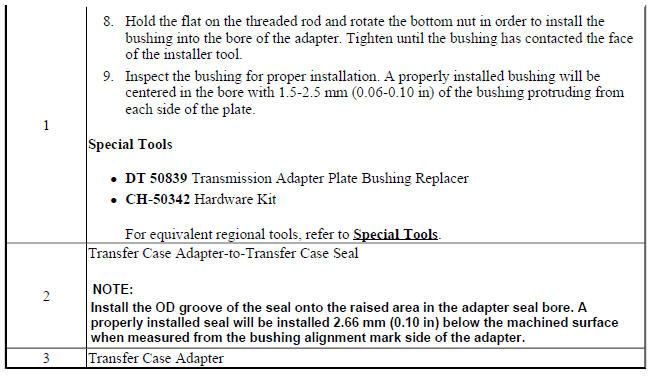

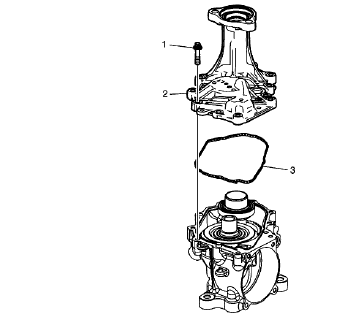

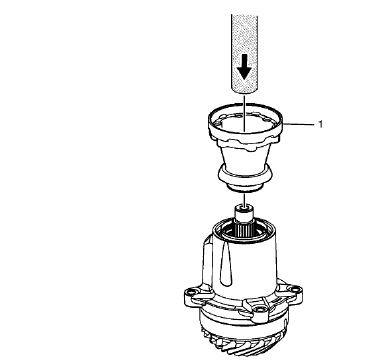

Transfer case adapter assemble (MHB)

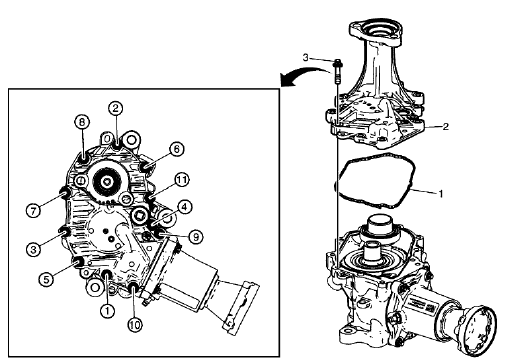

Fig. 69: Transfer Case Adapter (MHB)
Fig. 69: Transfer Case Adapter (MHB)

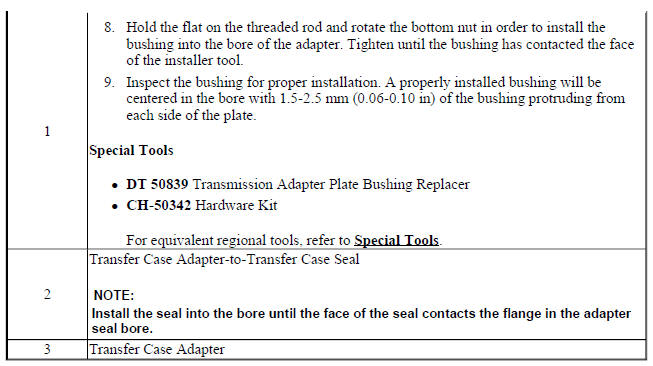

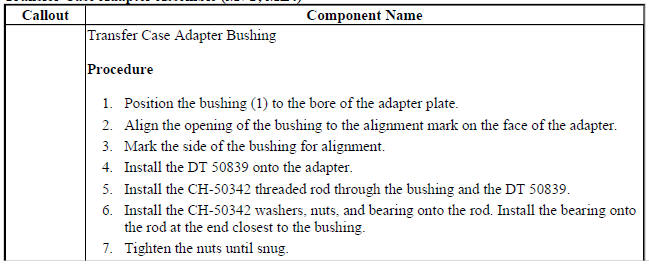

Transfer Case Adapter Assemble (MHB)

Transfer case adapter assemble (MHB)

Transfer case adapter assemble (MHB)

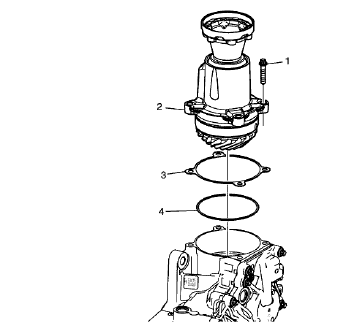

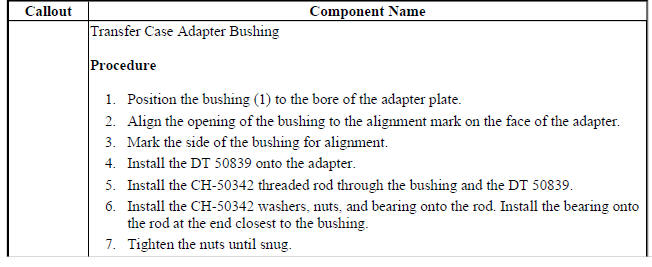

TRANSFER CASE ADAPTER ASSEMBLE (M7Y, MZ4)

Fig. 70: Transfer Case Adapter (M7Y, MZ4)
Fig. 70: Transfer Case Adapter (M7Y, MZ4)

Transfer Case Adapter Assemble (M7Y, MZ4)

Transfer Case Adapter Assemble (M7Y, MZ4)

Transfer Case Adapter Assemble (M7Y, MZ4)
