Buick Encore: Transfer Case - AAM

SPECIFICATIONS

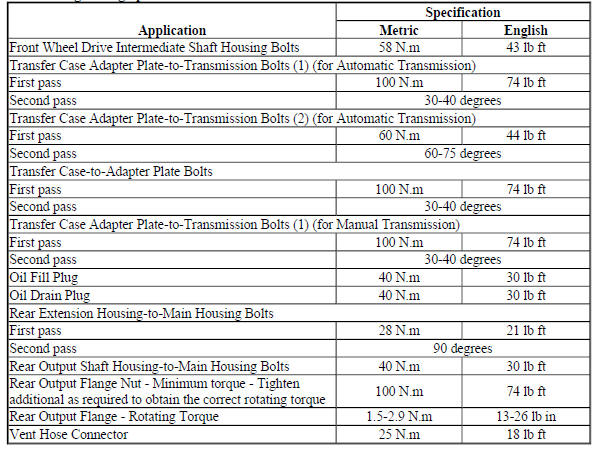

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

Fastener Tightening Specifications

APPROXIMATE FLUID CAPACITIES

Approximate Fluid Capacities

APPROXIMATE FLUID CAPACITIES

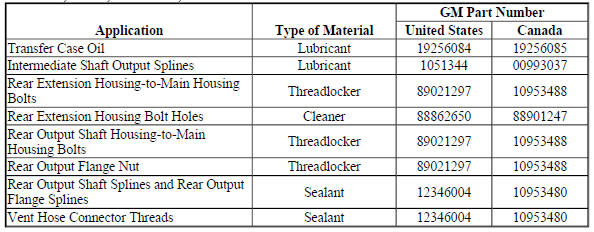

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Adhesives, Fluids, Lubricants, and Sealers

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

COMPONENT LOCATOR

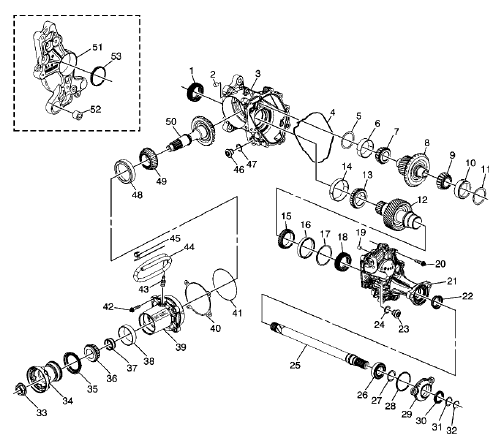

TRANSFER CASE DISASSEMBLED VIEW

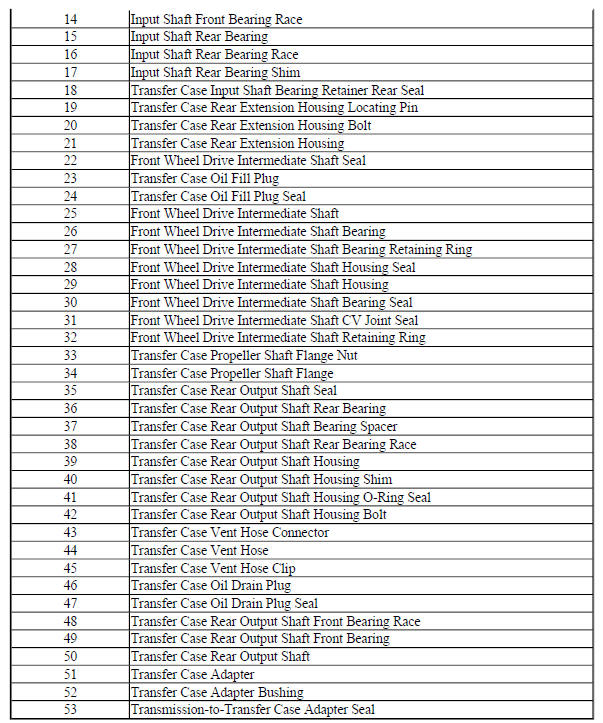

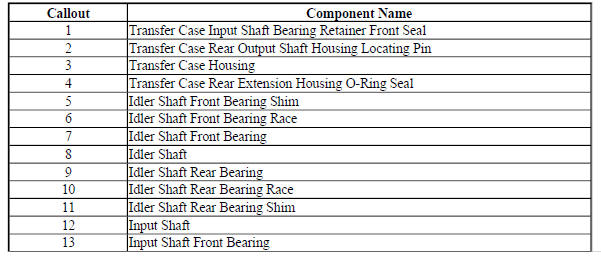

Fig. 1: Transfer Case Components
Fig. 1: Transfer Case Components

TRANSFER CASE DISASSEMBLED VIEW

TRANSFER CASE DISASSEMBLED VIEW
