Buick Encore: Schematic wiring diagrams

Buick Encore 2012-2019 Service Manual / Suspension & Steering / Power Steering / Schematic wiring diagrams

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

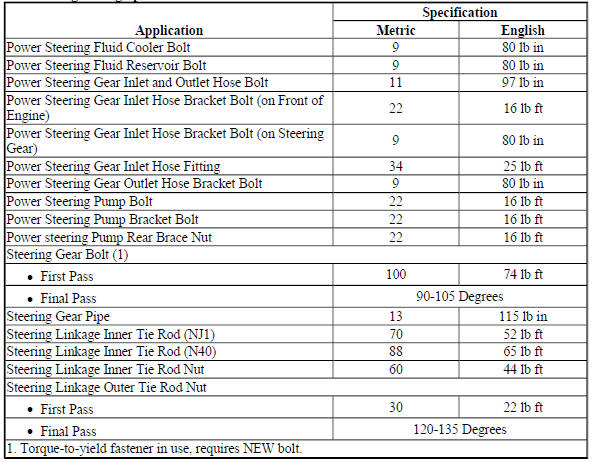

Fastener Tightening Specifications

Fastener Tightening Specifications

POWER STEERING PUMP SPECIFICATIONS

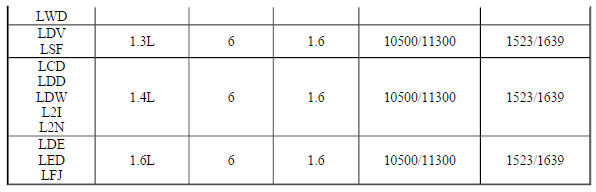

Power Steering Pump Specifications

Power Steering Pump Specifications

Power Steering Pump Specifications

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Adhesives, Fluids, Lubricants, and Sealers

Adhesives, Fluids, Lubricants, and Sealers

SCHEMATIC WIRING DIAGRAMS

POWER STEERING WIRING SCHEMATICS (ENCORE)

Power Steering System

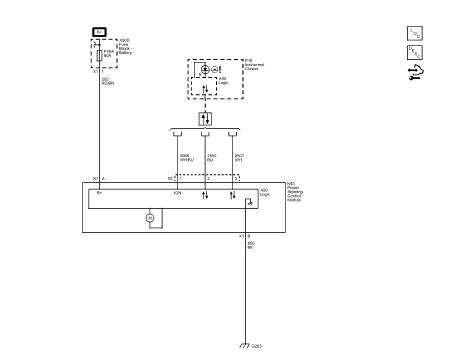

Fig. 1: Power Steering System
Fig. 1: Power Steering System

POWER STEERING WIRING SCHEMATICS (Encore)

Power Steering System

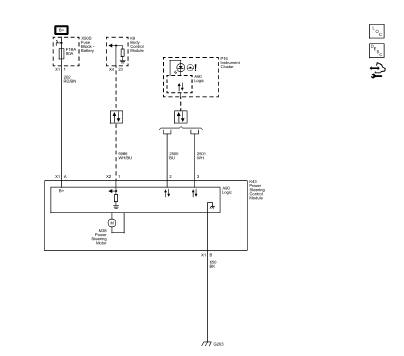

Fig. 2: Power Steering System
Fig. 2: Power Steering System
