Buick Encore: Steering Wheel Adjustment

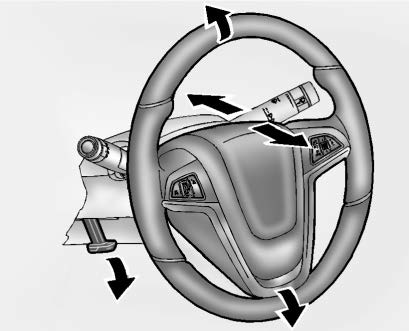

To adjust the steering wheel:
- Pull the lever down.
- Move the steering wheel up
or down.
- Pull or push the steering wheel
closer or away from you.
- Lift the lever up to lock the
steering wheel in place.
Do not adjust the steering wheel
while driving.
Steering Wheel Controls
The infotainment system can be
operated by using the steering
wheel controls. See "Steering Wheel
Controls" in the infotainment
manual.

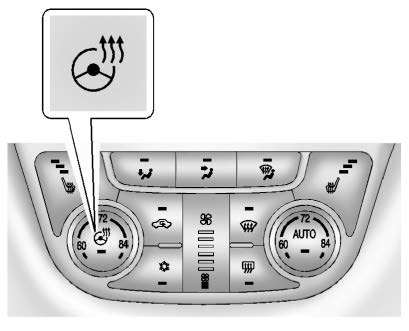

Heated Steering Wheel
: If equipped, press to turn on
or
off. A light on the button displays
when the feature is turned on.
The steering wheel takes about
three minutes to start heating.
Horn
Pressaon the steering wheel pad
to sound the horn.
