DTC B1405: Control module voltage reference output 2

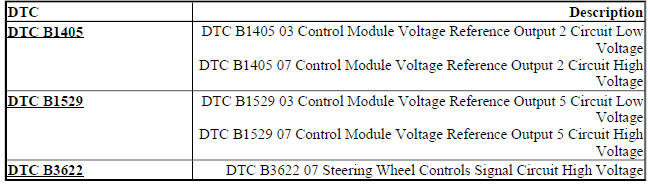

DIAGNOSTIC CODE INDEX

DIAGNOSTIC CODE INDEX

DTC B1405: CONTROL MODULE VOLTAGE REFERENCE OUTPUT 2

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B1405 03

Control Module Voltage Reference Output 2 Circuit Low Voltage

DTC B1405 07

Control Module Voltage Reference Output 2 Circuit High Voltage

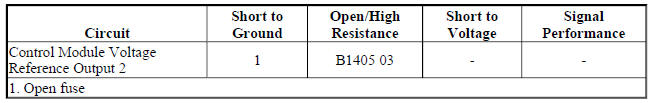

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The body control module (BCM) monitors the system voltage to make sure that the voltage stays within the proper range. Damage to components and/or incorrect operation can occur when the voltage is out of range.

Conditions for Running the DTC

  • Battery voltage is between 9-16 V.
  • The ignition is ON.

Conditions for Setting the DTC

The BCM detects a low/high voltage on the control circuit.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction free ignition cycles have occurred.

Reference Information

Schematic Reference

Steering Wheel Secondary/Configurable Control Schematics (Encore), Steering Wheel Secondary/Configurable Control Schematics (Encore)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - Encore

Description and Operation

Steering Wheel Controls Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References

Circuit/System Verification

Engine running, accessories OFF, measure and record the battery voltage at the battery terminals. The voltage should be between 12.6-15.0 V.

  • If not within the specified range, refer to Charging System Test .

Circuit/System Testing

  1. Ignition OFF, disconnect the X2 and the X1 harness connector at the K9 Body Control Module.
  2. Test for less than 5 ohms between the X2 harness connector ground circuit terminal 2 and ground.
  • If greater than the specified range, test the ground circuit for an open/high resistance.
  1. Test for less than 5 ohms between the X1 harness connector ground circuit terminal 1 and ground.
  • If greater than the specified range, test the ground circuit for an open/high resistance.
  1. Ignition ON, test for more than 11 V between the X2 harness connector terminal 1 and ground.
  • If less than the specified value test the control circuit for an open/high resistance.
  1. If all circuits test normal, replace the K9 Body Control Module.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure.

Control Module References for BCM replacement, setup, and programming

DTC B1529: Control module voltage reference output 5

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B1529 03

Control Module Voltage Reference Output 5 Circuit Low Voltage

DTC B1529 07

Control Module Voltage Reference Output 5 Circuit High Voltage

Diagnostic Fault Information

Electrical DTCs

Electrical DTCs

Circuit/System Description

The body control module (BCM) supplies voltage to the steering wheel control switches and monitors the return signal. Each switch state is associated to a set resistance value and when pressed a specific voltage drop occurs across the resistor unique to the switch. The BCM identifies the switch selection and activates the feature.

Conditions for Running the DTC

  • The system voltage is between 9-16 V.
  • The ignition is ON.

Conditions for Setting the DTC

B1529 03

  • The BCM detects a short to ground in the 12 V reference circuit.
  • The above condition is present for greater than 30 s.

B1529 07

  • The BCM detects a short to voltage in the 12 V reference circuit.
  • The above condition is present for greater than 30 seconds.

Action Taken When the DTC Sets

The BCM will ignore switch inputs.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction free ignition cycles have occurred.

Reference Information

Schematic Reference

Steering Wheel Secondary/Configurable Control Schematics (Encore), Steering Wheel Secondary/Configurable Control Schematics (Encore)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - Encore

Description and Operation

Steering Wheel Controls Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, disconnect the S70R Steering Wheel Controls Switch - Right.
  2. Ignition ON, test for greater than 11 V between the voltage reference circuit terminal 1 and ground.
  • If less than the specified value, test the voltage reference circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K9 Body Control Module.
  1. Test for greater than 11 V between the voltage reference circuit terminal 1 and the signal circuit terminal 2.
  • If less than the specified value, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the K9 Body Control Module.
  1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the signal circuit terminal 2 at the S70R Steering Wheel Controls Switch - Right and ground.
  • If less than the specified value, test the signal circuit for a short to ground.
  1. If all circuits test normal, test or replace the S70R Steering Wheel Controls Switch - Right.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure.

Control Module References for BCM replacement, setup, and programming

DTC B3622: Steering wheel controls signal circuit high voltage

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B3622 07

Steering Wheel Controls Signal Circuit High Voltage

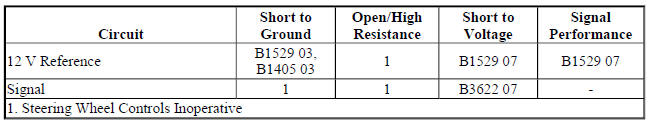

Diagnostic Fault Information

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The body control module (BCM) monitors the steering wheel control signal circuit voltage. If the voltage level is too high, damage may result in the system. When a high voltage condition is detected, the BCM will ignore the switch command.

Conditions for Running the DTC

  • Battery voltage is between 9-16 V.
  • The ignition is ON.

Conditions for Setting the DTC

The BCM detects a short to voltage in the steering wheel control switch signal circuit.

Action Taken When the DTC Sets

The BCM will ignore switch inputs.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction free ignition cycles have occurred.

Reference Information

Schematic Reference

Steering Wheel Secondary/Configurable Control Schematics (Encore), Steering Wheel Secondary/Configurable Control Schematics (Encore)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - Encore

Description and Operation

Steering Wheel Controls Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, disconnect the S70R Steering Wheel Controls Switch - Right.
  2. Ignition ON, test for greater than 11 V between the voltage reference circuit terminal 1 and ground.
  • If less than the specified value, test the voltage reference circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K9 Body Control Module.
  1. Test for greater than 11 V between the voltage reference circuit terminal 1 and the signal circuit terminal 2.
  • If less than the specified value, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the K9 Body Control Module.
  1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the signal circuit terminal 2 at the S70R Steering Wheel Controls Switch - Right and ground.
  • If less than the specified value, test the signal circuit for a short to ground.
  1. If all circuits test normal, test or replace the S70R Steering Wheel Controls Switch - Right.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the diagnostic procedure.

Control Module References for BCM replacement, setup, and programming

SYMPTOMS - SECONDARY AND CONFIGURABLE CUSTOMER CONTROLS

NOTE: The following steps must be completed before using the symptom tables.

  1. Perform the Diagnostic System Check - Vehicle before using the symptom tables in order to verify that all of the following are true:
  • There are no DTCs set.
  • The control modules can communicate via the serial data link.
  1. Review the system description and operation in order to familiarize yourself with the system functions.

    Refer to Steering Wheel Controls Description and Operation.

Visual/Physical Inspection

  • Inspect for aftermarket devices which could affect the operation of the steering wheel controls. Refer to Checking Aftermarket Accessories .
  • Inspect the easily accessible or visible system components, for obvious damage or conditions, which could cause the symptom.

Intermittent

Faulty electrical connections or wiring may be the cause of intermittent conditions. Refer to Testing for Intermittent Conditions and Poor Connections .

Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom: Refer to Steering Wheel Controls Malfunction in order to diagnose the symptom.

Steering wheel controls malfunction

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

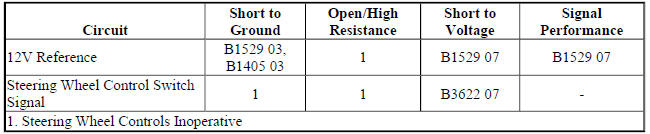

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The body control module (BCM) supplies voltage to the audio steering wheel control switches and monitors the return signal. Each switch state is associated to a set resistance value and when pressed a specific voltage drop occurs across the resistor unique to the switch. The BCM identifies the switch selection and activates the feature.

Reference Information

Schematic Reference

Steering Wheel Secondary/Configurable Control Schematics (Encore), Steering Wheel

Secondary/Configurable Control Schematics (Encore)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - Encore

Description and Operation

Steering Wheel Controls Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

  1. Ignition ON.
  2. Verify the primary controls of the associated component are functioning properly.
  • If any of the primary controls do not function properly

Refer to Symptoms - Entertainment , Symptoms - Entertainment

  • If all of the primary controls function properly
  1. Refer to Circuit/System Testing

Circuit/System Testing

  1. Ensure a battery charger is not connected to the battery.
  2. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the S70R Steering Wheel Controls Switch - Right, ignition ON.
  3. Test for 11-12.2 V between the reference voltage circuit terminal 1 and ground.
  • If less than 11 V
  1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the reference voltage circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the reference voltage circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If greater than 12.2 V
  1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the reference voltage circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If between 11-12.2 V
  1. Test for 11-12.2 V between the reference voltage circuit terminal 1 and signal circuit terminal 2.

If not between 11-12.2 V

  1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module.
  2. Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms replace the K9 Body Control Module.
  • If between 11-12.2 V
  1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the signal circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the S70R Steering Wheel Controls Switch - Right.

Component Testing

  1. Ignition OFF, disconnect the harness connector at the S70R Steering Wheel Controls Switch - Right.

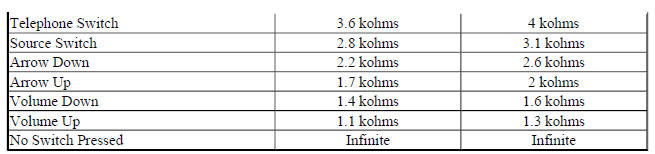

  2. Test the resistance between the signal terminal 2 and the reference voltage terminal 1 while pressing the appropriate steering wheel controls switch button listed below:
  • If not the specified value

Replace the S70R Steering Wheel Controls Switch - Right.

  • If the specified value
  1. All OK

Component Testing

Component Testing

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

Control Module References for BCM replacement, programming and setup.

    READ NEXT:

     Secondary and configurable customer controls - Description and operation

    STEERING WHEEL CONTROLS DESCRIPTION AND OPERATION Steering Wheel Controls Block Diagram Fig. 3: Steering Wheel Controls Block Diagram The steering wheel control switches duplicate the function of

     Sunroof

    SCHEMATIC WIRING DIAGRAMS SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS Fastener Tightening Specifications SCHEMATIC WIRING DIAGRAMS SUNROOF WIRING SCHEMATICS (ENCORE) Power Sunroof   SUN

     Sunroof - Diagnostic information and procedures

    DTC B3664: Sunroof position select switch DIAGNOSTIC CODE INDEX DTC B3664: SUNROOF POSITION SELECT SWITCH Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using thi

    SEE MORE:

     Ride Control Systems

    Traction Control/Electronic Stability Control System Operation The vehicle has a Traction Control System (TCS) and StabiliTrak/ Electronic Stability Control (ESC), an electronic stability control system. These systems help limit wheel slip and assist the driver in maintaining control, especially on

     Engine controls and fuel - 1.4l - Repair instructions

    Brake pedal position sensor learn Calibration Criteria NOTE: Do not apply the brake pedal during the brake pedal position sensor calibration procedure. Any movement of the brake pedal during this procedure will cause the calibration procedure to fail. If this occurs, the brake pedal position senso

    © 2020-2024 Copyright www.bencore2.com
