FIRING ORDER & CYLINDER IDENTIFICATION
NOTE: This information is intended as a quick reference for firing
order and cylinder
identification only. The information provided covers many vehicles and may
include some information that does not apply to the vehicle you have currently
selected.

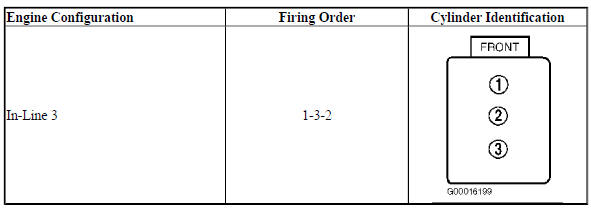

3 CYLINDER ENGINE
.jpg)

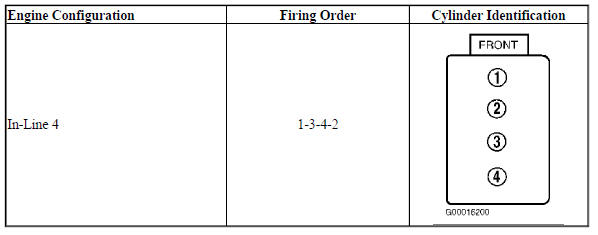

4 CYLINDER ENGINE
.jpg)

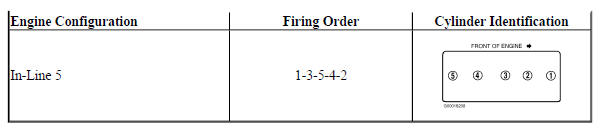

5 CYLINDER ENGINE
.jpg)

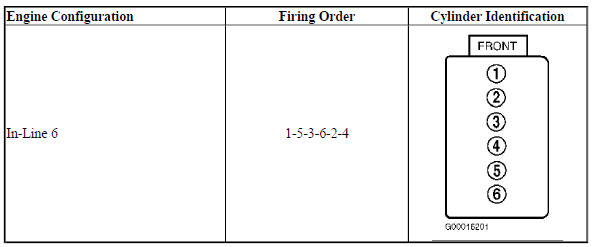

IN-LINE 6 ENGINE
.jpg)
V6 ENGINE

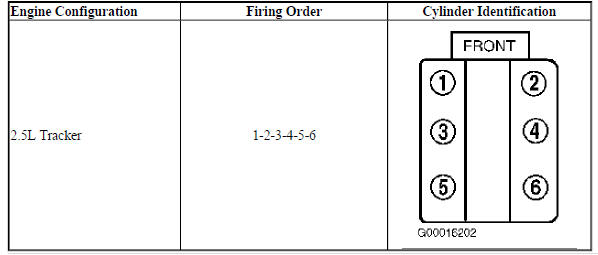

2.5L V6 Engine - Tracker
.jpg)

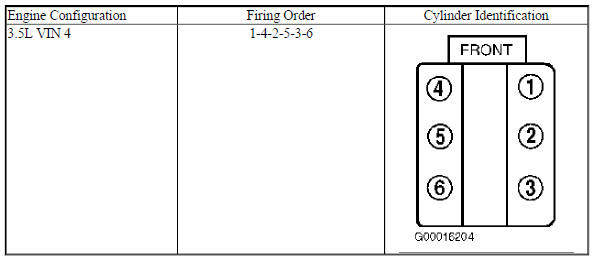

3.5L VIN 4 V6 Engine
.jpg)

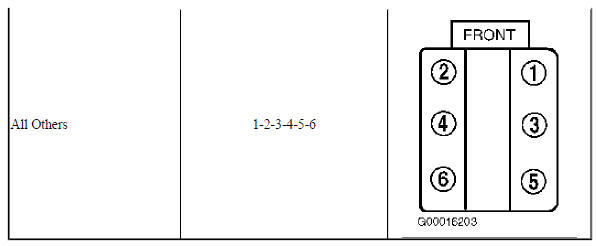

All Other V6 Engines
.jpg)
.jpg)
8 CYLINDER ENGINE

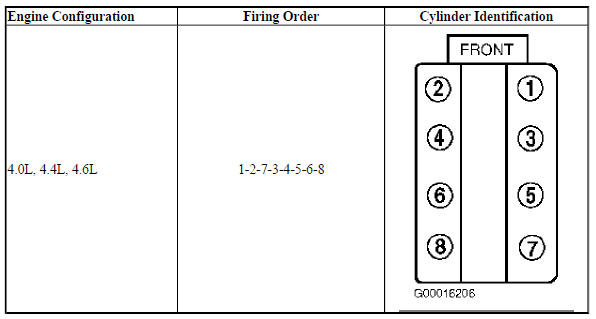

4.0L, 4.4L & 4.6L V8 Engines
.jpg)

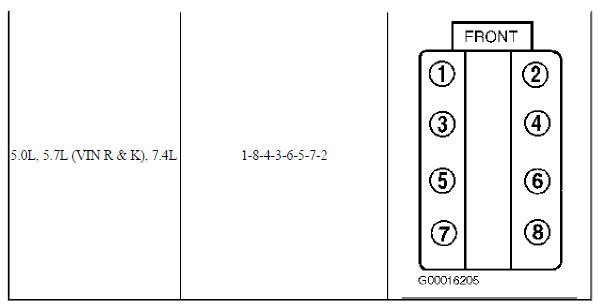

5.0L, 5.7L (VIN R & VIN K) & 7.4L V8 Engines
.jpg)
.jpg)

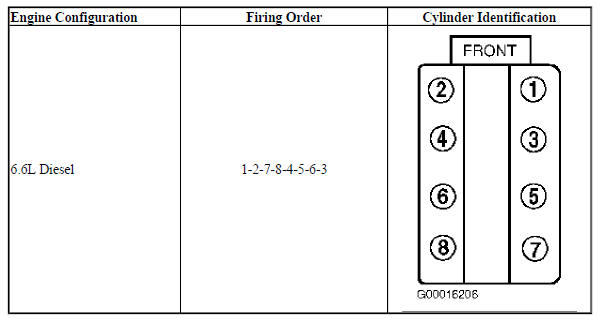

6.6L Diesel V8 Engine
.jpg)

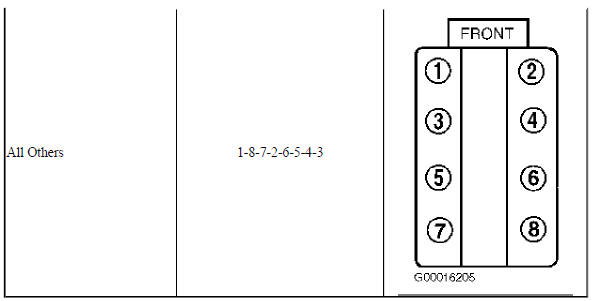

All Other V8 Engines
.jpg)
.jpg)
