Buick Encore: Instrument Cluster

Warning lights and gauges can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement. Paying attention to the warning lights and gauges could prevent injury.

Some warning lights come on briefly when the engine is started to indicate they are working. When one of the warning lights comes on and stays on while driving, or when one of the gauges shows there may be a problem, check the section that explains what to do. Waiting to do repairs can be costly and even dangerous.

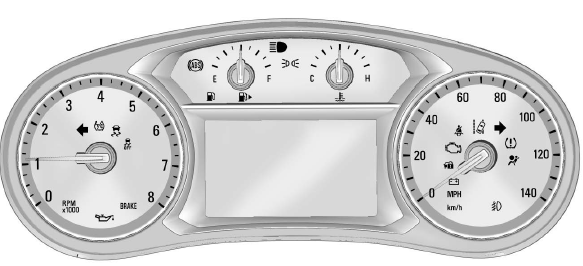

Instrument Cluster

English Shown, Metric Similar
English Shown, Metric Similar

Cluster Menu

There is an interactive display area in the center of the instrument cluster.

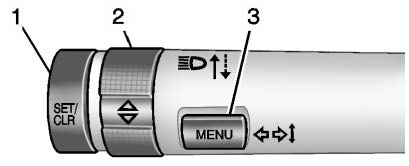

Cluster Menu

Use the controls to open and scroll through the different items and displays.

  1. SET/CLR : Press to set or clear the menu item when it is displayed.
  2. : Turn the band to scroll through the menu items.
  3. MENU: Press to access the cluster applications. This button is also used to return to or exit the last screen displayed on the DIC.

Press MENU to access the cluster applications. Use to scroll through the list of available applications. Not all applications will be available on all vehicles.

  • Info app. This is where you can view the selected Driver Information Center (DIC) displays. See Driver Information Center (DIC)
  • Navigation
  • Options

Navigation

Press SET/CLR to select the Navigation app. Use to highlight available options. If there is no active route, you can resume the last route and turn the voice prompts on/off. If there is an active route, press SET/CLR to cancel route guidance or turn the voice prompts on/off.

Options

Press SET/CLR to select the Options app. Use to scroll through the items in the Options menu.

Unit : Press SET/CLR while Unit is displayed to enter the Units menu.

Choose U.S. or metric units by pressing SET/CLR while the desired item is highlighted.

Info Pages : Press SET/CLR while Info Pages is displayed to enter the Info Pages menu. Press SET/CLR to edit the list of info apps displayed. See Driver Information Center (DIC)

Speedometer

The speedometer shows the vehicle speed in kilometers per hour (km/h) and miles per hour (mph).

Odometer

The odometer shows how far the vehicle has been driven, in either kilometers or miles.

Trip Odometer

The trip odometer shows how far the vehicle has been driven since the trip odometer was last reset.

The trip odometer is accessed and reset through the Driver Information Center (DIC). See Driver Information Center (DIC)
