SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

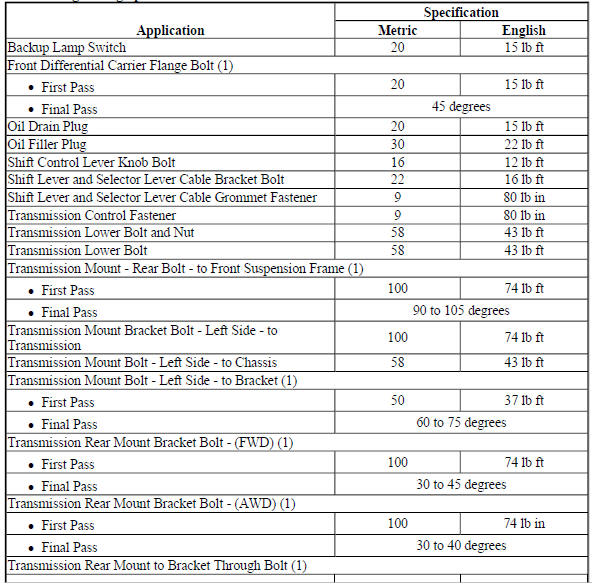

Fastener Tightening Specifications

FASTENER TIGHTENING SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

MANUAL TRANSMISSION SPECIFICATIONS

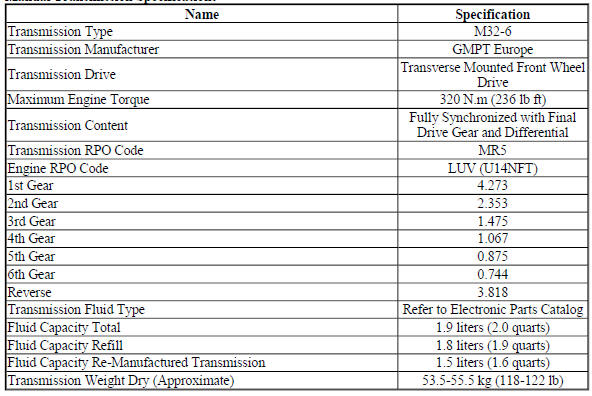

Manual Transmission Specifications

MANUAL TRANSMISSION SPECIFICATIONS

Schematic wiring diagrams

MANUAL TRANSMISSION WIRING SCHEMATICS (ENCORE, MR5)

MR5

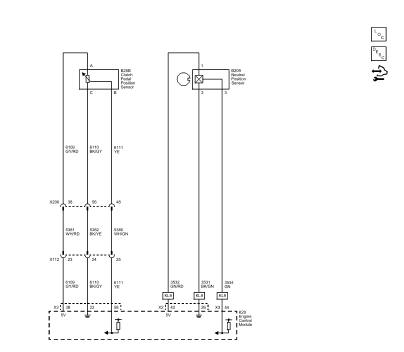

Fig. 1: MR5 (Encore, MR5)
Fig. 1: MR5 (Encore, MR5)

MANUAL TRANSMISSION WIRING SCHEMATICS (Encore, MR5)

MR5

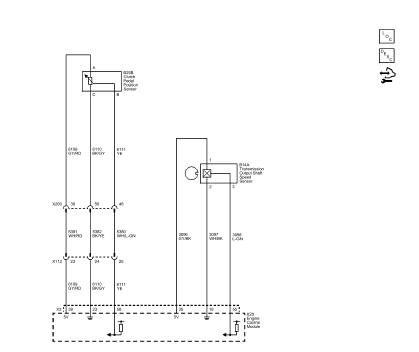

Fig. 2: MR5 (Encore, MR5)
Fig. 2: MR5 (Encore, MR5)

READ NEXT:

 Component locator

MANUAL TRANSMISSION COMPONENT VIEWS Shift Control and Shift Lever/Selector Lever Cable Components Fig. 3: Shift Control and Shift Lever/Selector Lever Cable Components Shift Shaft Components Fig

 Diagnostic information and procedures

DTC P0502 OR P0503: Vehicle speed sensor (VSS) DIAGNOSTIC CODE INDEX DTC P0502 OR P0503: VEHICLE SPEED SENSOR (VSS) Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to u

 Repair instructions - on vehicle

Transmission fluid drain and fill Draining Procedure NOTE: The fluid check bolt at the front of the transmission may not be opened. The transmission fluid drained out during the pre-delivery ins

SEE MORE:

 Engine front cover with oil pump replacement

Removal Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Set the engine to TDC. Refer to Camshaft Timing Chain Inspection. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheelhouse li

 Description and operation

WHEEL DRIVE SHAFTS DESCRIPTION AND OPERATION Front wheel drive axles are flexible assemblies. Front wheel drive axles consist of the following components: A front wheel drive shaft tripot joint (inner joint) A front wheel drive shaft constant velocity joint (outer joint) A front wheel drive sha
