Rear Compartment Fuse Block

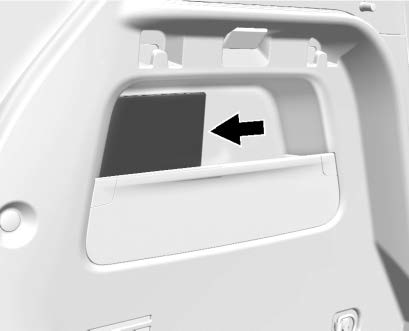

The rear compartment fuse block is behind a cover on the driver side of the rear compartment. To access the fuses, remove the cover.

The vehicle may not be equipped with all of the fuses, relays, and features shown.

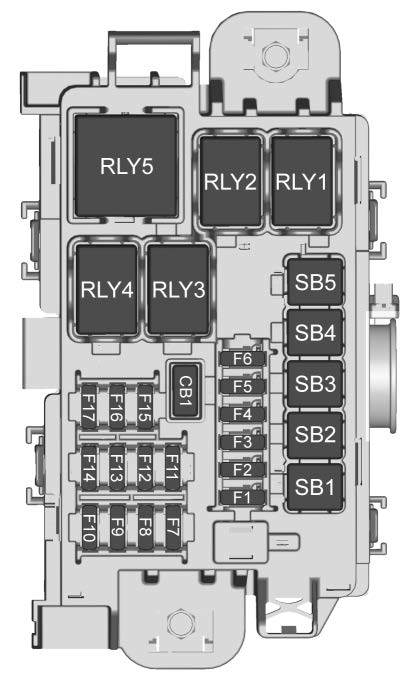

Rear Compartment Fuse Block

Fuses / Usage

F1 Amplifier audio

F2 Rear drive control module

F3 -

F4 -

F5 -

F6 -

F7 -

F8 -

F9 -

F10 -

F11 -

F12 -

F13 -

F14 -

F15 -

F16 -

F17 -

S/B Fuses/ Usage

S/B1 DC-DC transformer 400W

S/B2 DC-DC transformer 400W

S/B3 DC/AC inverter module

S/B4 -

S/B5 -

Relays /Usage

RLY01 -

RLY02 -

RLY03 -

RLY04 -

RLY05 -

Circuit Breakers/ Usage

CB1 -
