Buick Encore Owners & Service Manuals

Buick Encore: Repair instructions

Heater and air conditioning control replacement

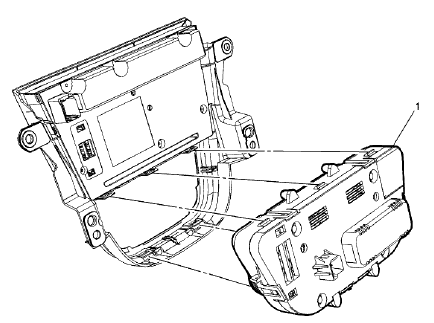

Fig. 6: Heater And Air Conditioning Control
Fig. 6: Heater And Air Conditioning Control

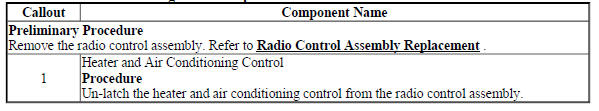

Heater and Air Conditioning Control Replacement

Heater and Air Conditioning Control Replacement

HEATER AND AIR CONDITIONING REMOTE CONTROL REPLACEMENT

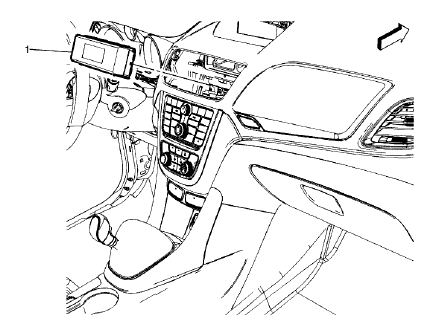

Fig. 7: Heater And Air Conditioning Remote Control
Fig. 7: Heater And Air Conditioning Remote Control

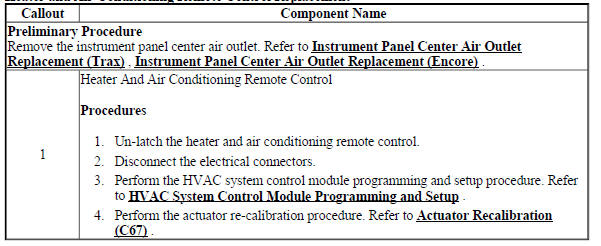

Heater and Air Conditioning Remote Control Replacement

Heater and Air Conditioning Remote Control Replacement

AIR INLET VALVE ACTUATOR REPLACEMENT - LEFT SIDE (WITH CJ2)

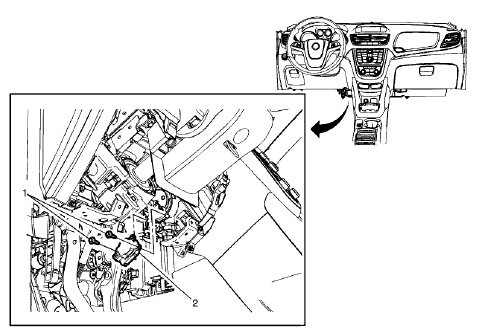

Fig. 8: Air Inlet Valve Actuator - Left Side (With CJ2)
Fig. 8: Air Inlet Valve Actuator - Left Side (With CJ2)

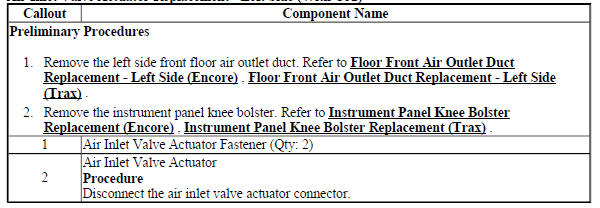

Air Inlet Valve Actuator Replacement - Left Side (With CJ2)

Air Inlet Valve Actuator Replacement - Left Side (With CJ2)

AIR INLET VALVE ACTUATOR REPLACEMENT - RIGHT SIDE (WITH CJ2)

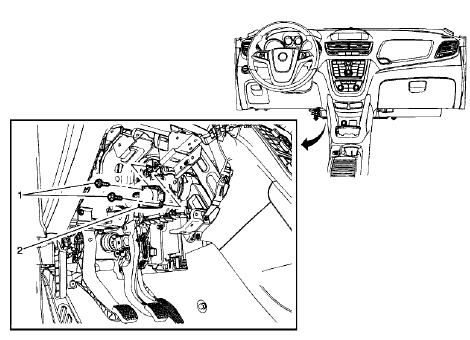

Fig. 9: Air Inlet Valve Actuator - Right Side (With CJ2)
Fig. 9: Air Inlet Valve Actuator - Right Side (With CJ2)

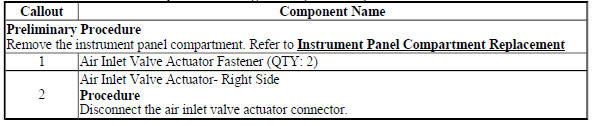

Air Inlet Valve Actuator Replacement - Right Side (With CJ2)

Air Inlet Valve Actuator Replacement - Right Side (With CJ2)

MODE CONTROL CAM ACTUATOR REPLACEMENT

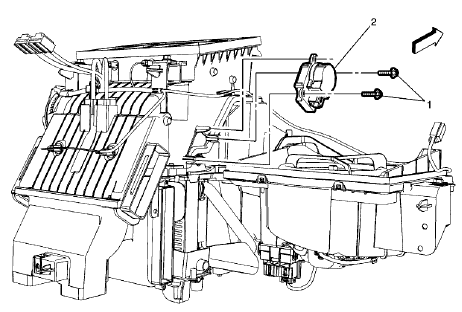

Fig. 10: Mode Control Cam Actuator
Fig. 10: Mode Control Cam Actuator

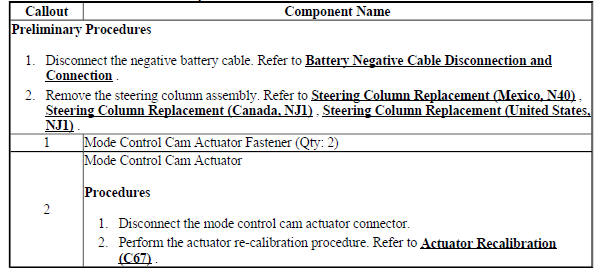

Mode Control Cam Actuator Replacement

Mode Control Cam Actuator Replacement

MODE CONTROL CAM REPLACEMENT

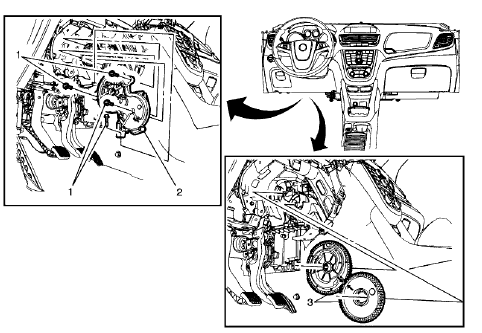

Fig. 11: Mode Control Cam
Fig. 11: Mode Control Cam

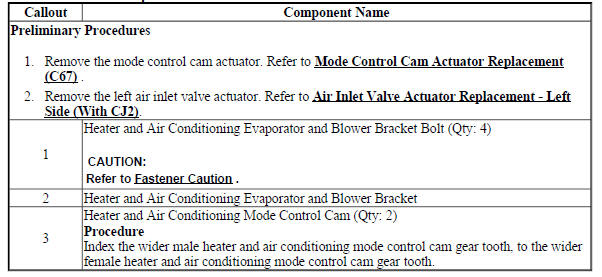

Mode Control Cam Replacement

Mode Control Cam Replacement

MODE CONTROL CAM ALIGNMENT

Alignment Procedure

NOTE: The HVAC module must be removed to accurately set the mode cam gear timing. Failure to do so may result in poor HVAC performance, and damage to the HVAC module.

  1. Remove the heater and air conditioning evaporator and blower module assembly (HVAC). Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation .
  2. Remove the mode control cam. Refer to Mode Control Cam Replacement (C67) , Mode Control Cam Replacement (C60) .
  3. Inspect the mode valve levers and internal vent valve operation prior to installing the new mode control cam assembly.
  4. Replace the components affecting the proper operation of the vent valves.

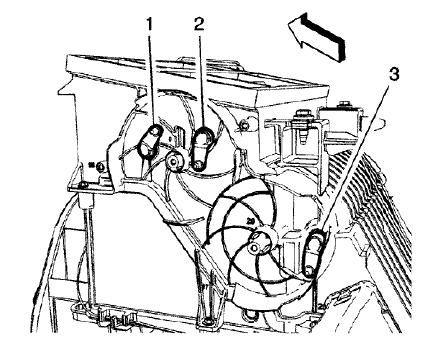

Fig. 12: Defrost Valve Lever, Vent Valve Lever And Heater Valve Lever
Fig. 12: Defrost Valve Lever, Vent Valve Lever And Heater Valve Lever

  1. Rotate the defrost valve lever (1), vent valve lever (2), and heater valve lever (3) to the position as shown.
  2. Using a small brush, apply a lithium based lubricant to the channels of the heater cam, and the mode cam where the levers travel.

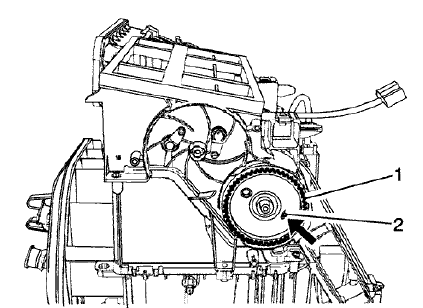

Fig. 13: Heater Cam And Heater Valve Lever Pin
Fig. 13: Heater Cam And Heater Valve Lever Pin

  1. Install the heater cam (1) aligning the channel on the back side of the heater cam with the heater valve lever pin (2).
  2. Inspect the heater valve lever pin (2) is visible in the heater cam (1) inspection window indicated by the arrow.

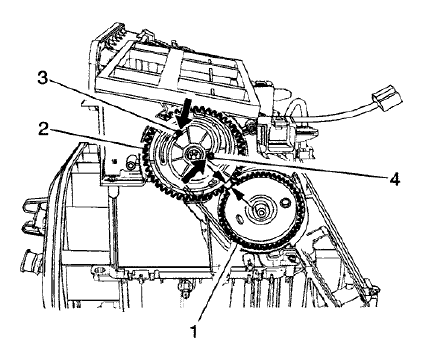

Fig. 14: Heater Cam, Mode Cam, Defroster Valve Lever Pin And Vent Valve Lever Pin
Fig. 14: Heater Cam, Mode Cam, Defroster Valve Lever Pin And Vent Valve Lever Pin

NOTE: If the heater cam and mode cam are not aligned correctly, the mode operation will not function properly.

  1. Rotate the heater cam (1) counter clockwise, position the larger heater cam female tooth gear as indicated by the arrow.
  2. Install the mode cam (2) aligning the larger male tooth with the heater cam (1) larger female tooth indicated by the arrows, while aligning the channels on the back side of the mode cam (2) with the defroster valve lever pin (3), and the vent valve lever pin (4). The pins should be visible through the inspection windows.
  3. Verify that the large male tooth on the mode control cam (2) is aligned with the large female tooth on the heater cam (1).
  4. Re-install the heater and air conditioning evaporator and blower module assembly (HVAC). Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation .
  5. Verify for proper operation of the HVAC system.

Inside air moisture and windshield temperature sensor replacement (with CJ2)

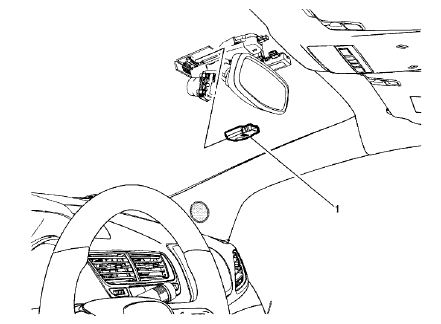

Fig. 15: Inside Air Moisture And Windshield Temperature Sensor (With CJ2)
Fig. 15: Inside Air Moisture And Windshield Temperature Sensor (With CJ2)

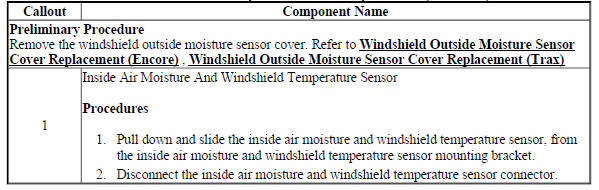

Inside Air Moisture and Windshield Temperature Sensor Replacement (With CJ2)

Inside Air Moisture and Windshield Temperature Sensor Replacement (With CJ2)

SUN LOAD TEMPERATURE SENSOR REPLACEMENT

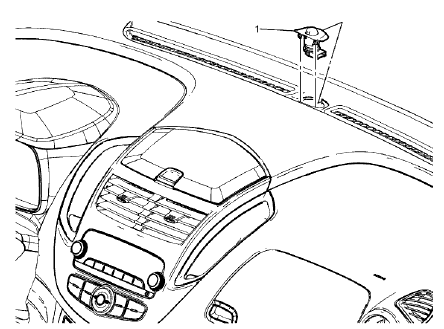

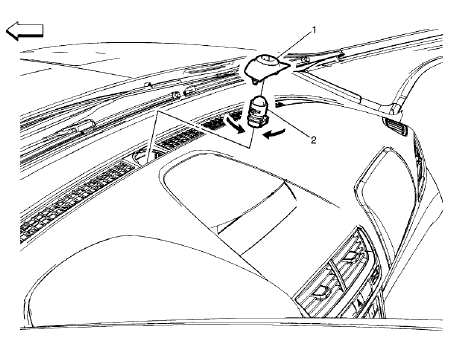

Fig. 16: Sun Load Temperature Sensor
Fig. 16: Sun Load Temperature Sensor

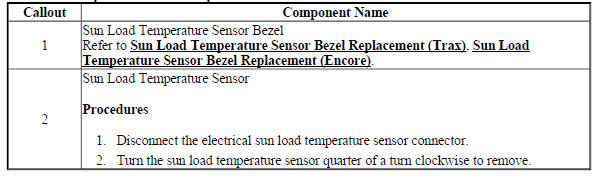

Sun Load Temperature Sensor Replacement

Sun Load Temperature Sensor Replacement

SUN LOAD TEMPERATURE SENSOR BEZEL REPLACEMENT (Encore)

Fig. 17: Sun Load Temperature Sensor Bezel
Fig. 17: Sun Load Temperature Sensor Bezel

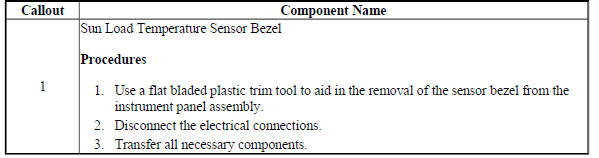

Sun Load Temperature Sensor Bezel Replacement (Encore)

Sun Load Temperature Sensor Bezel Replacement (Encore)

SUN LOAD TEMPERATURE SENSOR BEZEL REPLACEMENT (ENCORE)

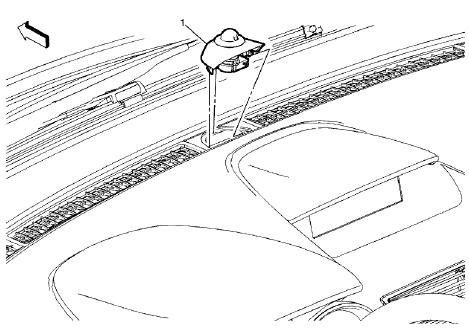

Fig. 18: Sun Load Temperature Sensor Bezel (Encore)
Fig. 18: Sun Load Temperature Sensor Bezel (Encore)

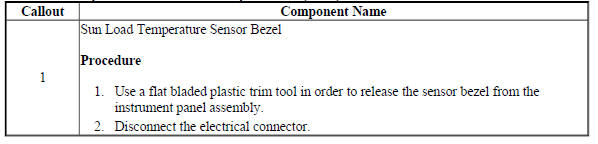

Sun Load Temperature Sensor Bezel Replacement (Encore)

Sun Load Temperature Sensor Bezel Replacement (Encore)
