Buick Encore: Vehicle Data
Buick Encore 2020-2026 Owners Manual / Technical Data / Vehicle Data

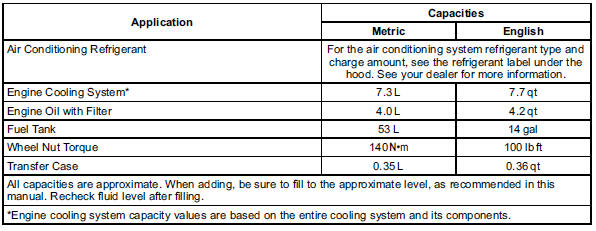

Capacities and Specifications
The following approximate capacities are given in metric and English conversions. See Recommended Fluids and Lubricants for more information.
Engine Specifications
Engine Drive Belt Routing
.gif)
1.4L L4 Engine (LUV)
