Buick Encore: Air conditioning & heat

AIR CONDITIONING TROUBLE SHOOTING

WARNING: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

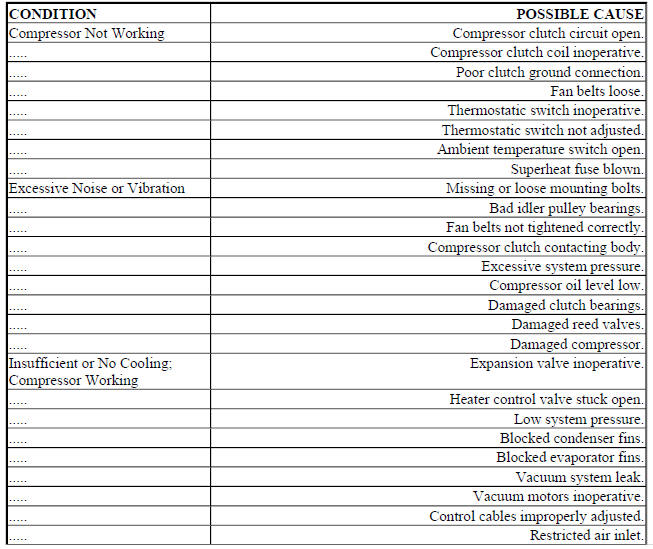

BASIC AIR CONDITIONING TROUBLE SHOOTING CHART

BASIC AIR CONDITIONING TROUBLE SHOOTING CHART

BASIC AIR CONDITIONING TROUBLE SHOOTING CHART

HEATER SYSTEM TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

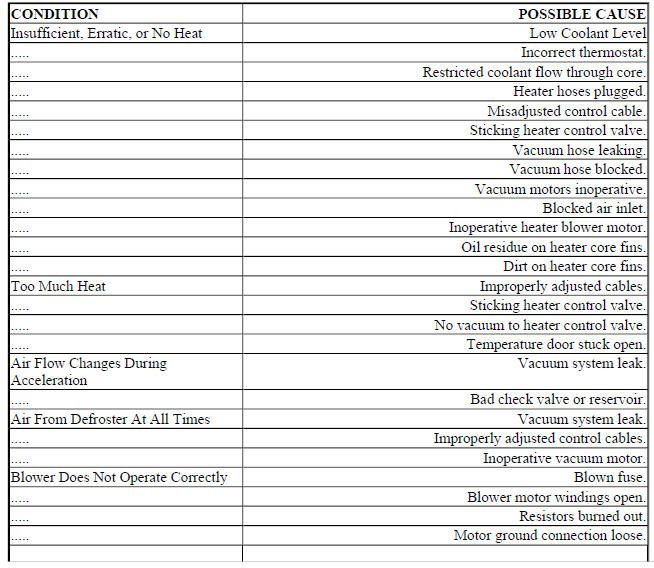

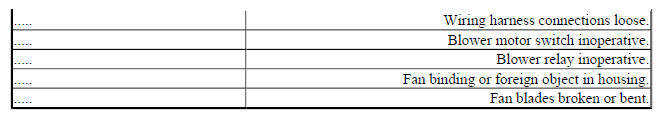

BASIC HEATER SYSTEM TROUBLE SHOOTING CHART

BASIC HEATER SYSTEM TROUBLE SHOOTING CHART

BASIC HEATER SYSTEM TROUBLE SHOOTING CHART

BRAKES

BRAKE SYSTEM TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

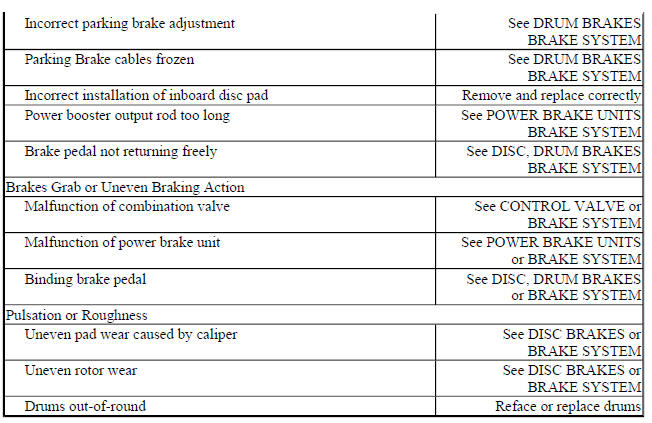

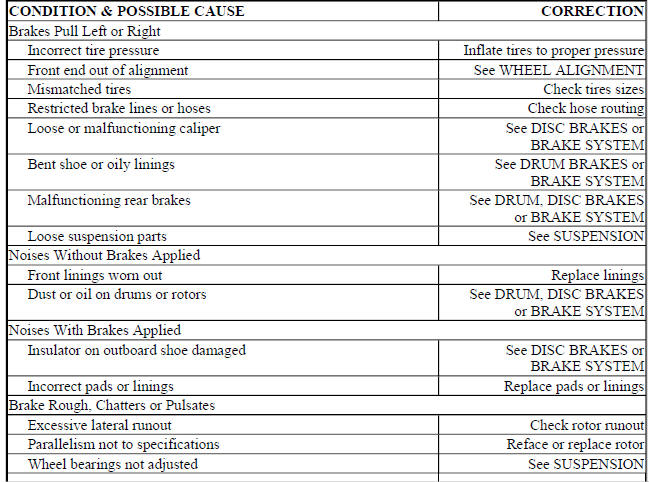

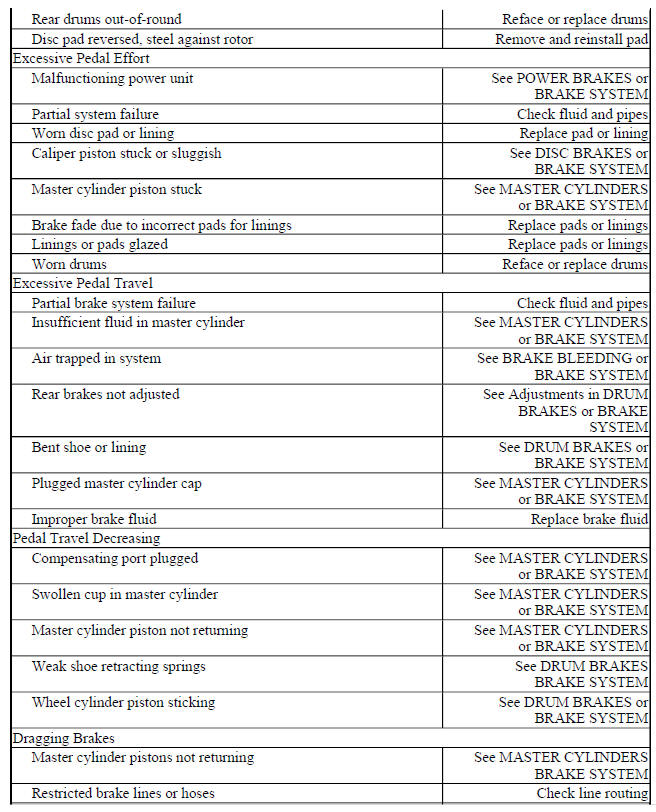

BRAKE SYSTEM TROUBLE SHOOTING CHART

BRAKE SYSTEM TROUBLE SHOOTING CHART

BRAKE SYSTEM TROUBLE SHOOTING CHART

BRAKE SYSTEM TROUBLE SHOOTING CHART

ENGINE MECHANICAL

COOLING SYSTEM TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing

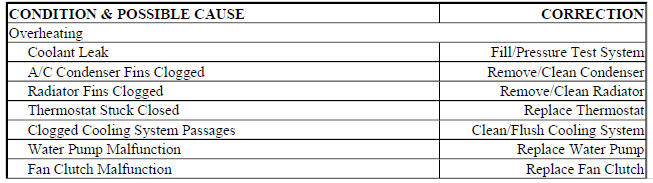

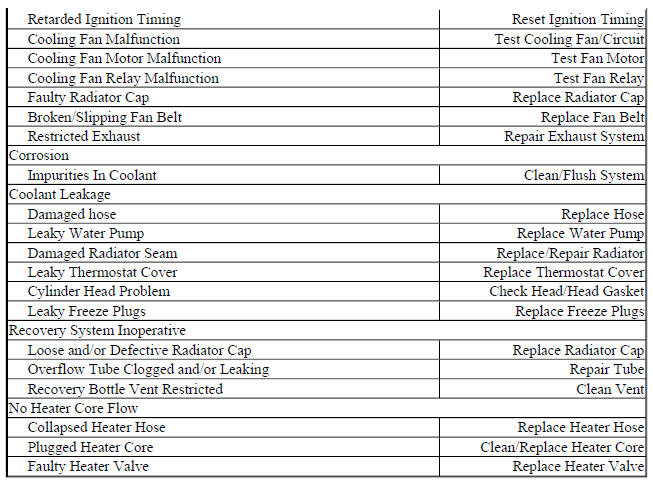

COOLING SYSTEM TROUBLE SHOOTING

COOLING SYSTEM TROUBLE SHOOTING

COOLING SYSTEM TROUBLE SHOOTING

GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

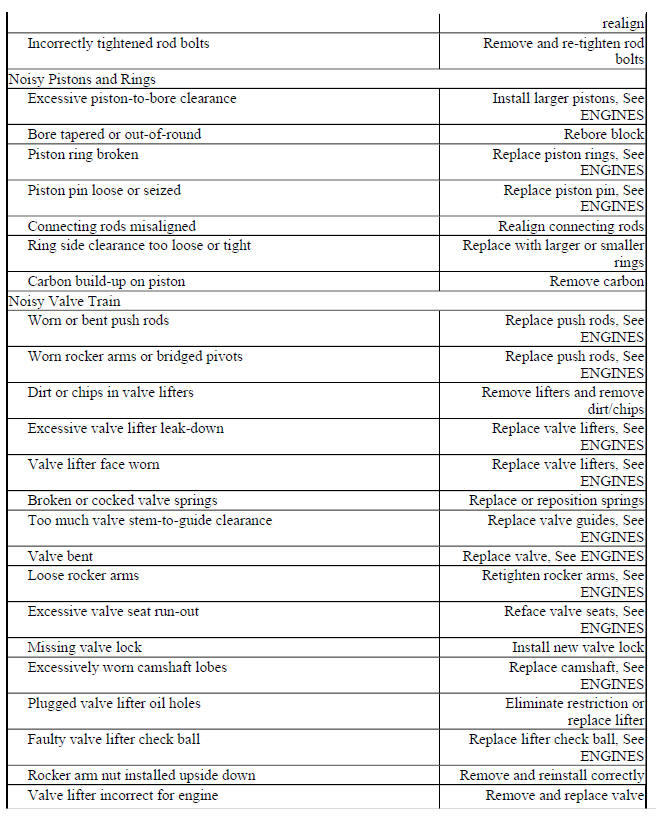

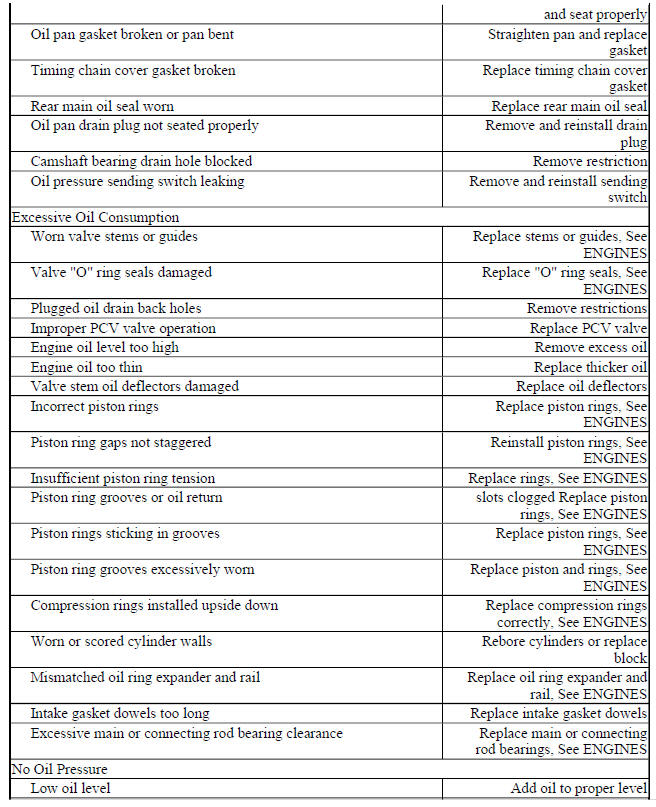

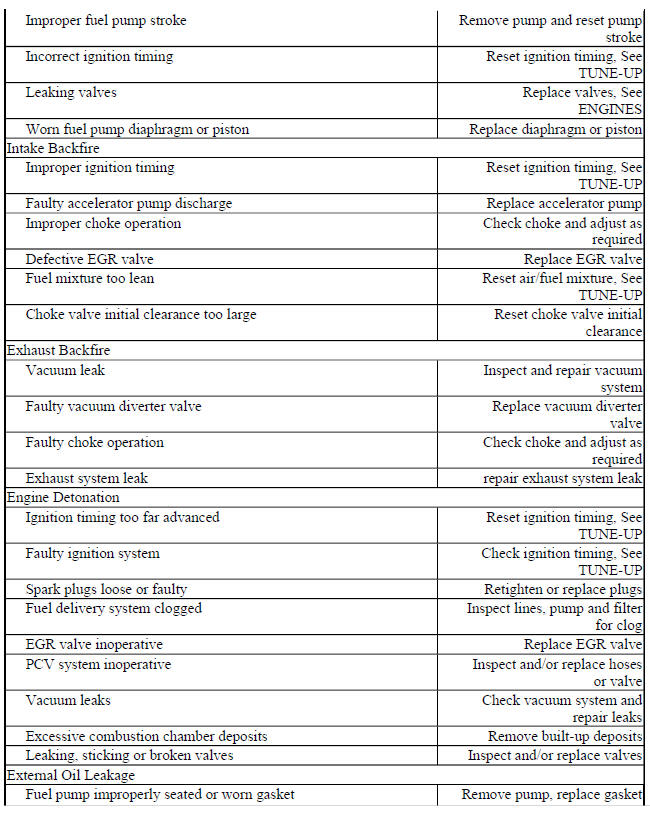

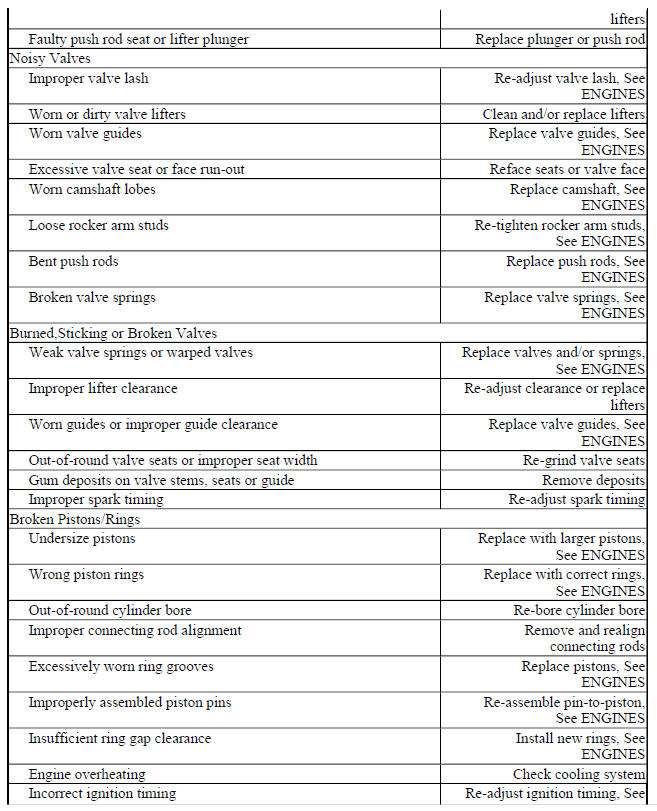

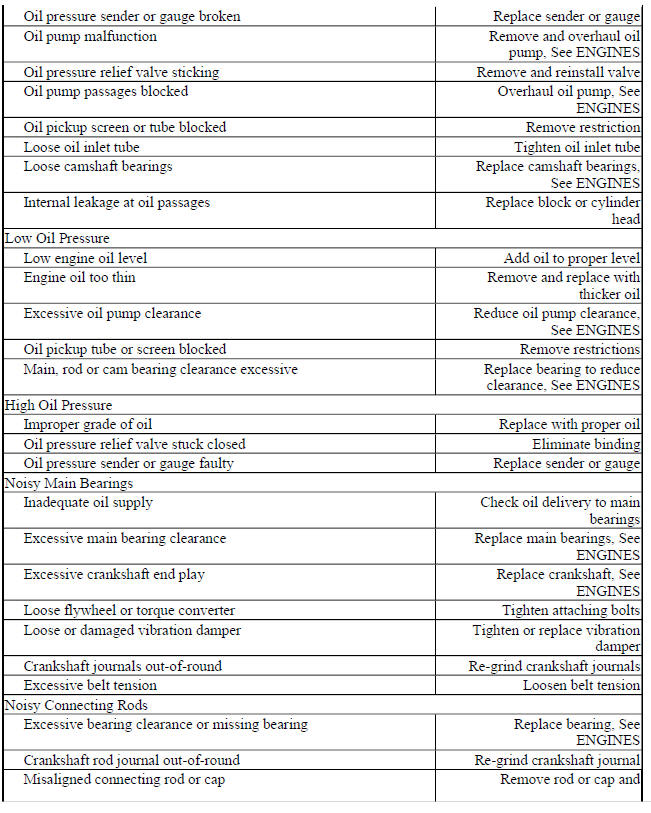

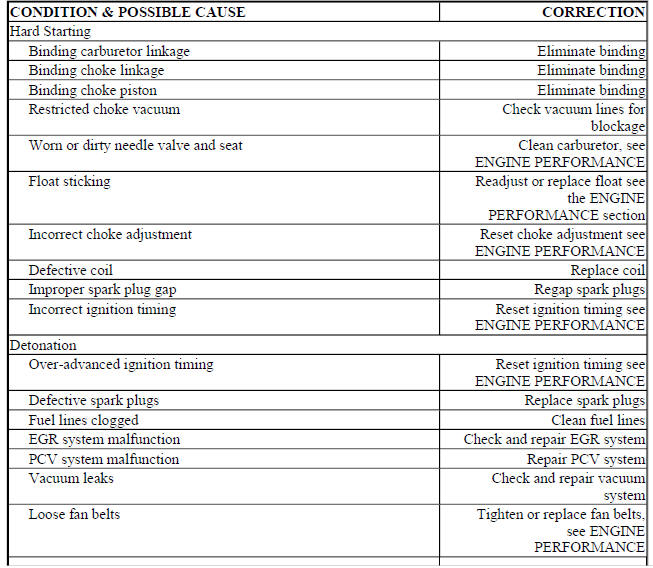

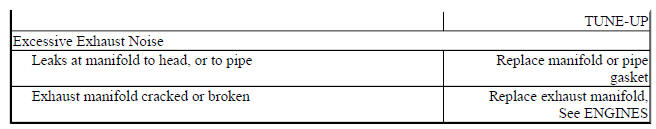

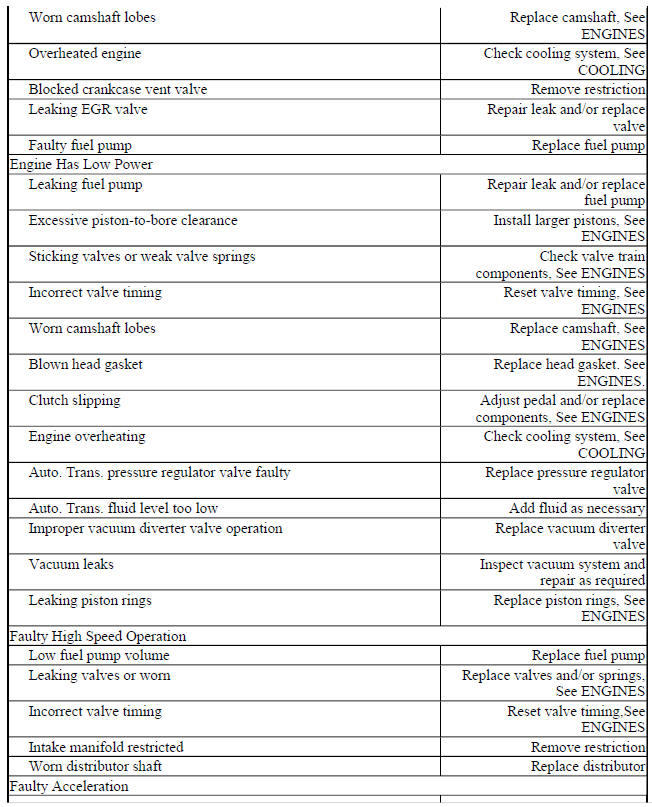

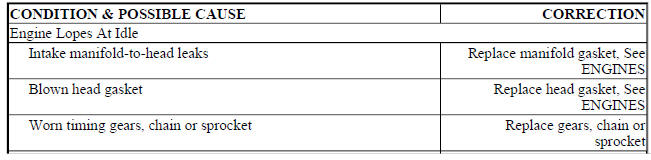

BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART

BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART

BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART

BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART

BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART

BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART

BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART

BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART

BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART

ENGINE PERFORMANCE

CARBURETOR TROUBLE SHOOTING:

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing

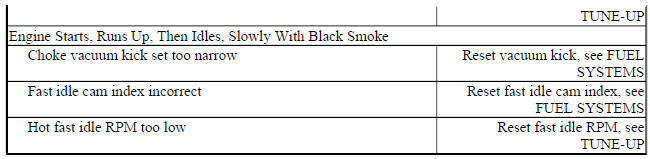

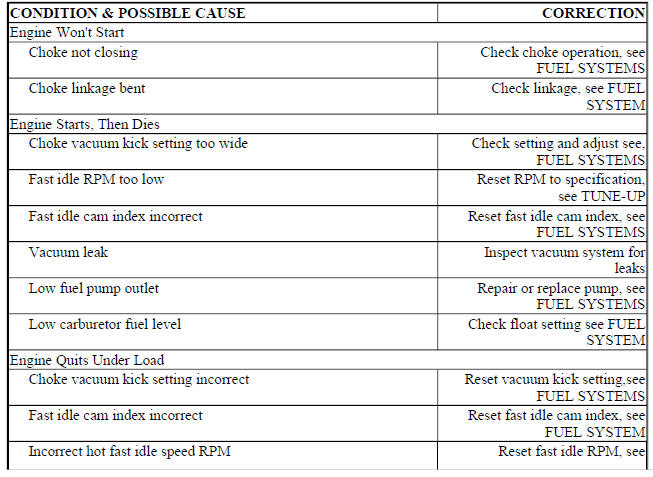

BASIC COLD START SYMPTOMS TROUBLE SHOOTING CHART

BASIC COLD START SYMPTOMS TROUBLE SHOOTING CHART

BASIC COLD START SYMPTOMS TROUBLE SHOOTING CHART

BASIC HOT START SYMPTOMS TROUBLE SHOOTING CHART

BASIC HOT START SYMPTOMS TROUBLE SHOOTING CHART

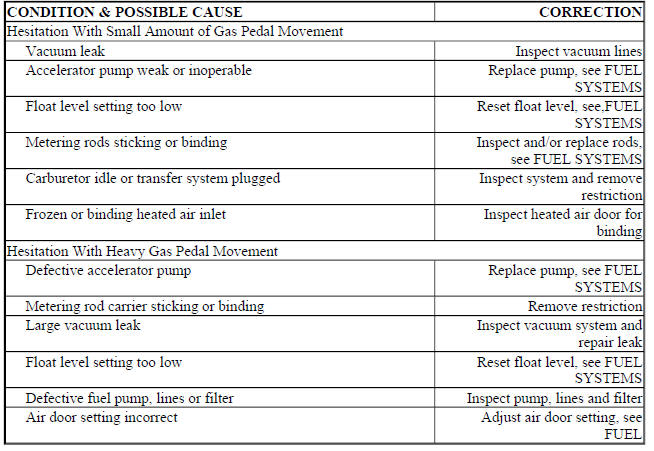

BASIC COLD ENGINE DRIVEABILITY SYMPTOMS TROUBLE SHOOTING CHART

BASIC COLD ENGINE DRIVEABILITY SYMPTOMS TROUBLE SHOOTING CHART

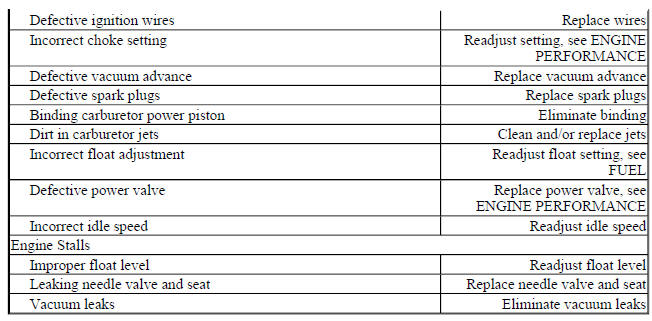

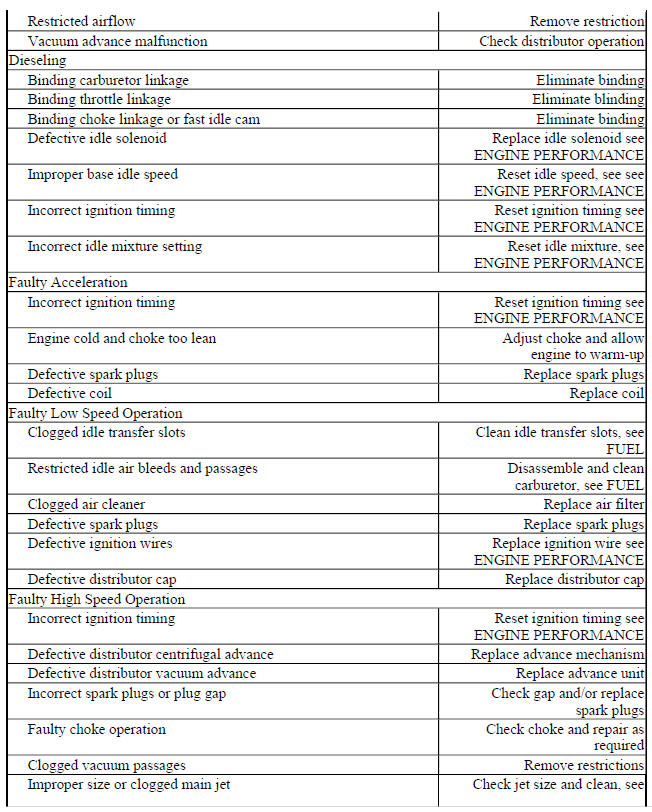

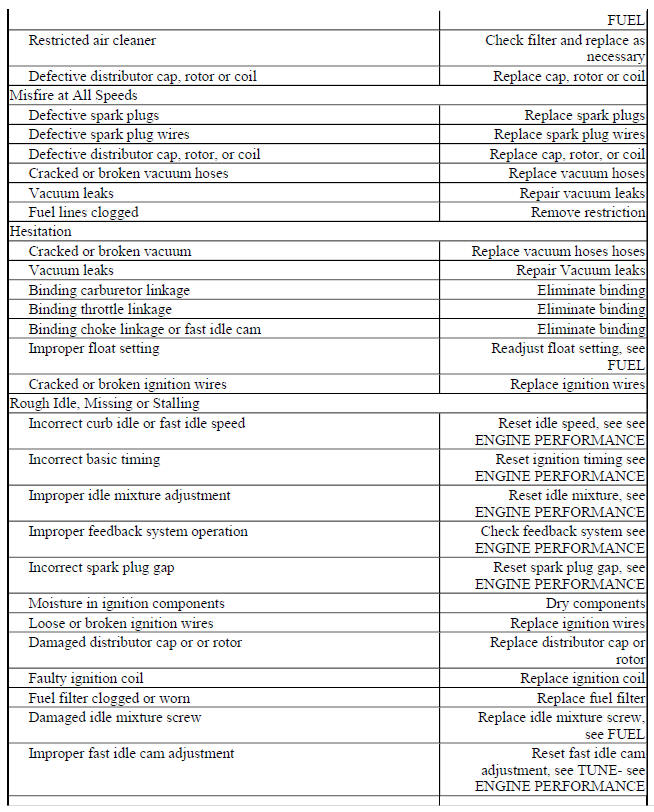

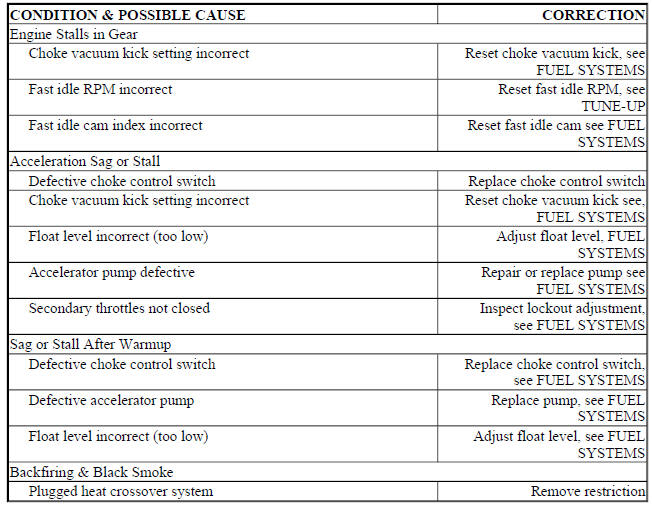

BASIC WARM ENGINE DRIVEABILITY SYMPTOMS TROUBLE SHOOTING CHART

BASIC WARM ENGINE DRIVEABILITY SYMPTOMS TROUBLE SHOOTING CHART

DIESEL ENGINE TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing. NOTE: Diesel engines mechanical diagnosis is the same as gasoline engines for items such as noisy valves, bearings, pistons, etc. The following trouble shooting covers only items pertaining to diesel engines.

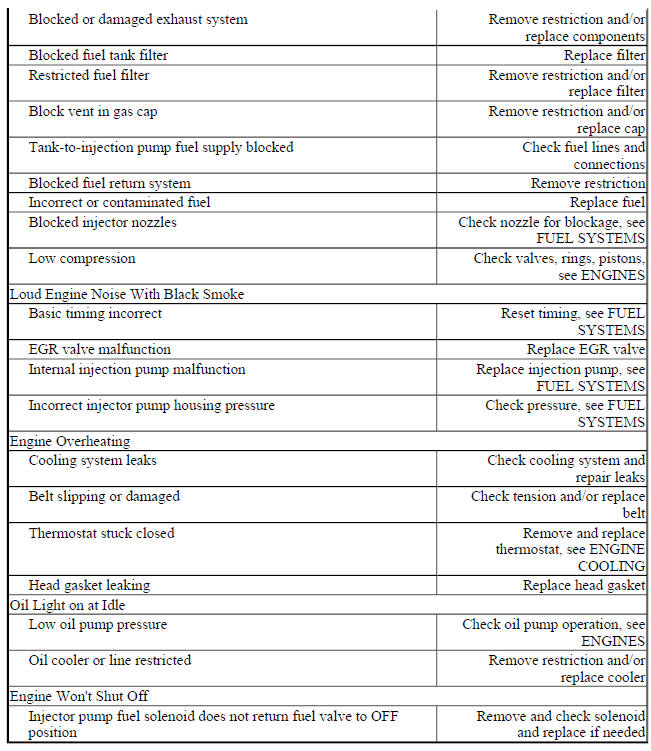

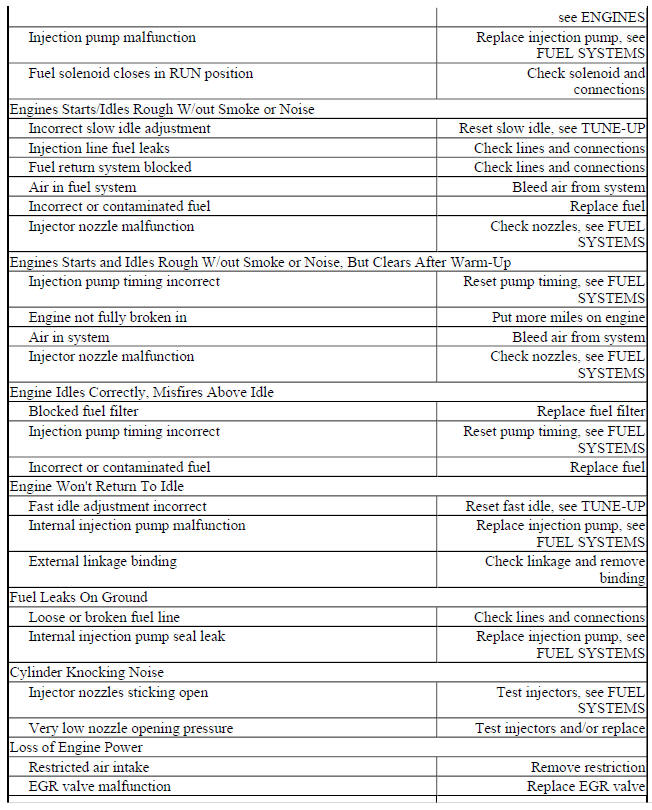

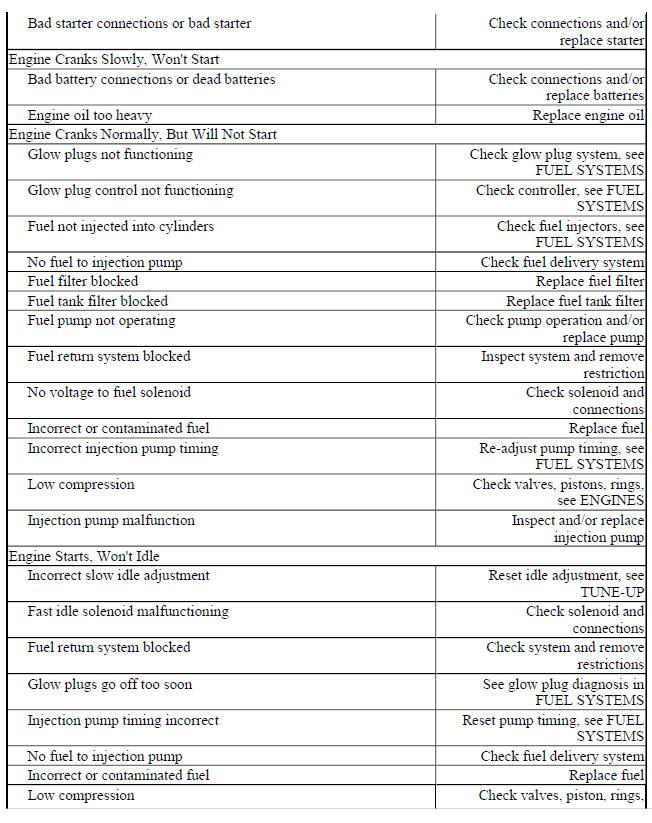

BASIC DIESEL ENGINE TROUBLE SHOOTING CHART

BASIC DIESEL ENGINE TROUBLE SHOOTING CHART

BASIC DIESEL ENGINE TROUBLE SHOOTING CHART

BASIC DIESEL ENGINE TROUBLE SHOOTING CHART

BASIC DIESEL ENGINE TROUBLE SHOOTING CHART

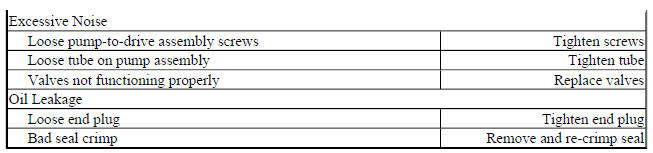

VACUUM PUMP DIAGNOSIS

VACUUM PUMP DIAGNOSIS

VACUUM PUMP DIAGNOSIS

FUEL INJECTION TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

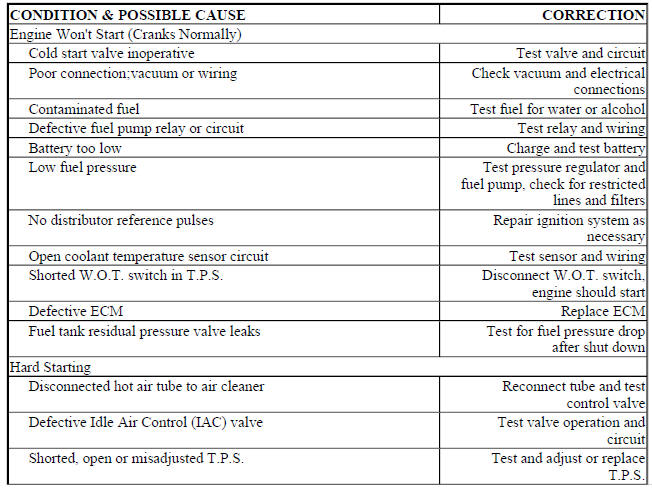

BASIC FUEL INJECTION TROUBLE SHOOTING CHART

BASIC FUEL INJECTION TROUBLE SHOOTING CHART

BASIC FUEL INJECTION TROUBLE SHOOTING CHART

NOTE: For additional electronic fuel injection trouble shooting information, see the appropriate article in the ENGINE PERFORMANCE section (not all vehicles have Computer Engine Control articles). Information is provided there for diagnosing fuel system problems on vehicles with electronic fuel injection.

IGNITION SYSTEM TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

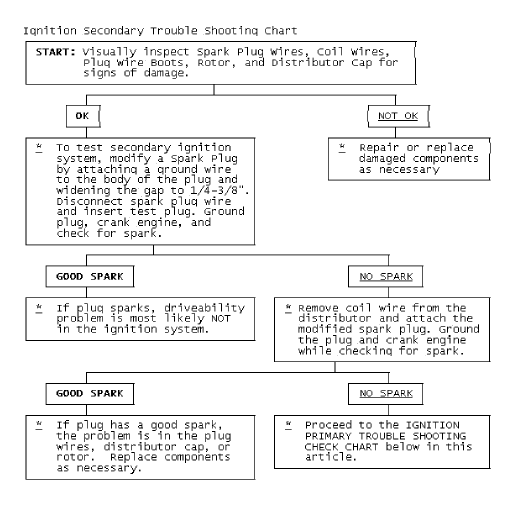

Fig. 3: Ignition Secondary Trouble Shooting Chart
Fig. 3: Ignition Secondary Trouble Shooting Chart

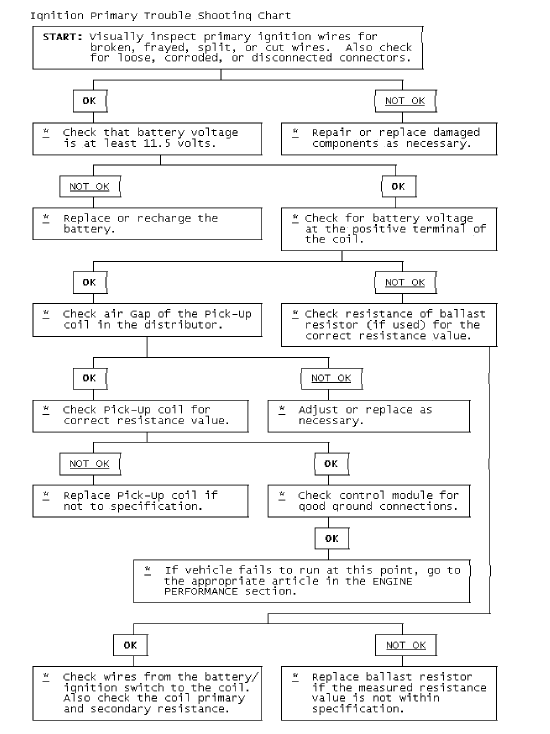

Fig. 4: Ignition Primary Trouble Shooting Chart
Fig. 4: Ignition Primary Trouble Shooting Chart

STARTER TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

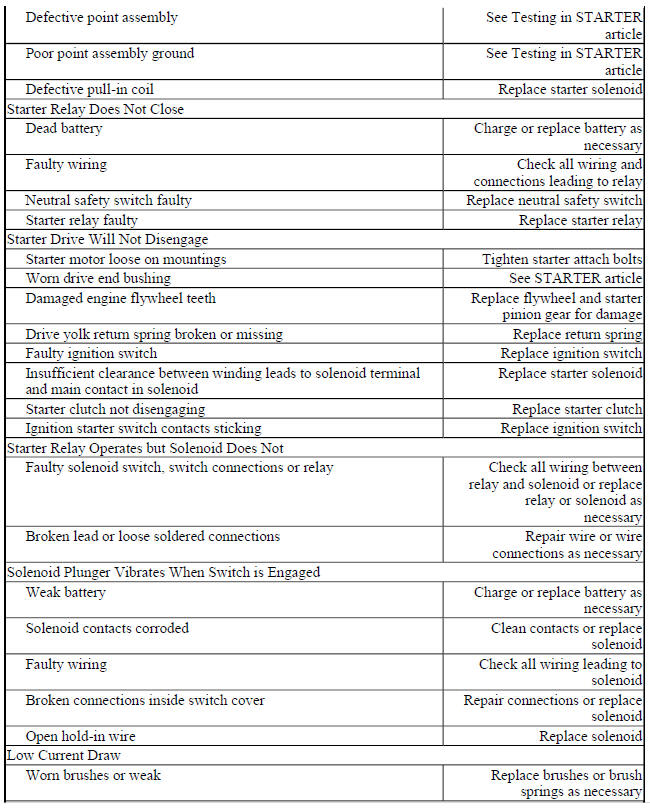

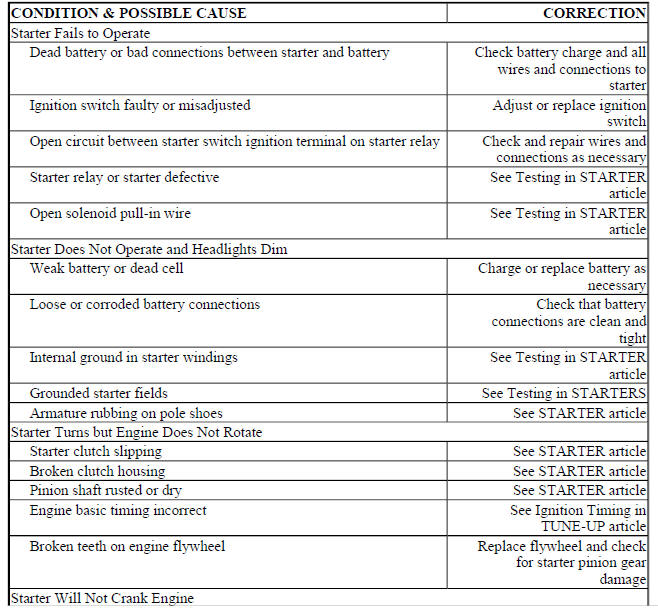

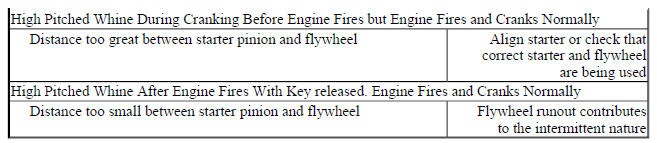

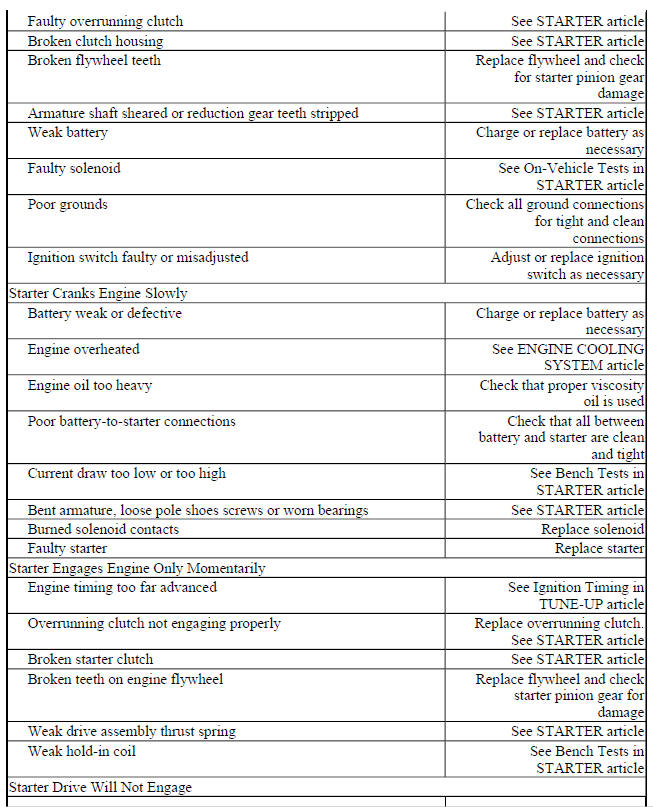

BASIC STARTER TROUBLE SHOOTING CHART

BASIC STARTER TROUBLE SHOOTING CHART

BASIC STARTER TROUBLE SHOOTING CHART

BASIC STARTER TROUBLE SHOOTING CHART

BASIC STARTER TROUBLE SHOOTING CHART

TUNE-UP TROUBLE SHOOTING - GAS ENGINE VEHICLES

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

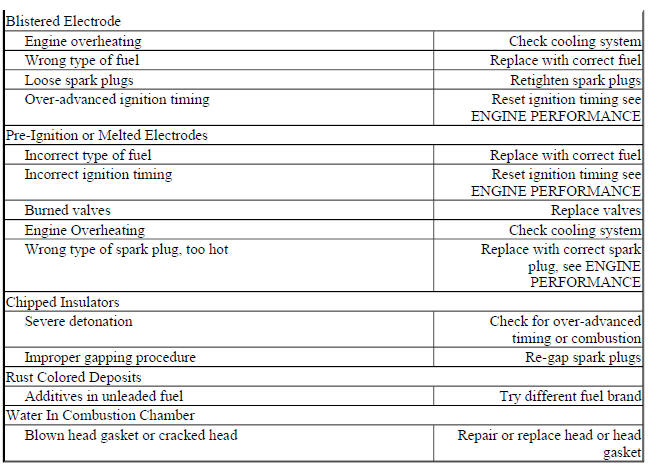

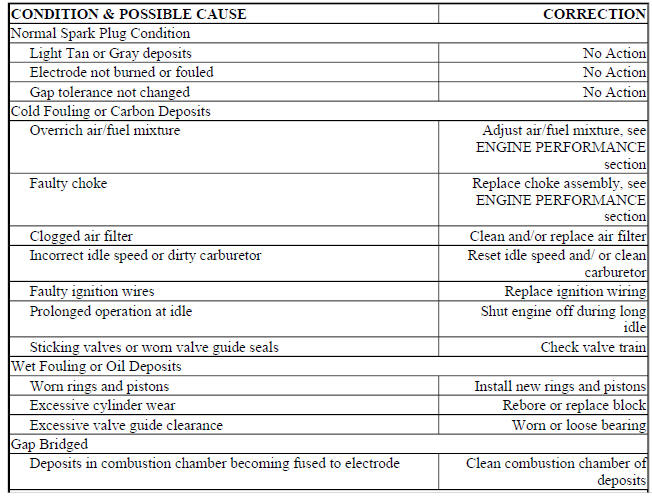

BASIC SPARK PLUG TROUBLE SHOOTING CHARTS

BASIC SPARK PLUG TROUBLE SHOOTING CHARTS

BASIC SPARK PLUG TROUBLE SHOOTING CHARTS

NOTE: Before diagnosing an electronic ignition system, ensure that all wiring is connected properly between distributor, wiring connector and spark plugs.

Ignition problem will show up either as: Engine Will Not Start or Engine Runs Rough.

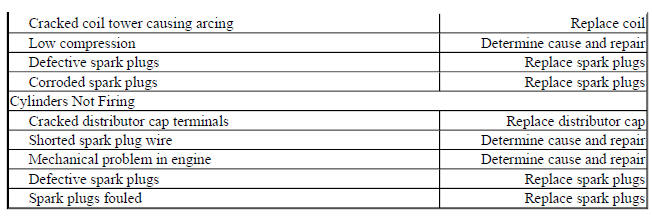

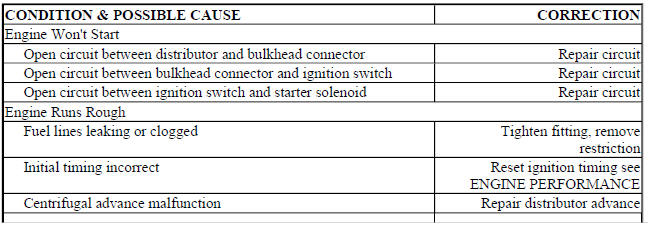

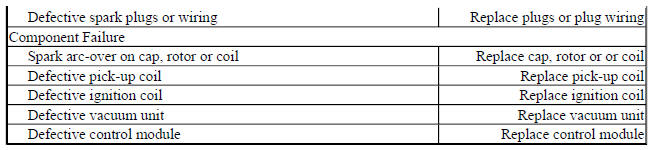

BASIC ELECTRONIC IGNITION TROUBLE SHOOTING CHARTS

BASIC ELECTRONIC IGNITION TROUBLE SHOOTING CHARTS

BASIC ELECTRONIC IGNITION TROUBLE SHOOTING CHARTS

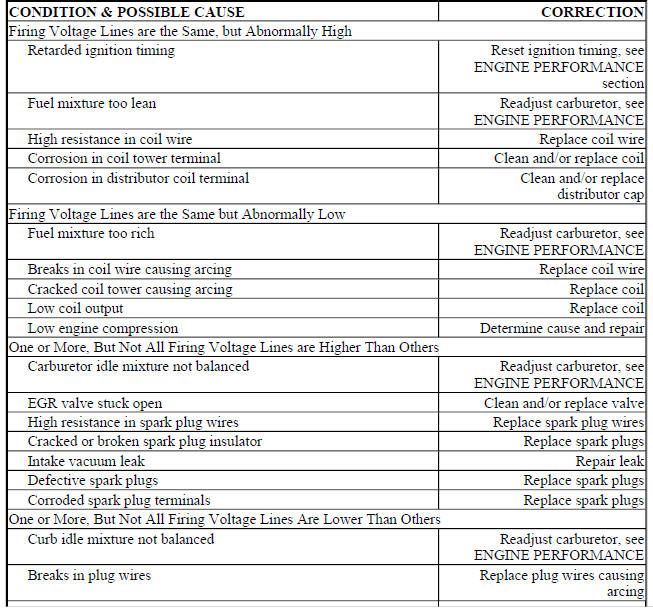

BASIC ELECTRONIC IGNITION TROUBLE SHOOTING CHARTS - USING OSCILLOSCOPE PATTERNS

BASIC ELECTRONIC IGNITION TROUBLE SHOOTING CHARTS - USING OSCILLOSCOPE

BASIC ELECTRONIC IGNITION TROUBLE SHOOTING CHARTS - USING OSCILLOSCOPE

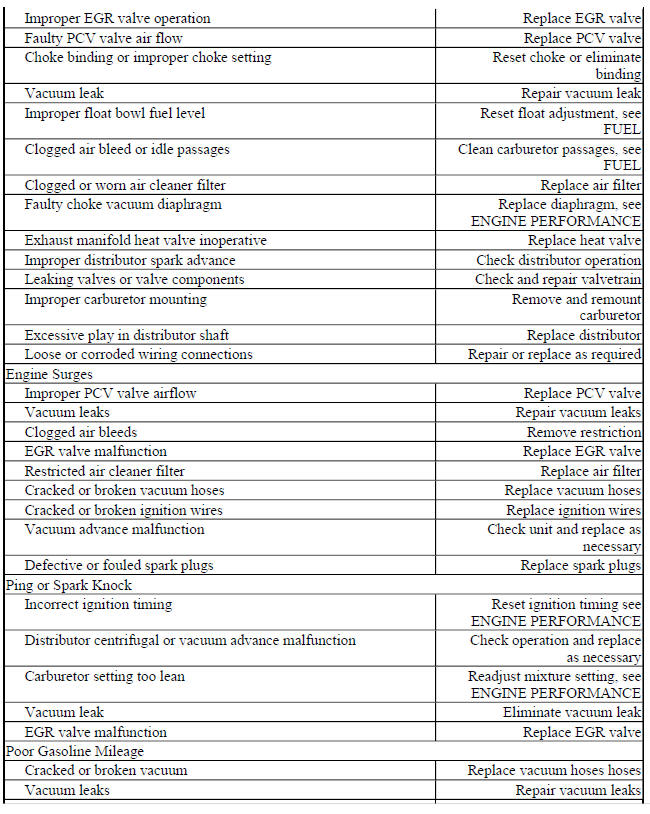

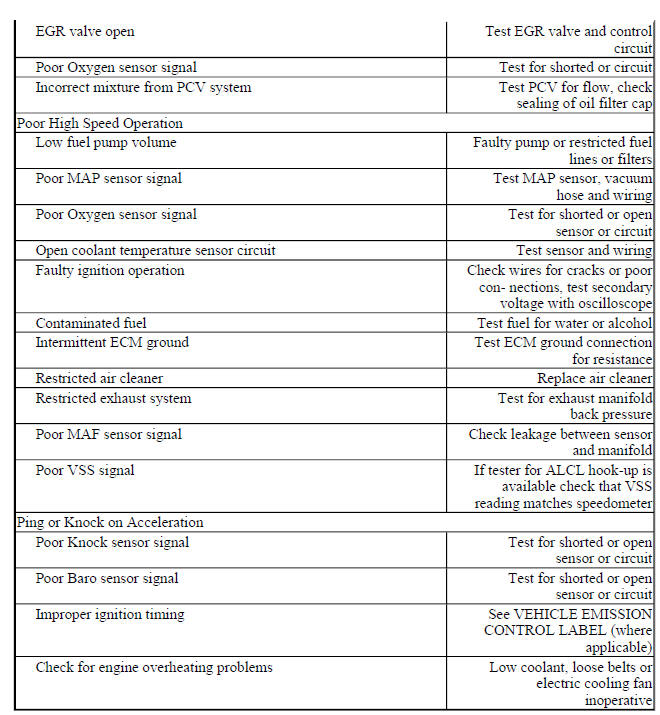

BASIC DRIVEABILITY PROBLEMS TROUBLE SHOOTING

BASIC DRIVEABILITY PROBLEMS TROUBLE SHOOTING

BASIC DRIVEABILITY PROBLEMS TROUBLE SHOOTING

BASIC DRIVEABILITY PROBLEMS TROUBLE SHOOTING

BASIC DRIVEABILITY PROBLEMS TROUBLE SHOOTING

BASIC DRIVEABILITY PROBLEMS TROUBLE SHOOTING

VACUUM PUMP - DIESEL TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing. NOTE: Diesel engines mechanical diagnosis is the same as gasoline engines for items such as noisy valves, bearings, pistons, etc. The following trouble shooting covers only items pertaining to diesel engines.

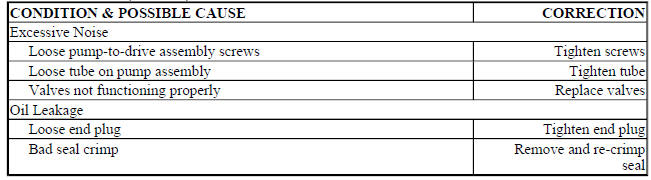

VACUUM PUMP (DIESEL) TROUBLE SHOOTING CHART

VACUUM PUMP (DIESEL) TROUBLE SHOOTING CHART

Manual transmission

MANUAL TRANSMISSION TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

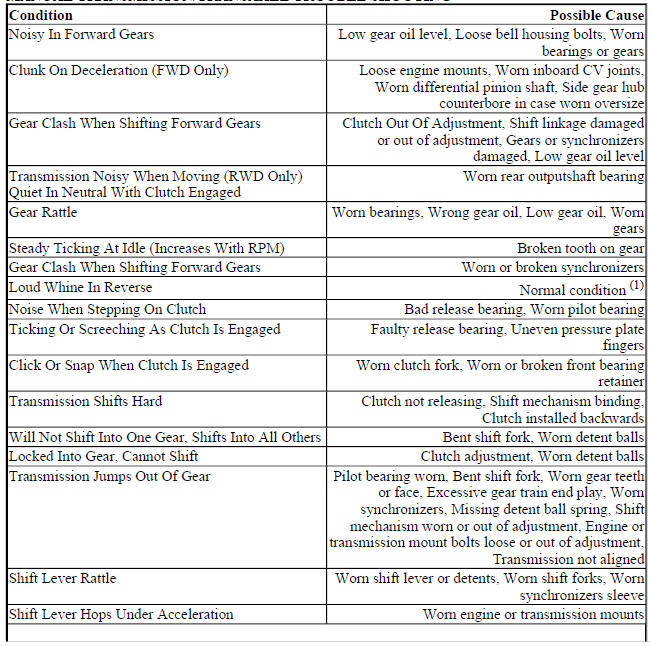

MANUAL TRANSMISSION/TRANSAXLE TROUBLE SHOOTING

MANUAL TRANSMISSION/TRANSAXLE TROUBLE SHOOTING

MANUAL TRANSMISSION/TRANSAXLE TROUBLE SHOOTING
