Buick Encore: Bumpers and Fascias

Repair instructions

SPECIFICATIONS

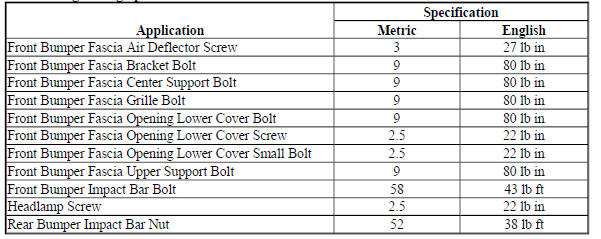

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

Fastener Tightening Specifications

REPAIR INSTRUCTIONS

FRONT BUMPER FASCIA ENERGY UPPER ABSORBER REPLACEMENT

Fig. 1: Front Bumper Fascia Energy Upper Absorber
Fig. 1: Front Bumper Fascia Energy Upper Absorber

Front Bumper Fascia Energy Upper Absorber Replacement

Front Bumper Fascia Energy Upper Absorber Replacement

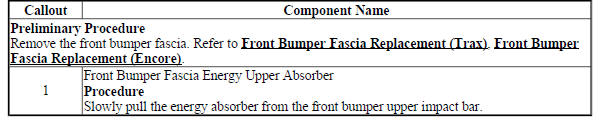

FRONT BUMPER FASCIA ENERGY LOWER ABSORBER REPLACEMENT

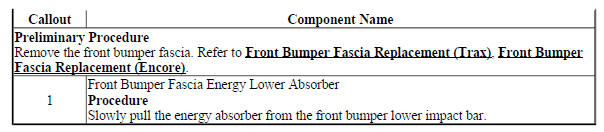

Fig. 2: Front Bumper Fascia Energy Lower Absorber
Fig. 2: Front Bumper Fascia Energy Lower Absorber

Front Bumper Fascia Energy Lower Absorber Replacement

Front Bumper Fascia Energy Lower Absorber Replacement

FRONT BUMPER ENERGY ABSORBER REPLACEMENT

Fig. 3: Front Bumper Energy Absorber
Fig. 3: Front Bumper Energy Absorber

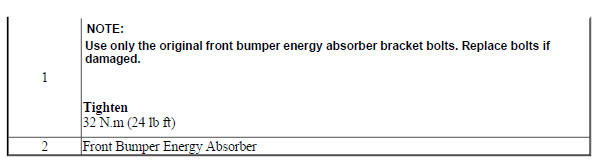

Front Bumper Energy Absorber Replacement

Front Bumper Energy Absorber Replacement

Front Bumper Energy Absorber Replacement

FRONT BUMPER UPPER IMPACT BAR REPLACEMENT

Fig. 4: Front Bumper Upper Impact Bar
Fig. 4: Front Bumper Upper Impact Bar

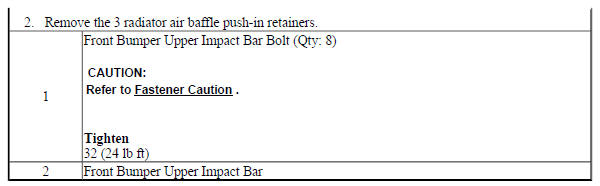

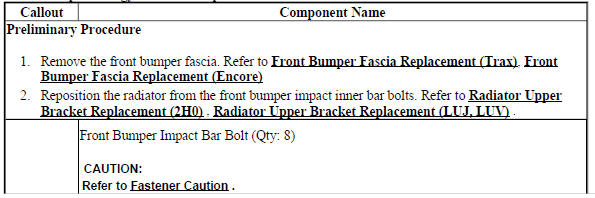

Front Bumper Upper Impact Bar Replacement

Front Bumper Upper Impact Bar Replacement

Front Bumper Upper Impact Bar Replacement

FRONT BUMPER LOWER IMPACT BAR REPLACEMENT (Encore)

Fig. 5: Front Bumper Lower Impact Bar
Fig. 5: Front Bumper Lower Impact Bar

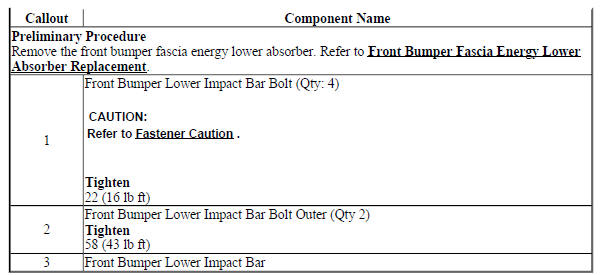

Front Bumper Lower Impact Bar Replacement (Encore)

Front Bumper Lower Impact Bar Replacement (Encore)

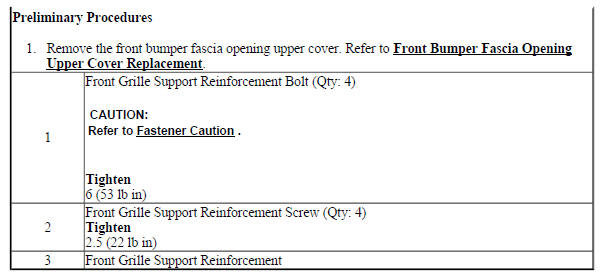

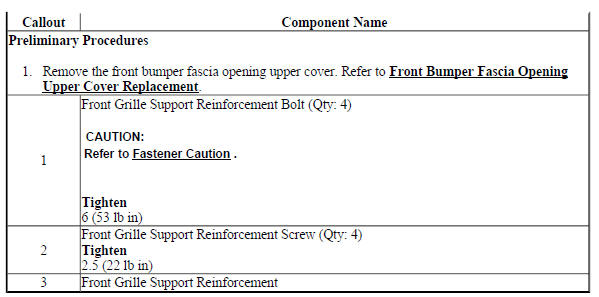

FRONT GRILLE SUPPORT REINFORCEMENT REPLACEMENT (ENCORE)

Fig. 6: Front Grille Support Reinforcement (Encore)
Fig. 6: Front Grille Support Reinforcement (Encore)

Front Grille Support Reinforcement Replacement (Encore)

Front Grille Support Reinforcement Replacement (Encore)

FRONT GRILLE SUPPORT REINFORCEMENT REPLACEMENT (Encore)

Fig. 7: Front Grille Support Reinforcement (Encore)
Fig. 7: Front Grille Support Reinforcement (Encore)

Front Grille Support Reinforcement Replacement (Encore)

Front Grille Support Reinforcement Replacement (Encore)

FRONT BUMPER FASCIA REPLACEMENT (Encore)

Fig. 8: Front Bumper Fascia
Fig. 8: Front Bumper Fascia

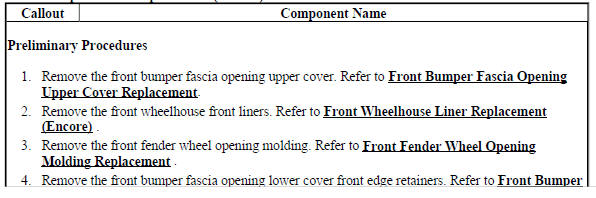

Front Bumper Fascia Replacement (Encore)

Front Bumper Fascia Replacement (Encore)

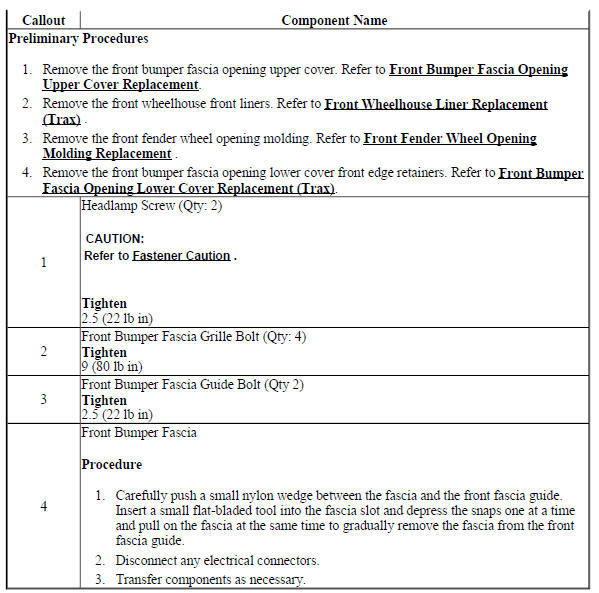

FRONT BUMPER FASCIA REPLACEMENT (ENCORE)

Fig. 9: Front Bumper Fascia
Fig. 9: Front Bumper Fascia

Front Bumper Fascia Replacement (Encore)

Front Bumper Fascia Replacement (Encore)

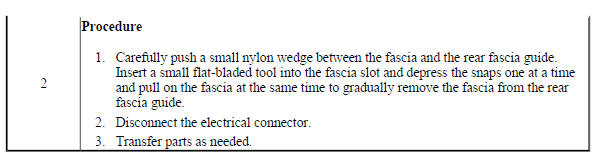

Front Bumper Fascia Replacement (Encore)

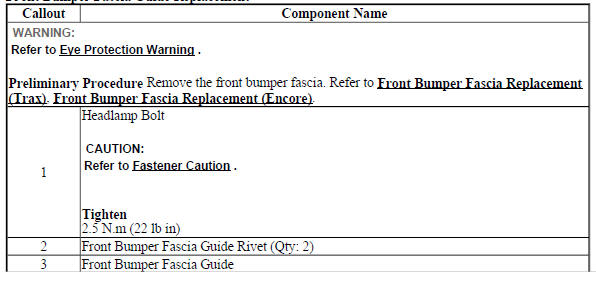

FRONT BUMPER FASCIA GUIDE REPLACEMENT

Fig. 10: Front Bumper Fascia Guide
Fig. 10: Front Bumper Fascia Guide

Front Bumper Fascia Guide Replacement

Front Bumper Fascia Guide Replacement

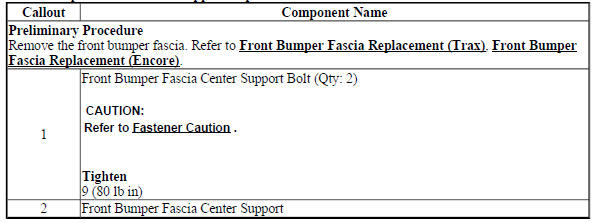

FRONT BUMPER FASCIA CENTER SUPPORT REPLACEMENT

Fig. 11: Front Bumper Fascia Center Support
Fig. 11: Front Bumper Fascia Center Support

Front Bumper Fascia Center Support Replacement

Front Bumper Fascia Center Support Replacement

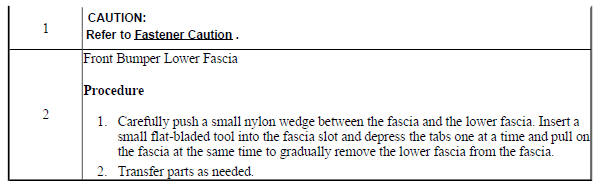

FRONT BUMPER LOWER FASCIA REPLACEMENT (Encore)

Fig. 12: Front Bumper Lower Fascia
Fig. 12: Front Bumper Lower Fascia

Front Bumper Lower Fascia Replacement (Encore)

Front Bumper Lower Fascia Replacement (Encore)

Front Bumper Lower Fascia Replacement (Encore)

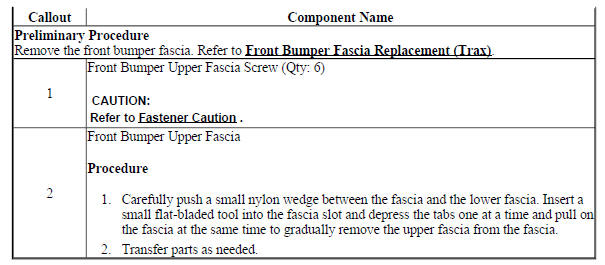

FRONT BUMPER UPPER FASCIA REPLACEMENT (Encore)

Fig. 13: Front Bumper Upper Fascia
Fig. 13: Front Bumper Upper Fascia

Front Bumper Upper Fascia Replacement (Encore)

Front Bumper Upper Fascia Replacement (Encore)

FRONT BUMPER FASCIA OPENING UPPER COVER REPLACEMENT

Fig. 14: Front Bumper Fascia Opening Upper Cover
Fig. 14: Front Bumper Fascia Opening Upper Cover

Front Bumper Fascia Opening Upper Cover Replacement

Front Bumper Fascia Opening Upper Cover Replacement

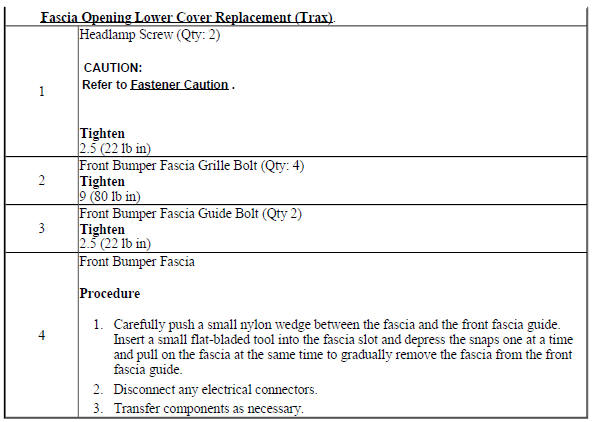

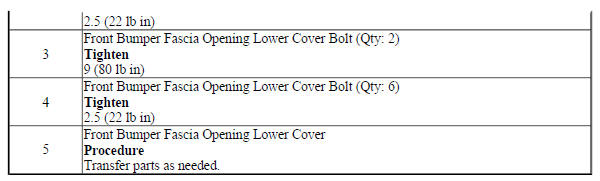

FRONT BUMPER FASCIA OPENING LOWER COVER REPLACEMENT (Encore)

Fig. 15: Front Bumper Fascia Opening Lower Cover
Fig. 15: Front Bumper Fascia Opening Lower Cover

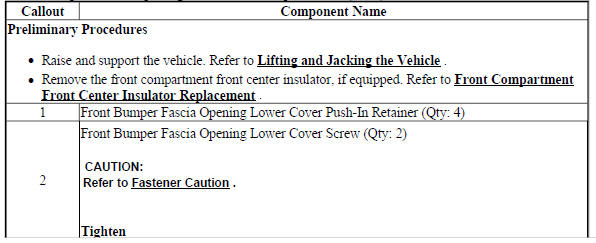

Front Bumper Fascia Opening Lower Cover Replacement (Encore)

Front Bumper Fascia Opening Lower Cover Replacement (Encore)

Front Bumper Fascia Opening Lower Cover Replacement (Encore)

FRONT BUMPER FASCIA BRACKET REPLACEMENT

Fig. 16: Front Bumper Fascia Bracket
Fig. 16: Front Bumper Fascia Bracket

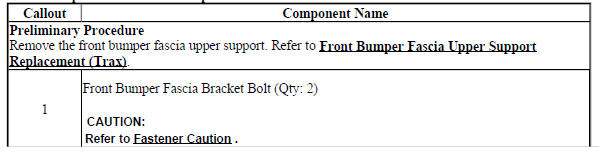

Front Bumper Fascia Bracket Replacement

Front Bumper Fascia Bracket Replacement

Front Bumper Fascia Bracket Replacement

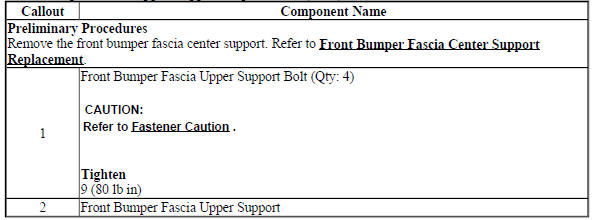

FRONT BUMPER FASCIA UPPER SUPPORT REPLACEMENT (Encore)

Fig. 17: Front Bumper Fascia Upper Support
Fig. 17: Front Bumper Fascia Upper Support

Front Bumper Fascia Upper Support Replacement (Encore)

Front Bumper Fascia Upper Support Replacement (Encore)

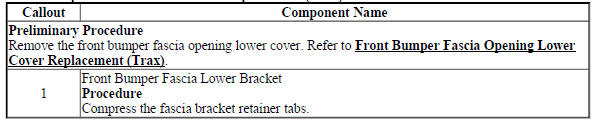

FRONT BUMPER FASCIA LOWER BRACKET REPLACEMENT (Encore)

Fig. 18: Front Bumper Fascia Lower Bracket
Fig. 18: Front Bumper Fascia Lower Bracket

Front Bumper Fascia Lower Bracket Replacement (Encore)

Front Bumper Fascia Lower Bracket Replacement (Encore)

FRONT BUMPER FASCIA AIR DEFLECTOR REPLACEMENT (ENCORE)

Fig. 19: Front Bumper Fascia Air Deflector
Fig. 19: Front Bumper Fascia Air Deflector

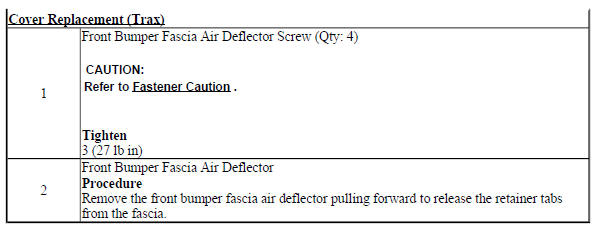

Front Bumper Fascia Air Deflector Replacement (Encore)

Front Bumper Fascia Air Deflector Replacement (Encore)

Front Bumper Fascia Air Deflector Replacement (Encore)

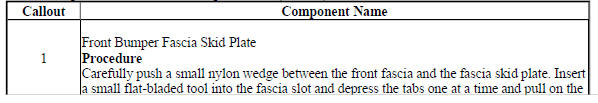

FRONT BUMPER FASCIA SKID PLATE REPLACEMENT (ENCORE)

Fig. 20: Front Bumper Fascia Skid Plate
Fig. 20: Front Bumper Fascia Skid Plate

Front Bumper Fascia Skid Plate Replacement (Encore)

Front Bumper Fascia Skid Plate Replacement (Encore)

Front Bumper Fascia Skid Plate Replacement (Encore)

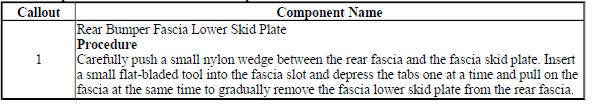

REAR BUMPER FASCIA LOWER SKID PLATE REPLACEMENT

Fig. 21: Rear Bumper Fascia Lower Skid Plate
Fig. 21: Rear Bumper Fascia Lower Skid Plate

Rear Bumper Fascia Lower Skid Plate Replacement

Rear Bumper Fascia Lower Skid Plate Replacement

REAR BUMPER FASCIA REPLACEMENT

Fig. 22: Rear Bumper Fascia
Fig. 22: Rear Bumper Fascia

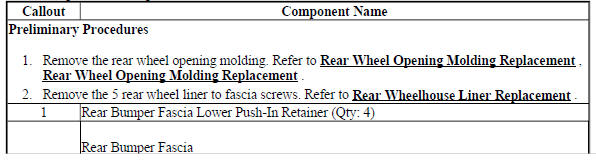

Rear Bumper Fascia Replacement

Rear Bumper Fascia Replacement

Rear Bumper Fascia Replacement

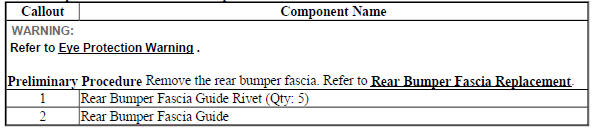

REAR BUMPER FASCIA OUTER GUIDE REPLACEMENT

Fig. 23: Rear Bumper Fascia Outer Guide
Fig. 23: Rear Bumper Fascia Outer Guide

Rear Bumper Fascia Outer Guide Replacement

Rear Bumper Fascia Outer Guide Replacement

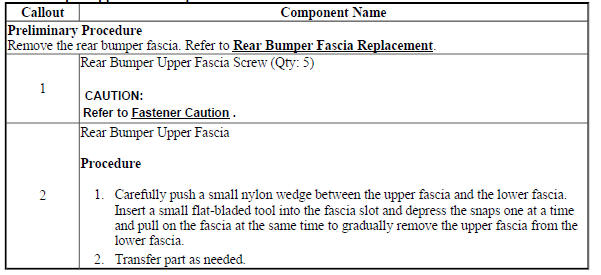

REAR BUMPER UPPER FASCIA REPLACEMENT

Fig. 24: Rear Bumper Upper Fascia
Fig. 24: Rear Bumper Upper Fascia

Rear Bumper Upper Fascia Replacement

Rear Bumper Upper Fascia Replacement

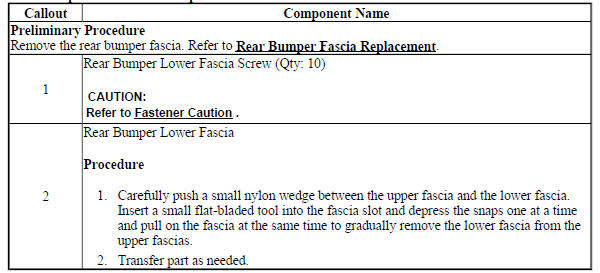

REAR BUMPER LOWER FASCIA REPLACEMENT

Fig. 25: Rear Bumper Lower Fascia
Fig. 25: Rear Bumper Lower Fascia

Rear Bumper Lower Fascia Replacement

Rear Bumper Lower Fascia Replacement

REAR BUMPER GUARD REPLACEMENT (Encore)

Fig. 26: Rear Bumper Guard
Fig. 26: Rear Bumper Guard

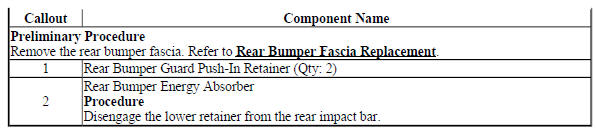

Rear Bumper Guard Replacement (Encore)

Rear Bumper Guard Replacement (Encore)

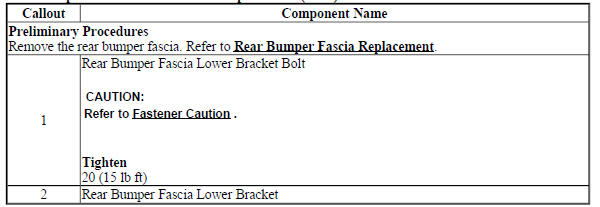

REAR BUMPER FASCIA LOWER BRACKET REPLACEMENT (Encore)

Fig. 27: Rear Bumper Fascia Lower Bracket
Fig. 27: Rear Bumper Fascia Lower Bracket

Rear Bumper Fascia Lower Bracket Replacement (Encore)

Rear Bumper Fascia Lower Bracket Replacement (Encore)

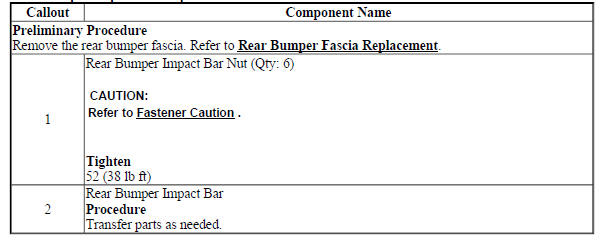

REAR BUMPER IMPACT BAR REPLACEMENT

Fig. 28: Rear Bumper Impact Bar
Fig. 28: Rear Bumper Impact Bar

Rear Bumper Impact Bar Replacement

Rear Bumper Impact Bar Replacement

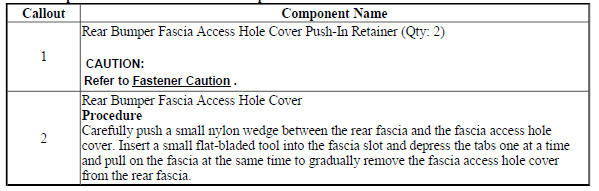

REAR BUMPER FASCIA ACCESS HOLE COVER REPLACEMENT

Fig. 29: Rear Bumper Fascia Access Hole Cover
Fig. 29: Rear Bumper Fascia Access Hole Cover

Rear Bumper Fascia Access Hole Cover Replacement

Rear Bumper Fascia Access Hole Cover Replacement

REAR BUMPER FASCIA REFLECTOR REPLACEMENT

Fig. 30: Rear Bumper Fascia Reflector
Fig. 30: Rear Bumper Fascia Reflector

Rear Bumper Fascia Reflector Replacement

Rear Bumper Fascia Reflector Replacement
