Buick Encore 2012-2019 Service Manual / Engine / Engine Mechanical - 1.4L / Specifications

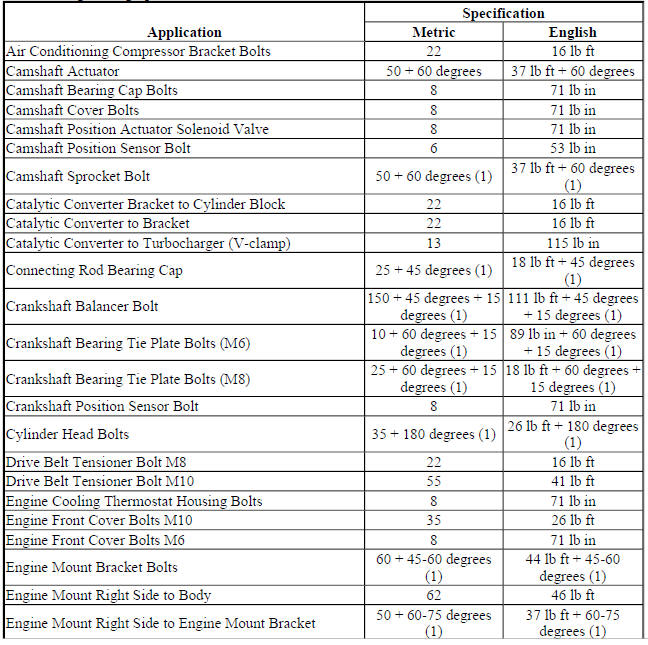

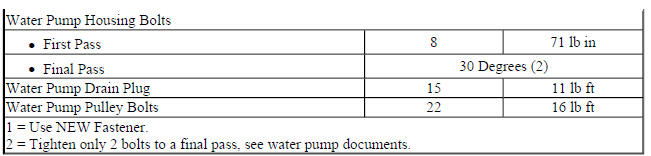

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

Fastener Tightening Specifications

Fastener Tightening Specifications

Fastener Tightening Specifications

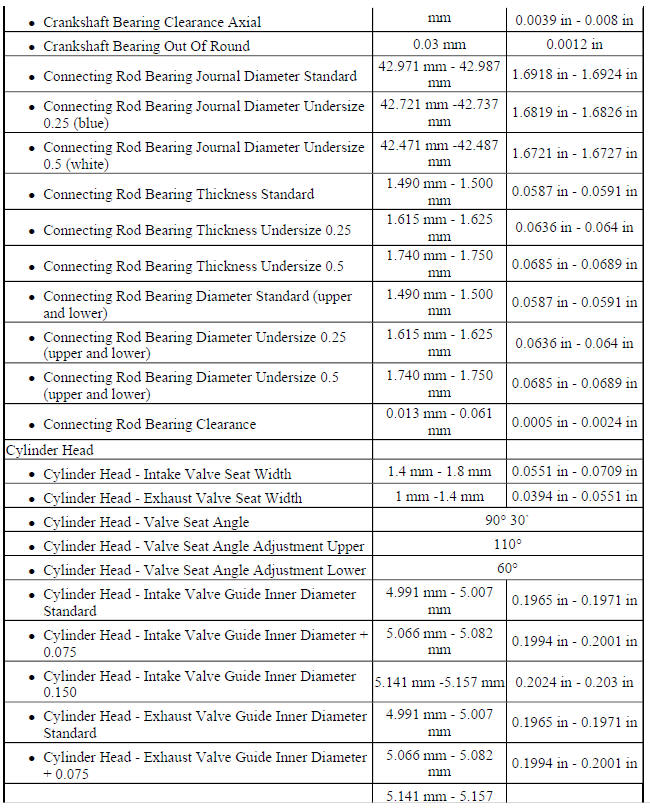

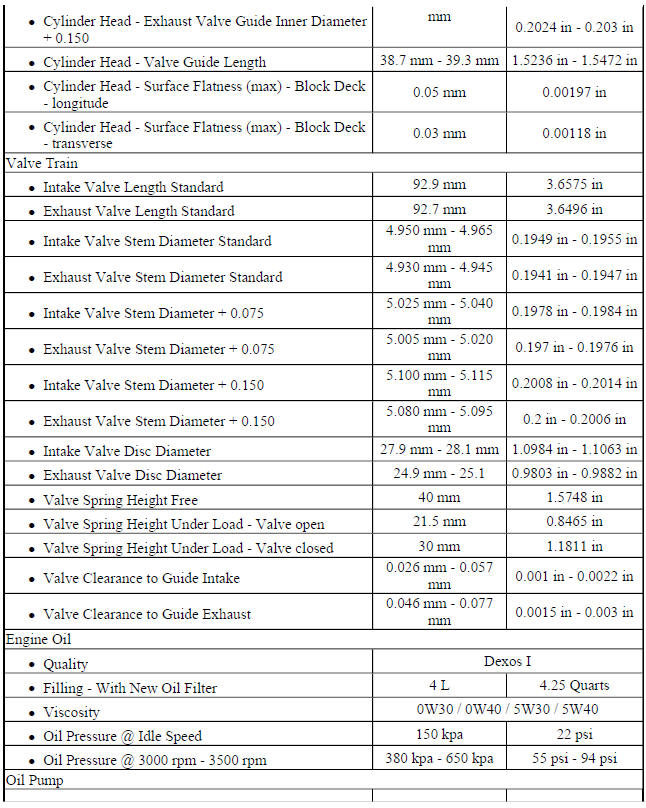

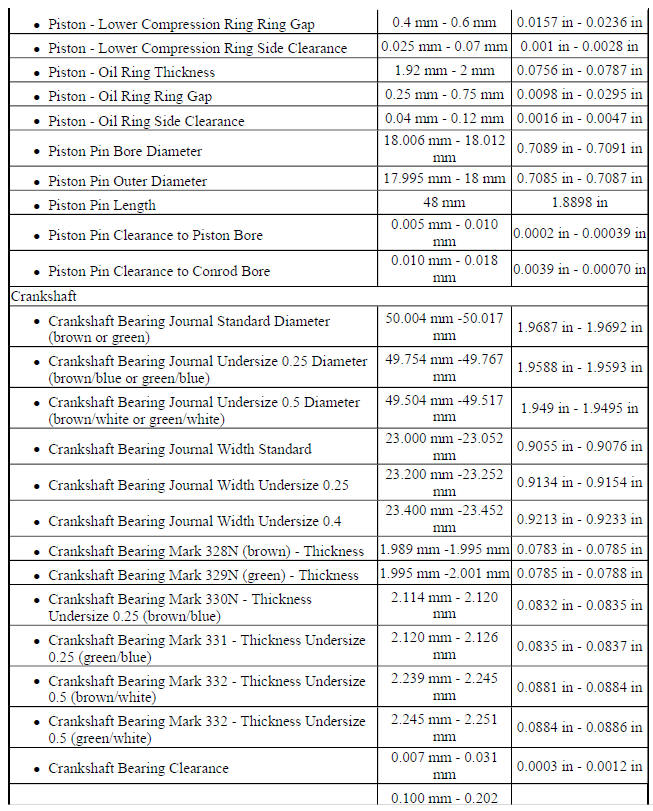

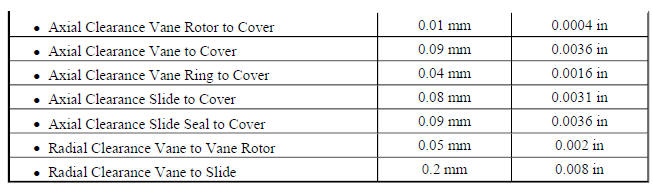

ENGINE MECHANICAL SPECIFICATIONS

Engine Mechanical Specifications

Engine Mechanical Specifications

Engine Mechanical Specifications

Engine Mechanical Specifications

Engine Mechanical Specifications

Engine Mechanical Specifications

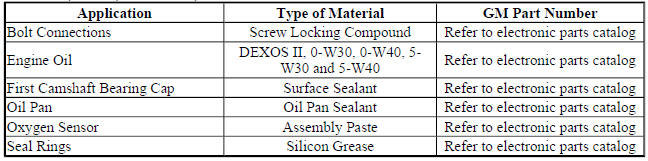

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Adhesives, Fluids, Lubricants, and Sealers

Adhesives, Fluids, Lubricants, and Sealers

COMPONENT LOCATOR

DISASSEMBLED VIEWS

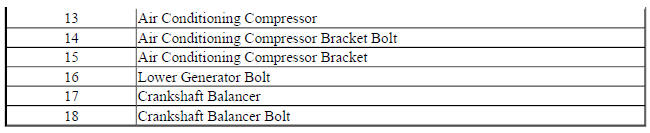

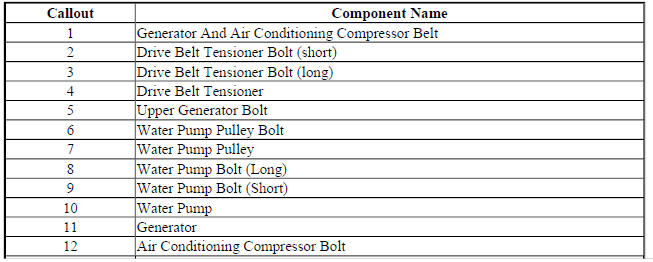

Accessory Drive Components

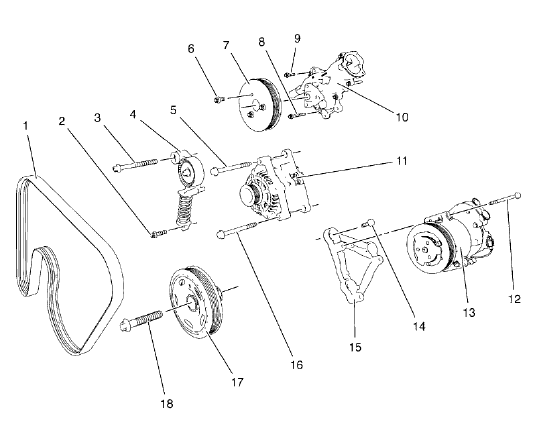

Fig. 1: Locating Accessory Drive Components
Fig. 1: Locating Accessory Drive Components

Accessory Drive Components

Accessory Drive Components

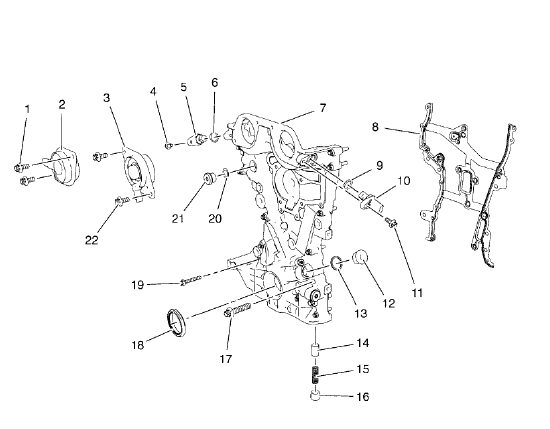

Engine Front Cover And Oil Pump Assembly (1 of 2)

Fig. 2: Locating Engine Front Cover And Oil Pump Assembly Components (1 Of 2)
Fig. 2: Locating Engine Front Cover And Oil Pump Assembly Components (1 Of 2)

Engine Front Cover And Oil Pump Assembly (1 of 2)

Engine Front Cover And Oil Pump Assembly (1 of 2)

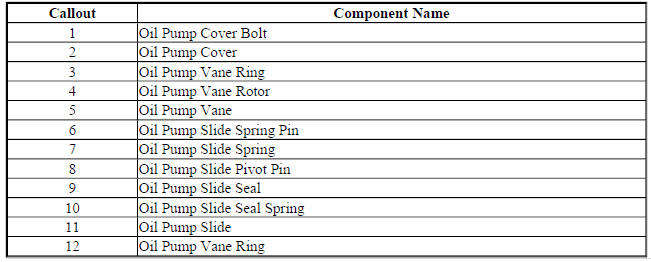

Engine Front Cover And Oil Pump Assembly (2 of 2)

Fig. 3: Locating Engine Front Cover And Oil Pump Assembly Components (2 Of 2)
Fig. 3: Locating Engine Front Cover And Oil Pump Assembly Components (2 Of 2)

Engine Front Cover And Oil Pump Assembly (2 of 2)

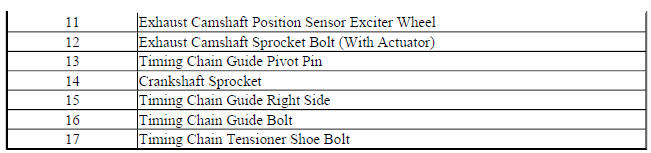

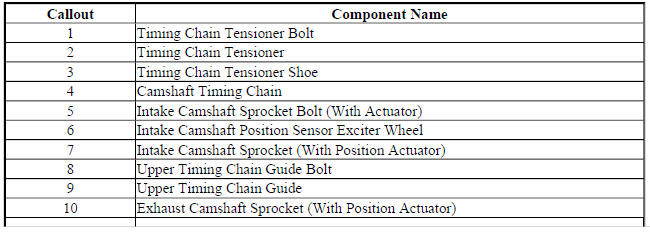

Timing Chain Components

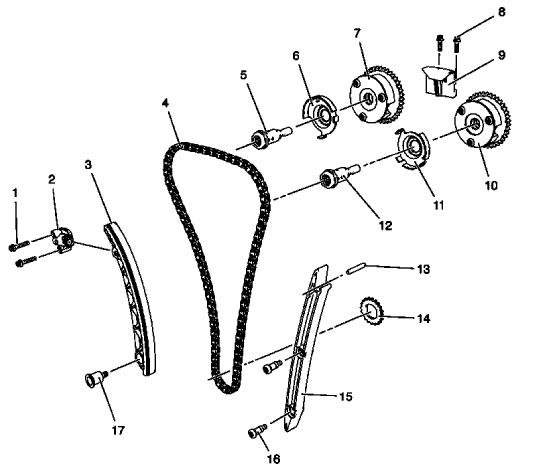

Fig. 4: Timing Chain Components
Fig. 4: Timing Chain Components

Timing Chain Components

Timing Chain Components

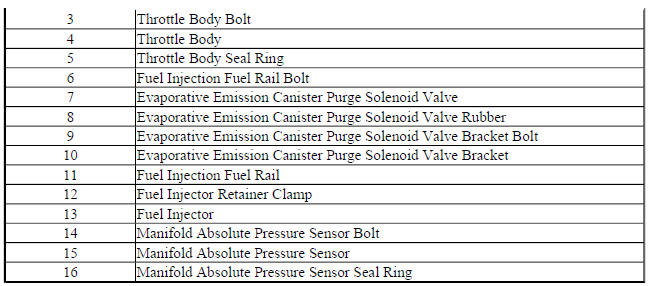

Intake Manifold Assembly- 1.4L LDD

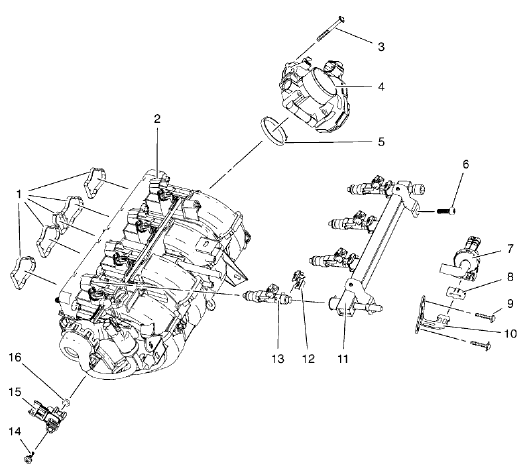

Fig. 5: Locating Intake Manifold Assembly Components - 1.4L LDD
Fig. 5: Locating Intake Manifold Assembly Components - 1.4L LDD

Intake Manifold Assembly- 1.4L LDD

Intake Manifold Assembly- 1.4L LDD

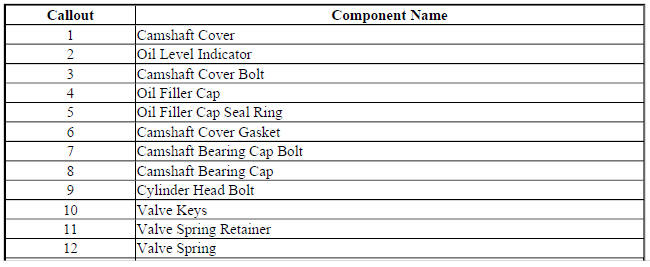

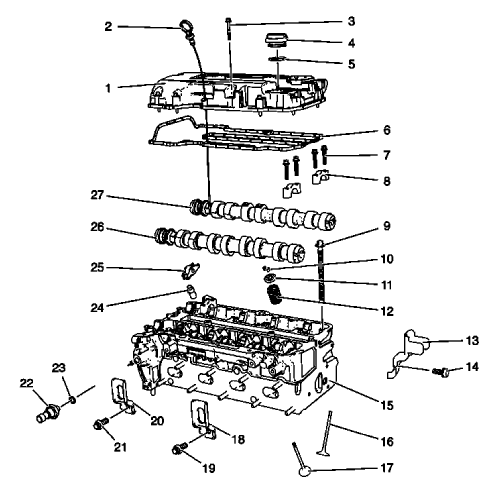

Cylinder Head Assembly

Fig. 6: Identifying Cylinder Head Assembly Components
Fig. 6: Identifying Cylinder Head Assembly Components

Cylinder Head Assembly

Cylinder Head Assembly

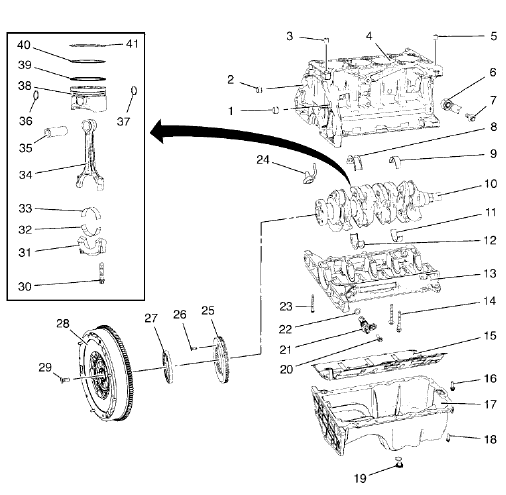

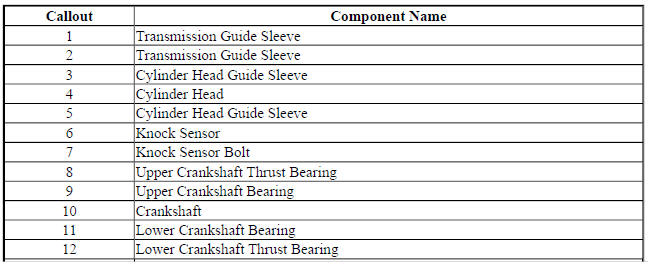

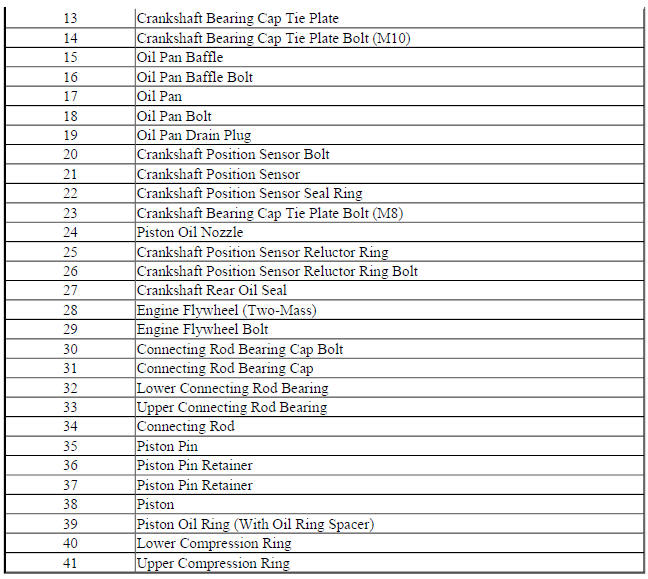

Engine Block Assembly- 1.4L LDD

Fig. 7: Identifying Engine Block Assembly Components - 1.4L LDD
Fig. 7: Identifying Engine Block Assembly Components - 1.4L LDD

Engine Block Assembly- 1.4L LDD

Engine Block Assembly- 1.4L LDD

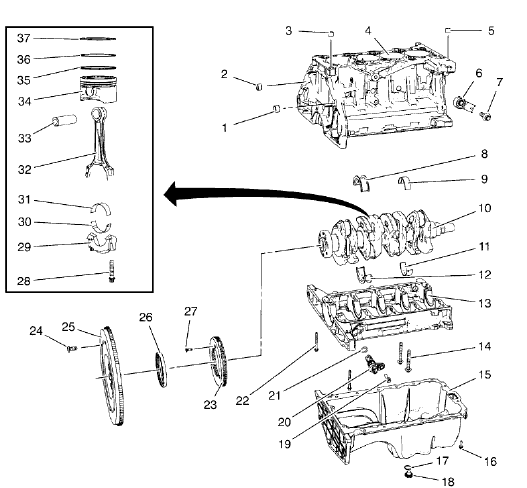

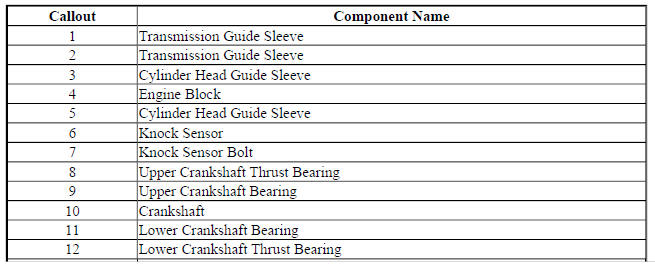

Engine Block Assembly- 1.4L LUH and LUJ

Fig. 8: Identifying Engine Block Assembly Components - 1.4L LUH and LUJ
Fig. 8: Identifying Engine Block Assembly Components - 1.4L LUH and LUJ

Engine Block Assembly- 1.4L LUH and LUJ

Engine Block Assembly- 1.4L LUH and LUJ

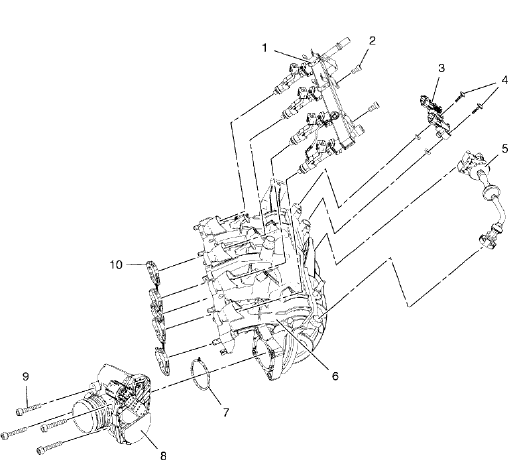

Intake Manifold Assembly- 1.4L LUH and LUJ

Fig. 9: Intake Manifold Assembly - 1.4L LUH and LUJ
Fig. 9: Intake Manifold Assembly - 1.4L LUH and LUJ

Intake Manifold Assembly- 1.4L LUH and LUJ

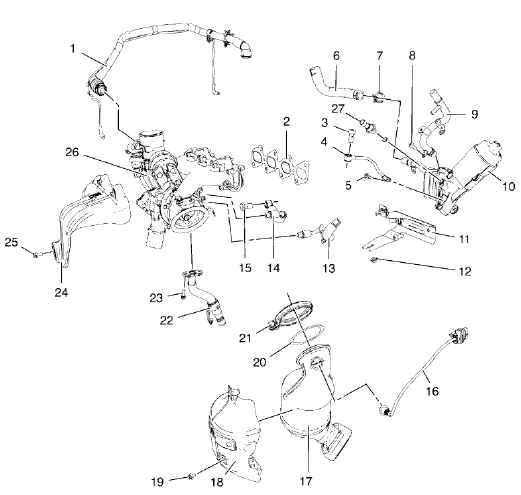

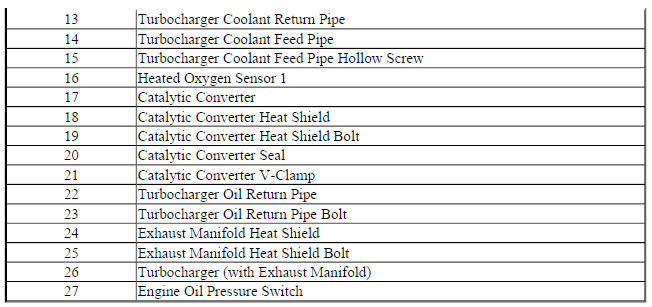

Exhaust Side- 1.4L LUH and LUJ

Fig. 10: Identifying Exhaust Side Components - 1.4L LUH and LUJ
Fig. 10: Identifying Exhaust Side Components - 1.4L LUH and LUJ

Exhaust Side- 1.4L LUH and LUJ

Exhaust Side- 1.4L LUH and LUJ

ENGINE IDENTIFICATION

Engine Number

Fig. 11: Locating Engine Number
Fig. 11: Locating Engine Number

Courtesy of GENERAL MOTORS COMPANY

NOTE: The engine identification number must be stamped to the cylinder block in case of engine replacement.

The engine number is stamped to the engine block (1).
