Buick Encore: Specifications

FASTENER TIGHTENING SPECIFICATIONS (ON VEHICLE)

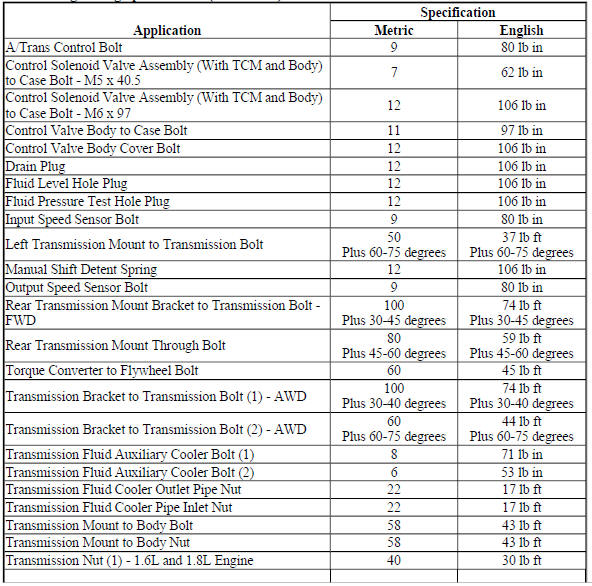

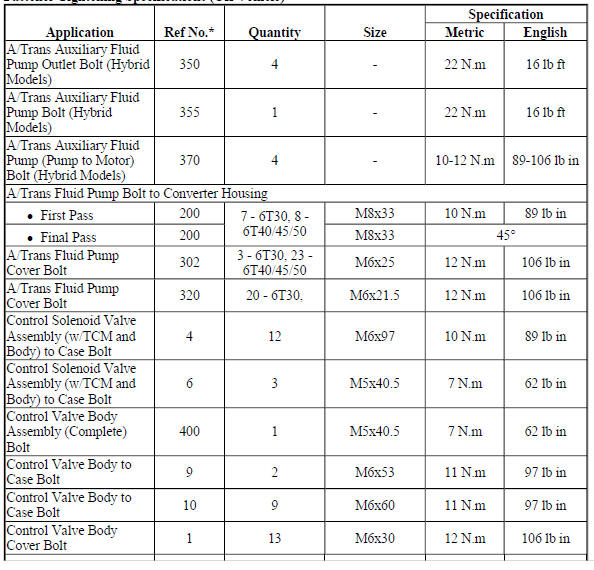

Fastener Tightening Specifications (On Vehicle)

Fastener Tightening Specifications (On Vehicle)

Fastener Tightening Specifications (On Vehicle)

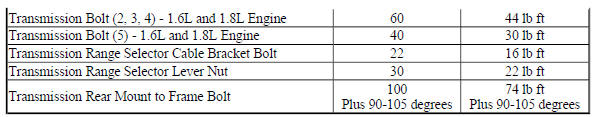

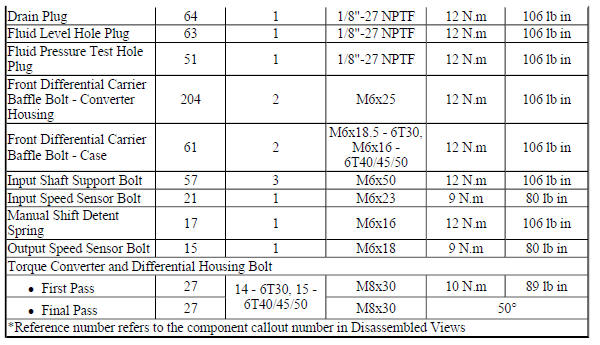

FASTENER TIGHTENING SPECIFICATIONS (OFF VEHICLE)

Fastener Tightening Specifications (Off Vehicle)

Fastener Tightening Specifications (Off Vehicle)

Fastener Tightening Specifications (Off Vehicle)

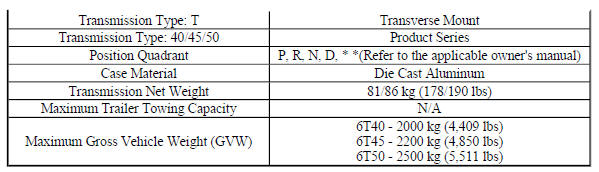

TRANSMISSION GENERAL SPECIFICATIONS(6T40)

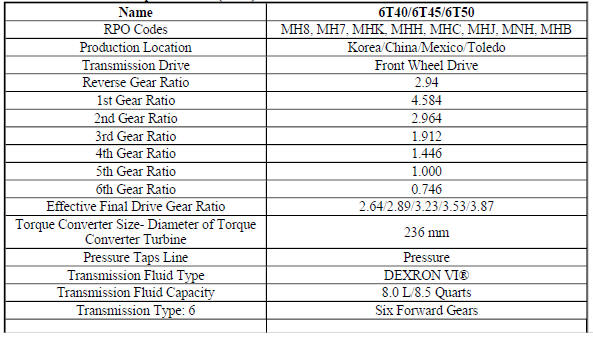

Transmission General Specifications(6T40)

Transmission General Specifications(6T40)

Transmission General Specifications(6T40)

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Adhesives, Fluids, Lubricants, and Sealers

Adhesives, Fluids, Lubricants, and Sealers

FLUID CAPACITY SPECIFICATIONS (6T40)

Fluid Capacity Specifications (6T40)

Fluid Capacity Specifications (6T40)

FLUID PUMP SELECTIVE SPECIFICATIONS

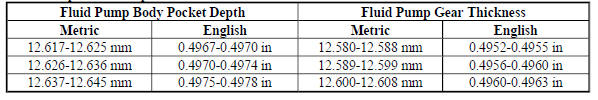

Fluid Pump Selective Specifications

Fluid Pump Selective Specifications

RANGE REFERENCE

Range Reference

Range Reference

Range Reference

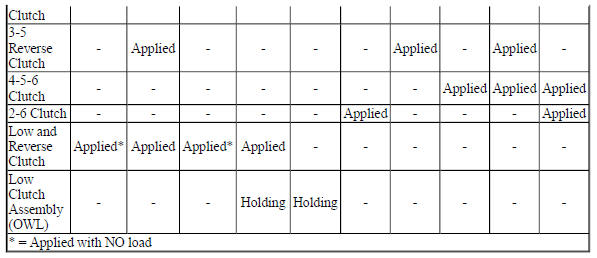

SHIFT SOLENOID VALVE STATE AND GEAR RATIO

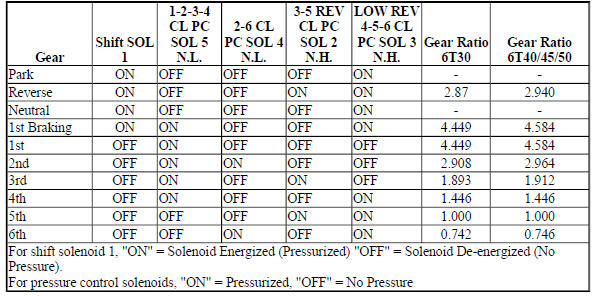

Shift Solenoid Valve State and Gear Ratio

Shift Solenoid Valve State and Gear Ratio

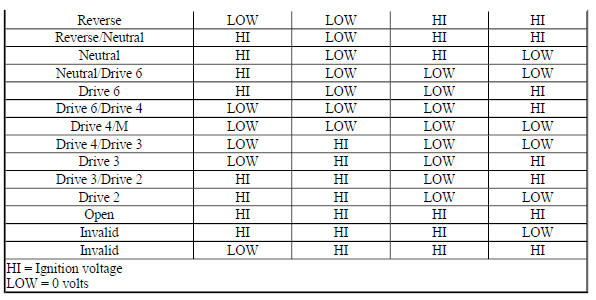

TRANSMISSION INTERNAL MODE SWITCH LOGIC

Transmission Internal Mode Switch Logic

Transmission Internal Mode Switch Logic

Transmission Internal Mode Switch Logic

SOLENOID VALVE PRESSURE (GEN 2)

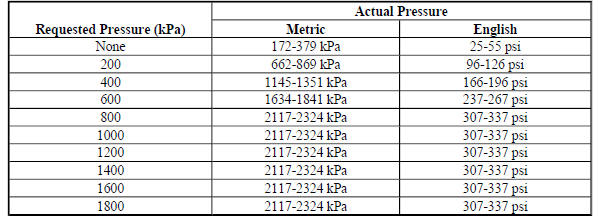

Line PC Solenoid Valve Pressure

Line PC Solenoid Valve Pressure

TRANSMISSION PARTS KIT SPECIFICATIONS

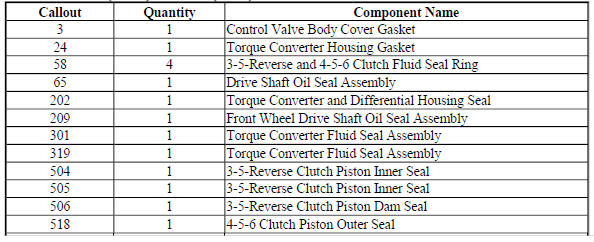

A/Trans Seal Kit (Gen 1& 2) 24251028

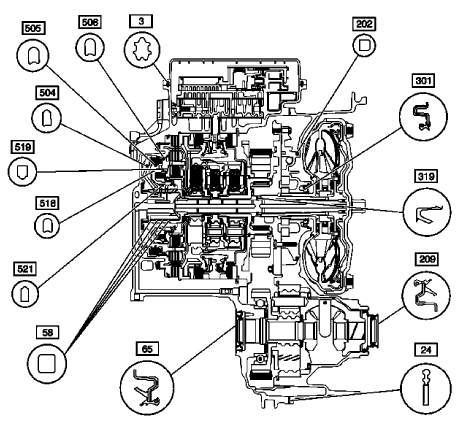

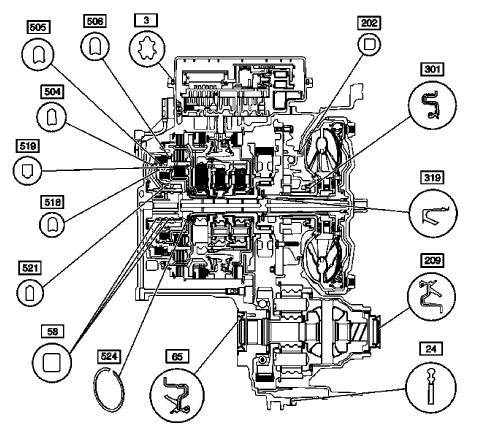

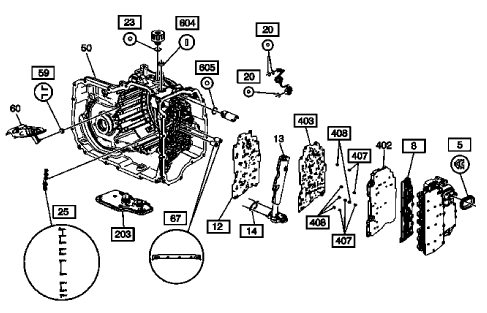

Fig. 1: Automatic Trans Seal Kit (Gen 1 And 2) 24251028
Fig. 1: Automatic Trans Seal Kit (Gen 1 And 2) 24251028

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

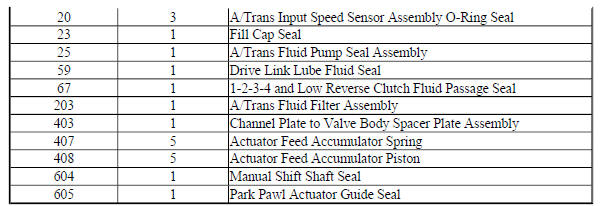

A/Trans Seal Kit (Gen 1& 2) 24251028

A/Trans Seal Kit (Gen 1& 2) 24251028

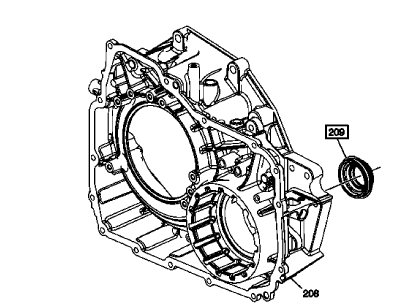

Front Wheel Seal Kit (Gen 1& 2) 19258415

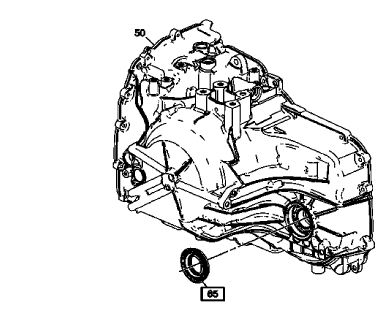

Fig. 2: Front Wheel Seal Kit (Gen 1 And 2) 19258415
Fig. 2: Front Wheel Seal Kit (Gen 1 And 2) 19258415

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

Front Wheel Seal Kit (Gen 1& 2) 19258415

Front Wheel Seal Kit (Gen 1& 2) 19258415

Front Wheel Seal Kit (Gen 1& 2) 19258416

Fig. 3: Front Wheel Seal Kit (Gen 1 And 2) 19258416
Fig. 3: Front Wheel Seal Kit (Gen 1 And 2) 19258416

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

Front Wheel Seal Kit (Gen 1& 2) 19258416

Front Wheel Seal Kit (Gen 1& 2) 19258416

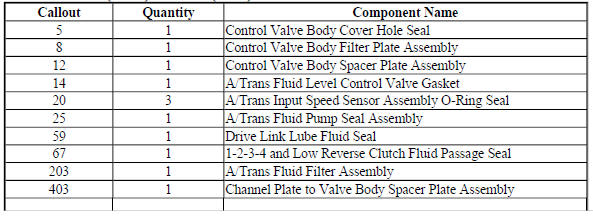

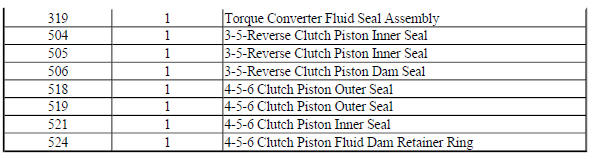

A/Trans Seal Kit (Gen 1) 24251353 (1 of 2)

Fig. 4: Automatic Trans Seal Kit (Gen 1) 24251353 (1 Of 2)
Fig. 4: Automatic Trans Seal Kit (Gen 1) 24251353 (1 Of 2)

A/Trans Seal Kit (Gen 1) 24251353 (1 of 2)

A/Trans Seal Kit (Gen 1) 24251353 (1 of 2)

A/Trans Seal Kit (Gen 1) 24251353 (1 of 2)

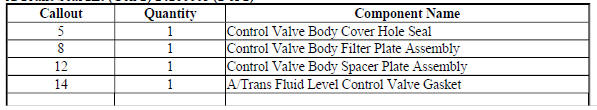

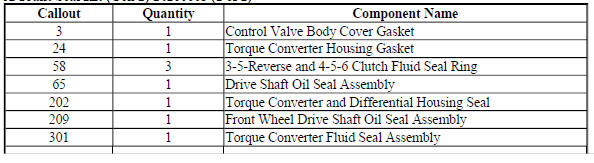

A/Trans Seal Kit (Gen 1) 24251353 (2 of 2)

Fig. 5: Automatic Trans Seal Kit (Gen 1) 24251353 (2 Of 2)
Fig. 5: Automatic Trans Seal Kit (Gen 1) 24251353 (2 Of 2)

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

A/Trans Seal Kit (Gen 1) 24251353 (2 of 2)

A/Trans Seal Kit (Gen 1) 24251353 (2 of 2)

A/Trans Seal Kit (Gen 1) 24251353 (2 of 2)

A/Trans Seal Kit (Gen 2) 24260603 (1 of 2)

Fig. 6: Automatic Trans Seal Kit (Gen 2) 24260603 (1 Of 2)
Fig. 6: Automatic Trans Seal Kit (Gen 2) 24260603 (1 Of 2)

A/Trans Seal Kit (Gen 2) 24260603 (1 of 2)

A/Trans Seal Kit (Gen 2) 24260603 (1 of 2)

A/Trans Seal Kit (Gen 2) 24260603 (1 of 2)

A/Trans Seal Kit (Gen 2) 24260603 (2 of 2)

Fig. 7: Automatic Trans Seal Kit (Gen 2) 24260603 (2 Of 2)
Fig. 7: Automatic Trans Seal Kit (Gen 2) 24260603 (2 Of 2)

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

A/Trans Seal Kit (Gen 2) 24260603 (2 of 2)A/Trans Seal Kit (Gen 2) 24260603 (2 of 2)

A/Trans Seal Kit (Gen 2) 24260603 (2 of 2)

Transmission Kit (Gen 1) 24260701

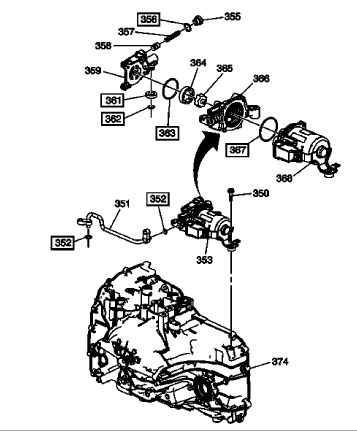

Fig. 8: Transmission Kit (Gen 1) 24260701
Fig. 8: Transmission Kit (Gen 1) 24260701

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

Transmission Kit (Gen 1) 24260701

Transmission Kit (Gen 1) 24260701

Transmission Kit (Gen 1) 24260701

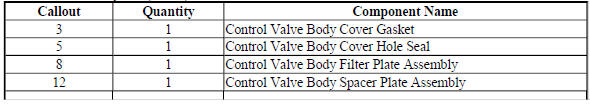

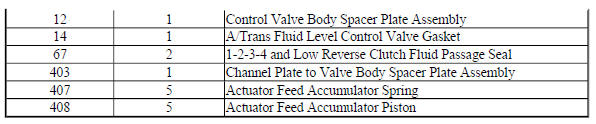

Control Valve Body Kit (Gen 1) 24248473

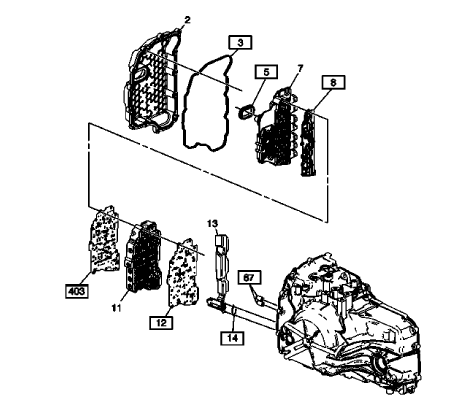

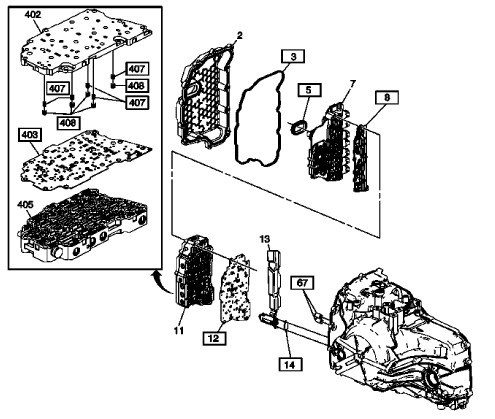

Fig. 9: Control Valve Body Kit (Gen 1) 24248473
Fig. 9: Control Valve Body Kit (Gen 1) 24248473

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

Control Valve Body Kit (Gen 1) 24248473

Control Valve Body Kit (Gen 1) 24248473

Control Valve Body Kit (Gen 1) 24248473

Control Valve Body Kit (Gen 2) 24260702

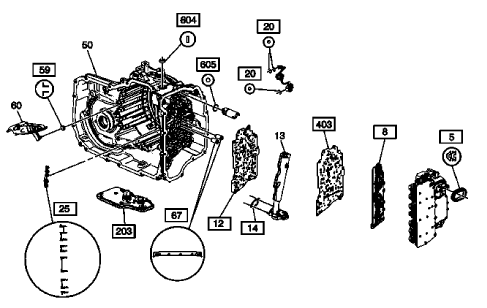

Fig. 10: Control Valve Body Kit (Gen 2) 24260702
Fig. 10: Control Valve Body Kit (Gen 2) 24260702

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

Control Valve Body Kit (Gen 2) 24260702

Control Valve Body Kit (Gen 2) 24260702

Control Valve Body Kit (Gen 2) 24260702

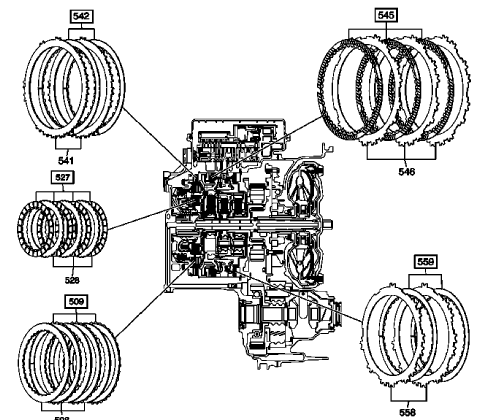

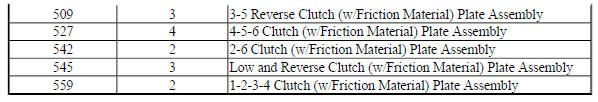

Clutch Plate Package (Gen 1) 24249460

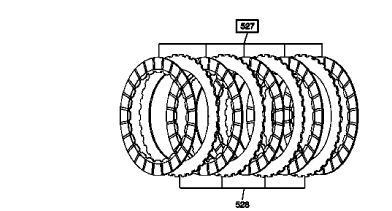

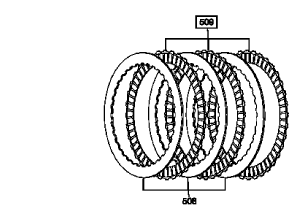

Fig. 11: Clutch Plate Package (Gen 1) 24249460
Fig. 11: Clutch Plate Package (Gen 1) 24249460

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

Clutch Plate Package (Gen 1) 24249460

Clutch Plate Package (Gen 1) 24249460

Clutch Plate Package (Gen 2) 24260695

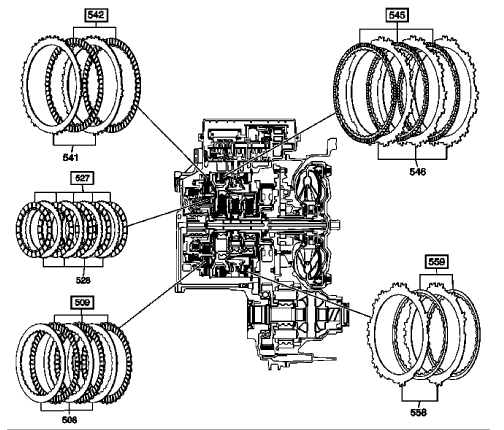

Fig. 12: Clutch Plate Package (Gen 2) 24260695
Fig. 12: Clutch Plate Package (Gen 2) 24260695

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

Clutch Plate Package (Gen 2) 24260695

Clutch Plate Package (Gen 2) 24260695

Clutch Plate Package (Gen 2) 24260695

4-5-6 Plate Assembly (Gen 2) 24260700

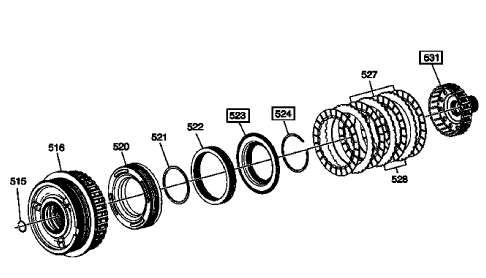

Fig. 13: 4-5-6 Plate Assembly (Gen 2) 24260700
Fig. 13: 4-5-6 Plate Assembly (Gen 2) 24260700

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

4-5-6 Plate Assembly (Gen 2) 24260700

4-5-6 Plate Assembly (Gen 2) 24260700

Low and Reverse Plate Assembly (Gen 2) 24260696

Fig. 14: Low And Reverse Plate Assembly (Gen 2) 24260696
Fig. 14: Low And Reverse Plate Assembly (Gen 2) 24260696

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

Low and Reverse Plate Assembly (Gen 2) 24260696

Low and Reverse Plate Assembly (Gen 2) 24260696

3-5 Reverse Plate Assembly (Gen 2) 24260697

Fig. 15: 3-5 Reverse Plate Assembly (Gen 2) 24260697
Fig. 15: 3-5 Reverse Plate Assembly (Gen 2) 24260697

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

3-5 Reverse Plate Assembly (Gen 2) 24260697

3-5 Reverse Plate Assembly (Gen 2) 24260697

2-6 Plate Assembly (Gen 2) 24260698

Fig. 16: 2-6 Plate Assembly (Gen 2) 24260698
Fig. 16: 2-6 Plate Assembly (Gen 2) 24260698

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

2-6 Plate Assembly (Gen 2) 24260698

2-6 Plate Assembly (Gen 2) 24260698

1-2-3-4 Plate Assembly (Gen 2) 24260699

Fig. 17: 1-2-3-4 Plate Assembly (Gen 2) 24260699
Fig. 17: 1-2-3-4 Plate Assembly (Gen 2) 24260699

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

1-2-3-4 Plate Assembly (Gen 2) 24260699

1-2-3-4 Plate Assembly (Gen 2) 24260699

A/Trans Seal Kit (Gen 2) 24260704

Fig. 18: Automatic Trans Seal Kit (Gen 2) 24260704
Fig. 18: Automatic Trans Seal Kit (Gen 2) 24260704

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

A/Trans Seal Kit (Gen 2) 24260704

A/Trans Seal Kit (Gen 2) 24260704

A/Trans Seal Kit (Gen 2) 24260704

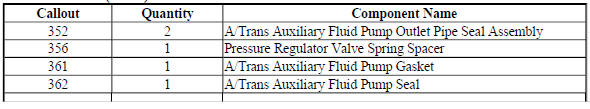

A/Trans Auxiliary Seal Kit (Gen 2) 24260705

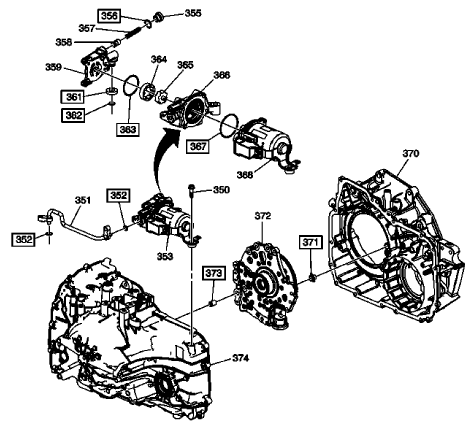

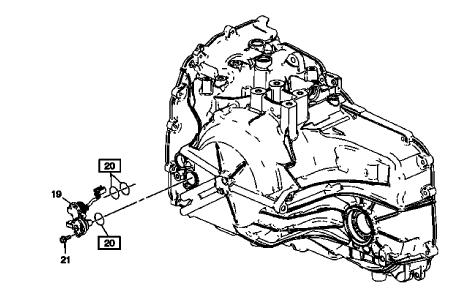

Fig. 19: Automatic Trans Auxiliary Seal Kit (Gen 2) 24260705
Fig. 19: Automatic Trans Auxiliary Seal Kit (Gen 2) 24260705

NOTE: Callouts with boxes around them indicate part is included in the service kit.

Callouts without boxes are shown for relationship purposes only.

A/Trans Auxiliary Seal Kit (Gen 2) 24260705

A/Trans Auxiliary Seal Kit (Gen 2) 24260705

A/Trans Auxiliary Seal Kit (Gen 2) 24260705
